Currency Discrimination Fitness Sorter SB - 2000 Service Manual
55

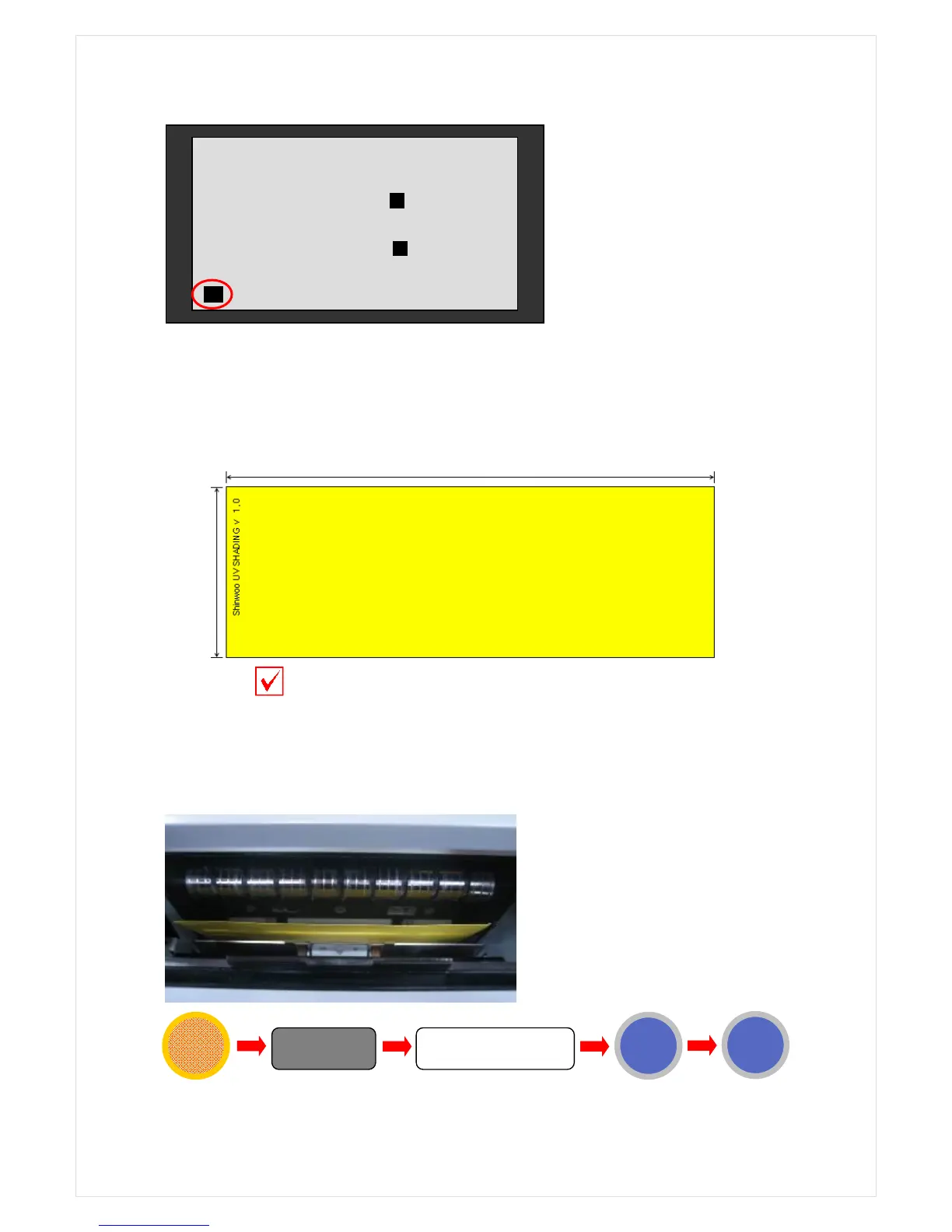

9-3. UV SHADING
<UV SHADING SHEET: SHINWOO UV SHADING V1.0>
Shading sheet provided from SBM should be used.
1. Open the rear cover and clean the sensor.
2. Place the shading sheet over the scanner as shown on the below pictures
3. Close the rear cover.
IMAGE SHADING
MIN
MAX
AVG
UNI
IRB
0.00
0.03
0.00
―
IRW
0.00
1.35
1.01
55%
WHB 0.00 0.03 0.00 ―
WHW 0.83 1.35 1.01 55%
OnTime : IR_T = 91 IR_R = 0
OnTime : WHT_T = 195
NG
165
mm
75 mm
4
MENU
MODE
5
CODE : 55757
SHANDIG NG
 Harness cut off or disconnected to the
Main Board
 Without shading sheet
 Dirty or damaged surface of CIS
 Malfunction of CIS
