Currency Discrimination Fitness Sorter SB - 2000 Service Manual
63
※ The Standard value of CAP SHADING
It is 550 (tolerance ±10).
The shading result is verified with the value of each channel, in case of NG the value is
reversed like the NG display figure.
Even one of 10 channels has more or less than the standard value(550±10), the SHADING is
NG.

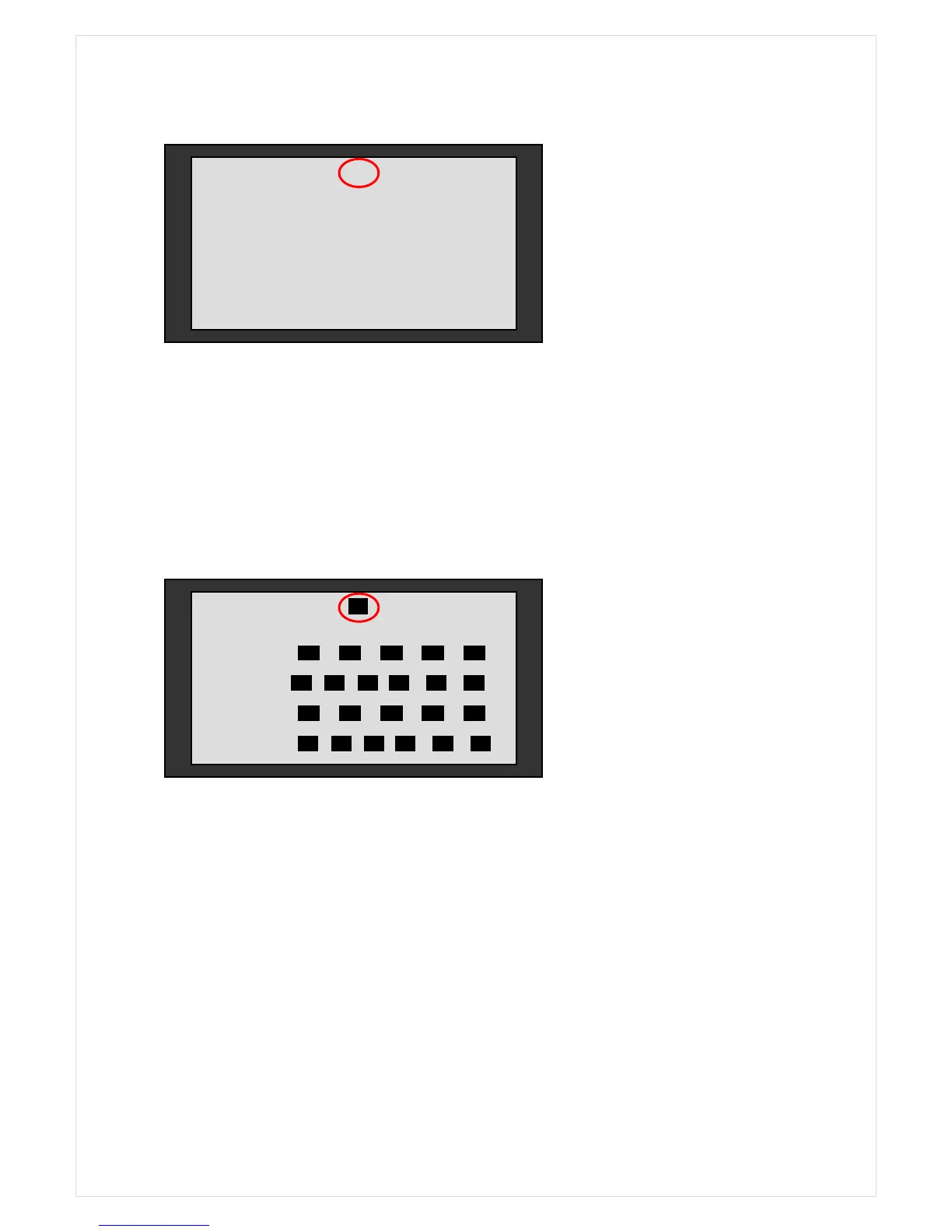

CAP SHADING ― OK
[ 0 ] [ 1 ] [ 2 ] [ 3 ] [ 4 ]
NOTE : 559 559 554 555 558
: 182 167 209 203 174
: 25 23 24 25 23
[ 5 ] [ 6 ] [ 7 ] [ 8 ] [ 9 ]
NOTE : 558 556 556 557 556
: 166 182 172 155 168
: 22 23 21 20 21
Check if CAP SHADING result is
“OK”
After SHADING, open the rear door
and take out the SHADING sheet.
CAP SHADING ― NG
[ 0 ] [ 1 ] [ 2 ] [ 3 ] [ 4 ]
NOTE : 525 525 525 525 525
: 131 148 129 128 118
: 0 0 0: 0: 0: 0
[ 5 ] [ 6 ] [ 7 ] [ 8 ] [ 9 ]
NOTE : 525 525 525 525 525
: 126 131 130 111 167
: 0 0 0: 0: 0: 0
SHANDIG NG
Without shading sheet
Harness cut off or disconnected between CAP AMP and CAP RCV PBA OR CAP AMP and Image
Board
Malfunction of Tape sensor.
To Next Page
