Sensor connections T1 and T2:
T1 (red on display) is the main
temperature that controls the
heating process.
T2 (green on display) is an
additional measurement
that can be used to monitor
and adjust a temperature
dierence, ΔT, in a workpiece
during heating.
USB port for logging purposes
(stored heating data).

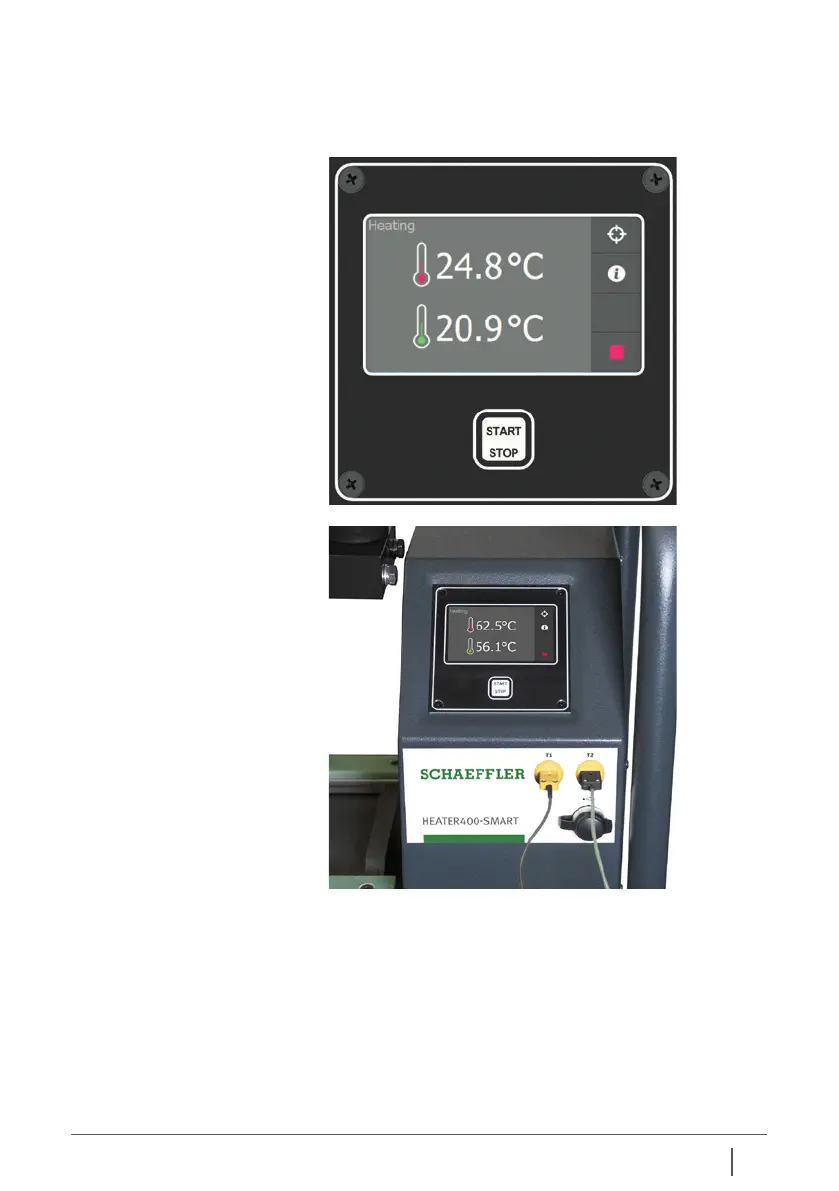

5. Explanation of display, buttons
and connections
Touchscreen:
time or temperature
heating mode
settings
information
red temperature = T1
green temperature = T2
Start /Stop button:
heating / automatic
demagnetisation
