■ Place the induction ledge with the bearing on the poles.
Make sure that the bare-metal side is positioned straight on
the poles.
8.1 Heating a hanging
workpiece
■ Always make sure that the workpiece does not come into
contact with the plastic housing of the heater. When the
heating is finished, follow the instructions in reverse order.
Use heat-resistant gloves to move the heated workpiece.
■ Make sure that the bare-metal sides are suciently coated
with grease to ensure optimal contact and avoid vibration.
■ Swivel arm models: swivel the ledge open (towards you)
until it drops in the safety positioning cam. Slide the
workpiece over the ledge until it is in the middle. Swivel the
ledge back to the pole.

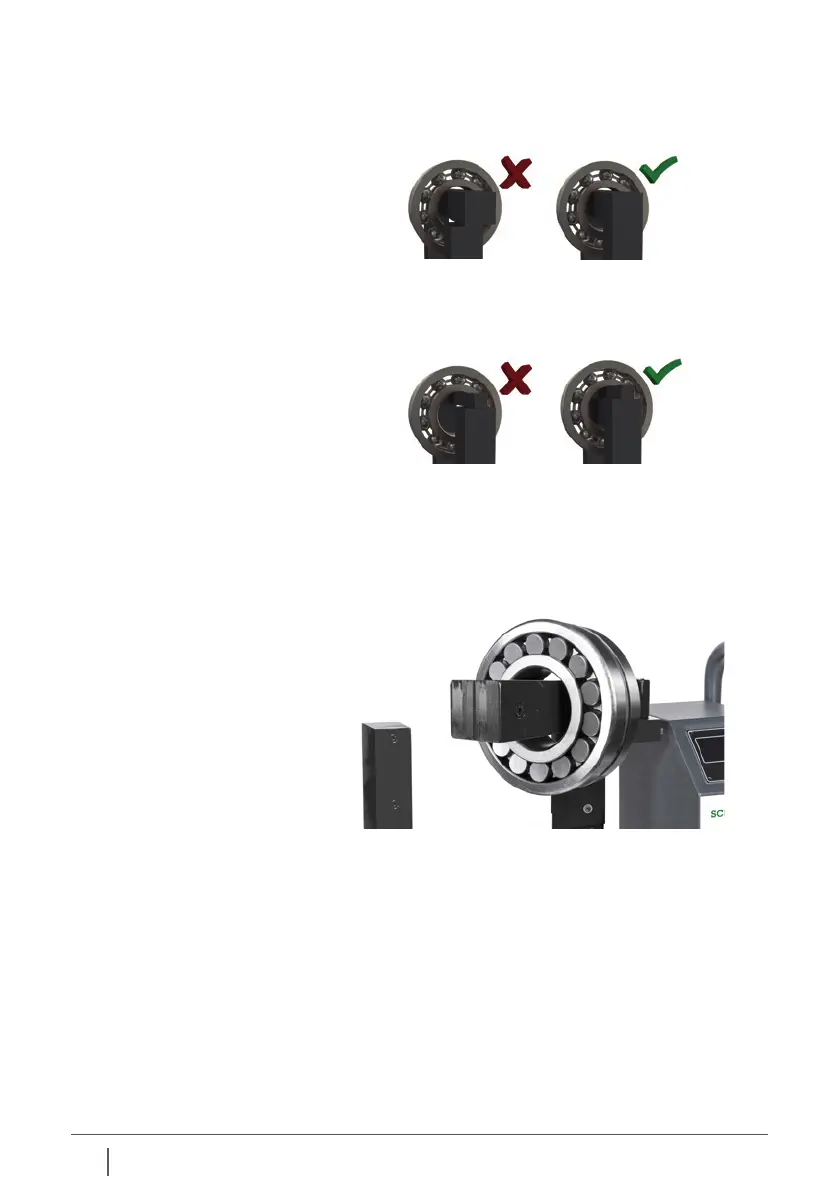

■ Always choose an induction ledge that fills the bore of the
bearing as much as possible. You can even use 2 ledges at the
same time. This promotes optimal, fast and even heating.
