■ This is only possible if the bore of the workpiece is large
enough to fit over the pole.
■ Place the workpiece as centrally as possible around the pole
on the horizontal supports.
■ The workpiece may not be wider than the
horizontal supports.
■ Always choose the largest induction ledge.
■ Make sure that the bare-metal sides are suciently coated
with grease to ensure optimal contact and avoid vibration.

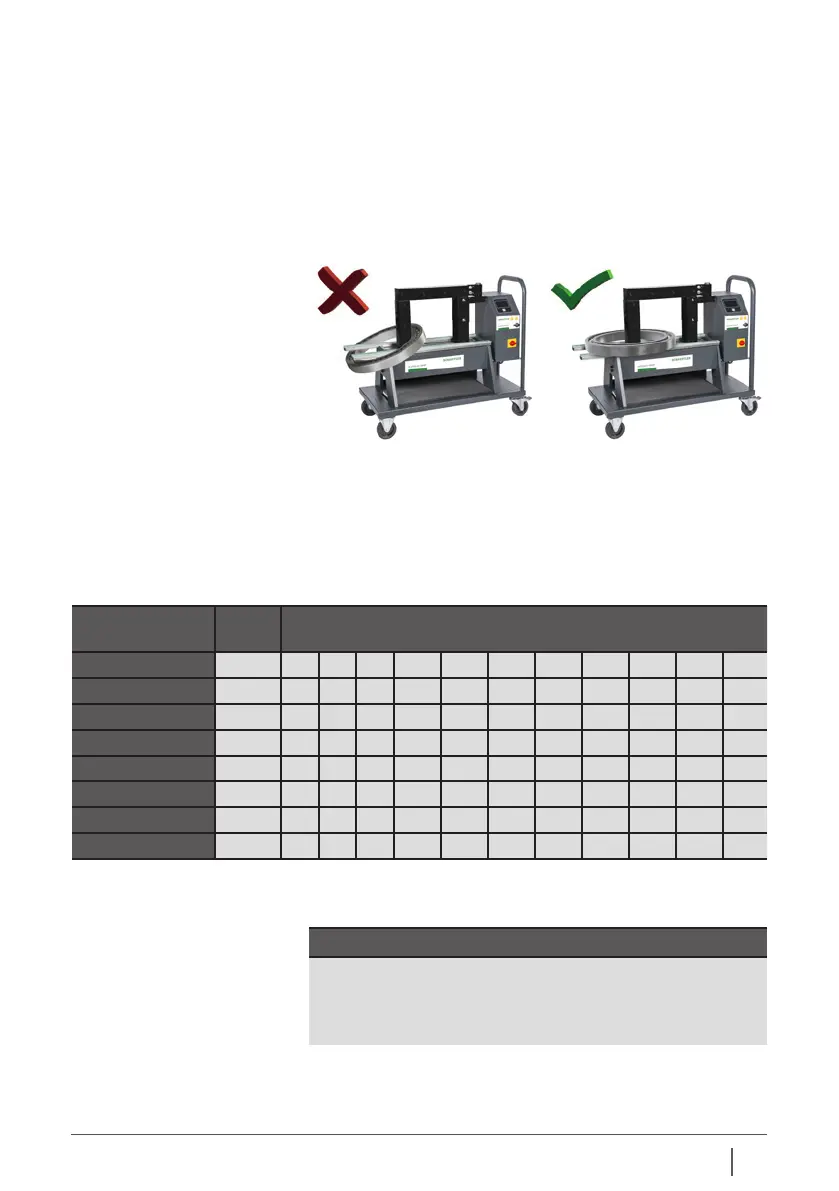

8.2 Heating a horizontal
workpiece
■ Always make sure that the workpiece does not come into
contact with the plastic housing of the heater. When the
heating is finished, follow the instructions in reverse order.
Use heat-resistant gloves to move the heated workpiece.
8.3 Maximum weights for
swivel arm models
■ Keep to these maximum weights and avoid tilting the
heater or damaging the supports, (swivel) ledges or hinge.
Type
On
supports
Size of (swivel) ledges (mm)
7 10 14 20 30 40 50 60 70 80 90
HEATER50-SMART 50 kg 1 kg 2 kg 3 kg 5 kg 10 kg 15 kg - - - - -
HEATER100-SMART 100 kg - 2 kg 3 kg 5 kg 10 kg 15 kg 20 kg - - - -
HEATER150-SMART 150 kg - - - 10 kg 15 kg 25 kg 40 kg 45 kg 50 kg - -
HEATER200-SMART 200 kg - - - 10 kg 15 kg 25 kg 40 kg 45 kg 50 kg - -
HEATER400-SMART 400 kg - - - - - - - 60 kg - 80 kg -
HEATER600-SMART 600 kg - - - - - - - 60 kg - - 80 kg
HEATER800-SMART 800 kg - - - - - - - - - - -
HEATER1600-SMART 1600 kg - - - - - - - - - - -
Table for maximum permitted weights on the horizontal
support and the (swivel) ledges:
CAREFUL!
■ Always handle induction ledges with care. They are
damaged easily when dropped, knocked against
something, etc. Store them immediately after use.
