Control System and Electric System (PX 105)FIT--Wa 1159850Dec./06 en

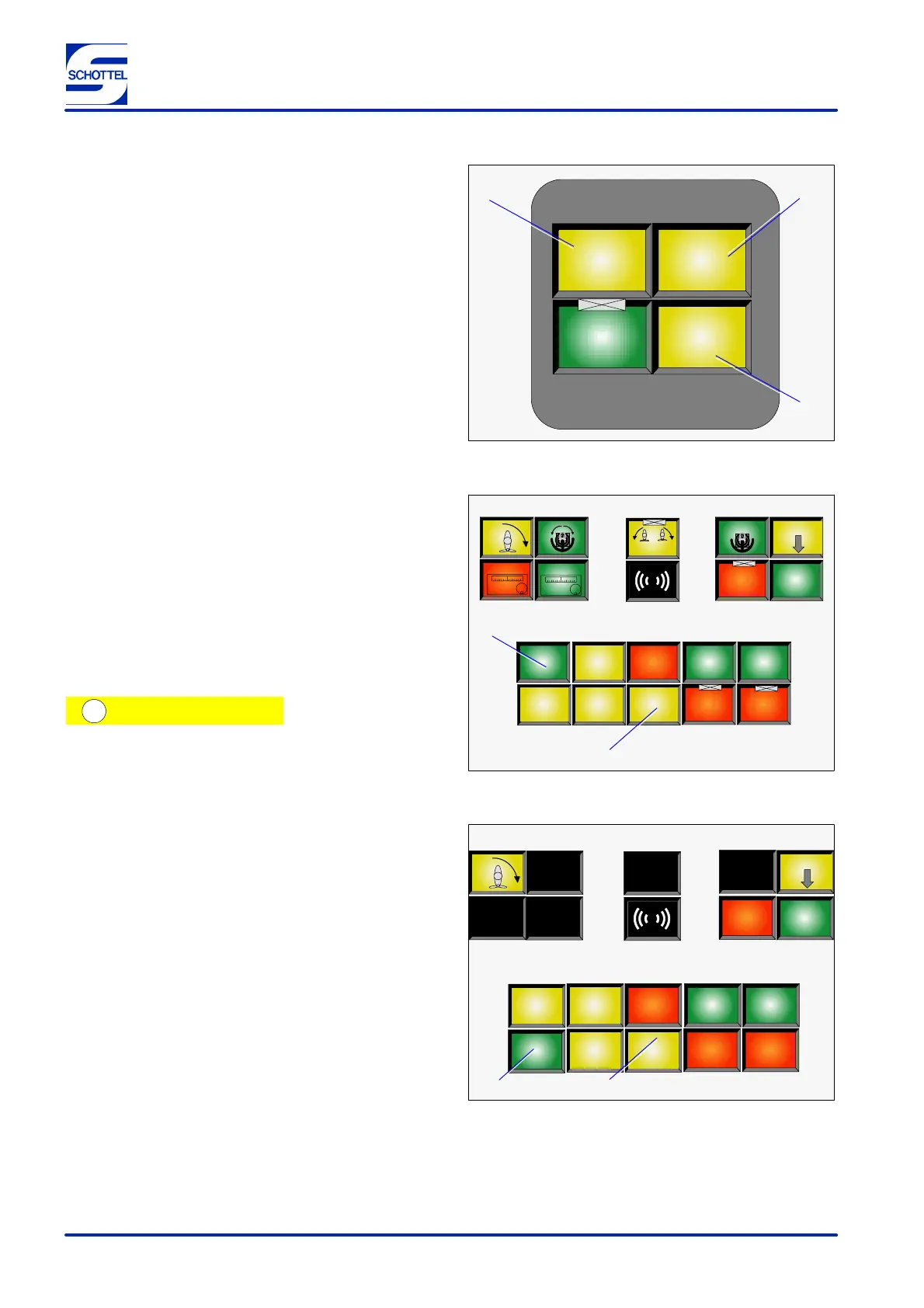

Take--over from local control stand to the
board of m ain control stand
The change from the local control stand to the board of
the main control stand is carried out as follows:
1. Press illuminated push--button ”SEND
COMMAND” (26/2)on the local control stand.
Illuminated push--button ”DESK ON” (27/2) on the
boards flashes.
2. Put the speed lever of the Co--pilot to ”0”.
LOCAL
BRIDGE
IN SERVICE
CONTROL
SEND
COMMAND
ECR DESK
IN SERVICE
DESK SELECTION
1
2
3
Figure 26
3. Press illuminated push--button ” DESK ON” (27/2)
on the main c ontrol stand board.
The signal lamp ”LOCAL CONTROL” (27/1) goes
out.
The signal lamp ”BRIDGE IN SERVICE” (26/1) on
the local control stand shines.
Take--over from local control stand to the
boards of chair control stand PS or STB
INFORMATION
i
The activities are to be carried out analogue to the
take--over from the local control stand to the main
control stand board.
1
RPM
RPM
EMERG
STOP
POWER
MODE
STOP
DRIVE
MOTOR
RESET
FAULT
POWER
LIMIT
DESK
ON
ARM
CHAIRS
ECR
DESK
SEND
TO ECR
LOCAL
CONTROL
FU
RUNNING
START
DRIVE
MOTOR
ON
PILOT
OFF
PILOT
ON
IN SERVICE
2
Figure 27
Take--over from local control stand to the
board of engine room
The change from the local control stand to the board of
the engine room is carried out as follows:
1. Press illuminated push--button ”SEND
COMMAND” (26/2) on the local control stand.
Illuminated push--button ”DESK ON” (28/2) on the
engine room board flashes.
2. Press illuminated push--button ” DESK ON” (28/2)
on the engine room board.
Illuminated push--button ”DESK ON” shines.
The signal lamp ”LOCAL CONTROL” (28/1) goes
out.
The signal lamp ”ECR DESK IN SERVICE” (26/3)
on the local control stand shines.
RPM
EMERG
STOP
POWER
MODE
STOP
DRIVE
MOTOR
RESET
FAULT
POWER
LIMIT
DESK
ON
MAIN
DESK
SEND
TO BRIDGE
LOCAL
CONTROL
FU
RUNNING
START
DRIVE
MOTOR
ARM
CHAIRS
1
2
Figure 28
