SCHOTTEL SV 1 - Controlling with the Chair Control Stand Board

en
37 /
Control System and Electric System (PX 105)FIT--Wa 1159850Dec./06
48

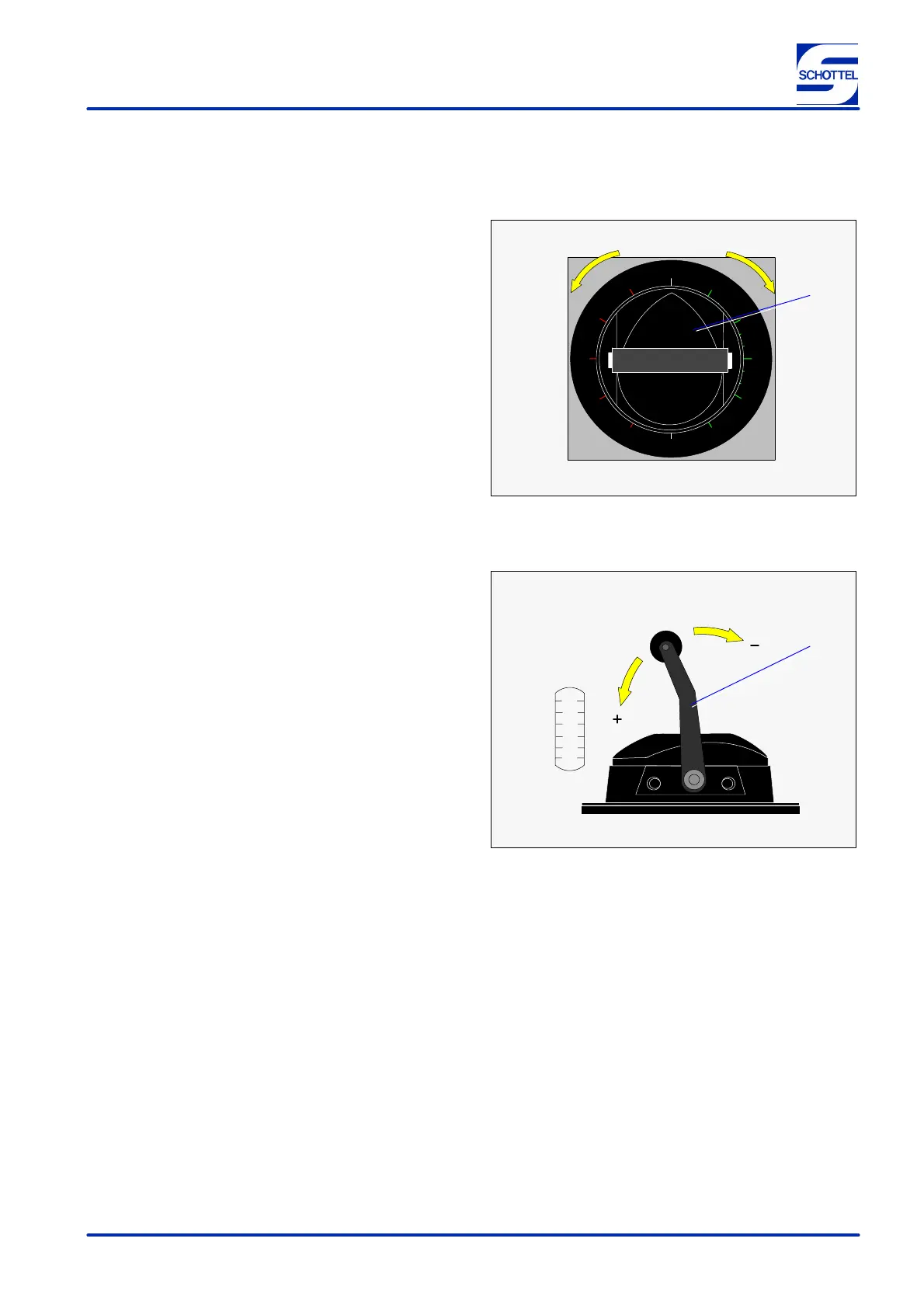

Controlling with the chair control stand
board
Path--dependent
Setting the t hrust direction
1. Turning the system clockwise:
Turn the control block (47/1) clockwise.
2. Turning the system counter--clockwise:
Turn the control block counter--clockwise.
1
180
0
30
60
90
120
150
30
60
90
120
150
Figure 47
Presetting speed
1. Increasing speed:
Push the s peed lever (48/1) down (+).
2. Reducing speed:
Pull the s peed lever up (--).
1
0
2
4
6
8
10
Figure 48
