Controlling with the main control stand
board
Path--dependent
The following required conditions are to be met:
D Signal lamp ”Presetting thrust direction” (42/1) and
signal lamp RPM (42/3) have to shine.
D The illuminated push--button ON (42/2) must not
shine.
Press the illuminated push--button ON, if required.
RPM
EMERG
STOP
ON
PILOT
OFF
PILOT
ON
1
2
3
TEST
DP
JOYSTICK
IN SERVICE

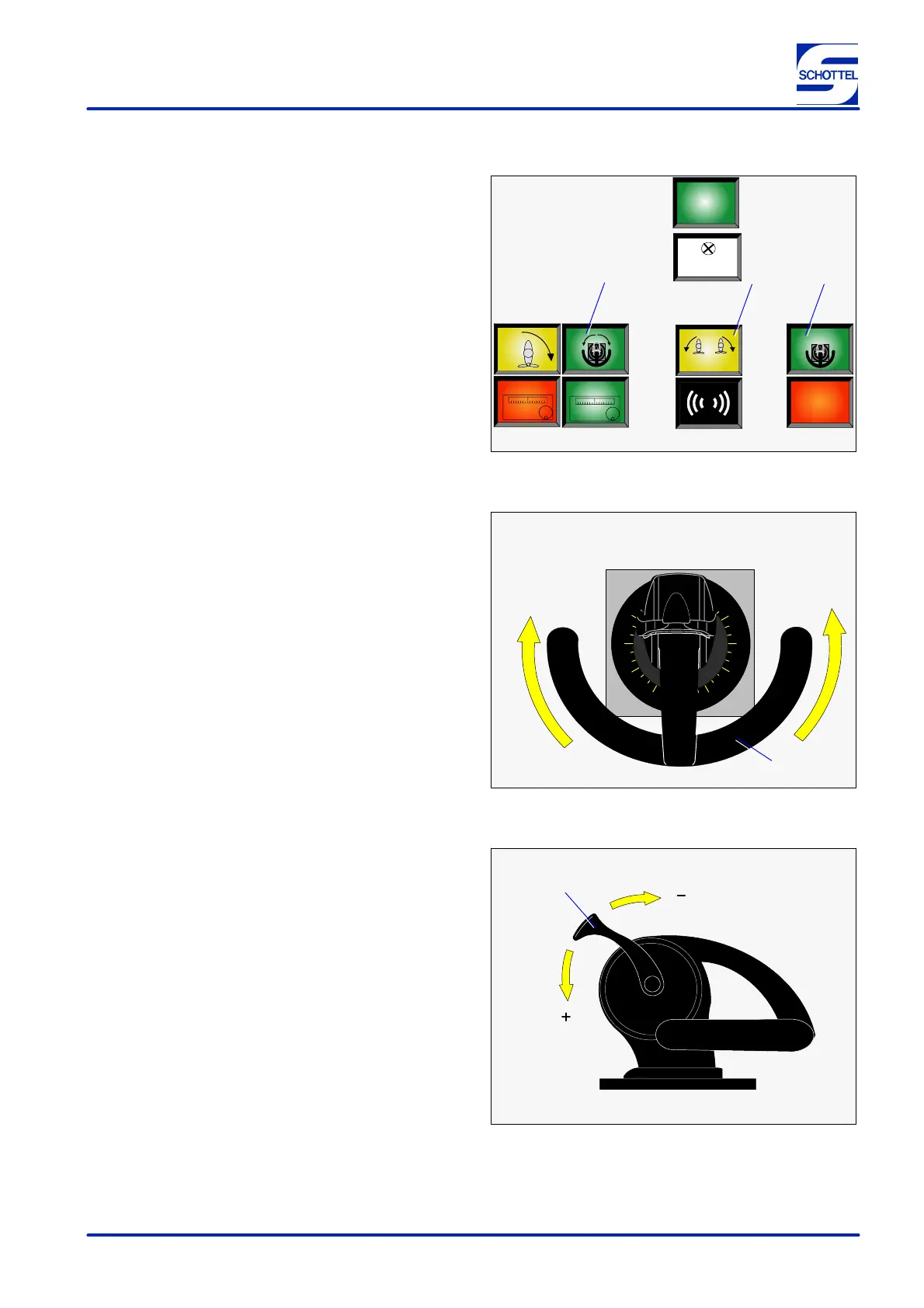

Figure 42
Setting the t hrust direction
1. Turning the system clockwise:
Turn the control lever (43/1) clockwise.
2. Turning the system counter--clockwise:
Turn the control lever counter--clockwise.
1
Figure 43
Presetting speed
1. Increasing speed:
Push the s peed lever (44/1) down (+).
2. Reducing speed:
Pull the s peed lever up (--).
1
Figure 44
