Control System and Electric System (PX 105)FIT--Wa 1159850Dec./06
48
Emergency operation
ATTENTION
!
With failure of one steering motor, it is possible to
continue to operate the system , but it is required to
reduce the speed of the driving motor.
Releasing the brake in the steering motor
NOTE
With an error in the electric approach of the brake, the
brake is to be released mechanically.

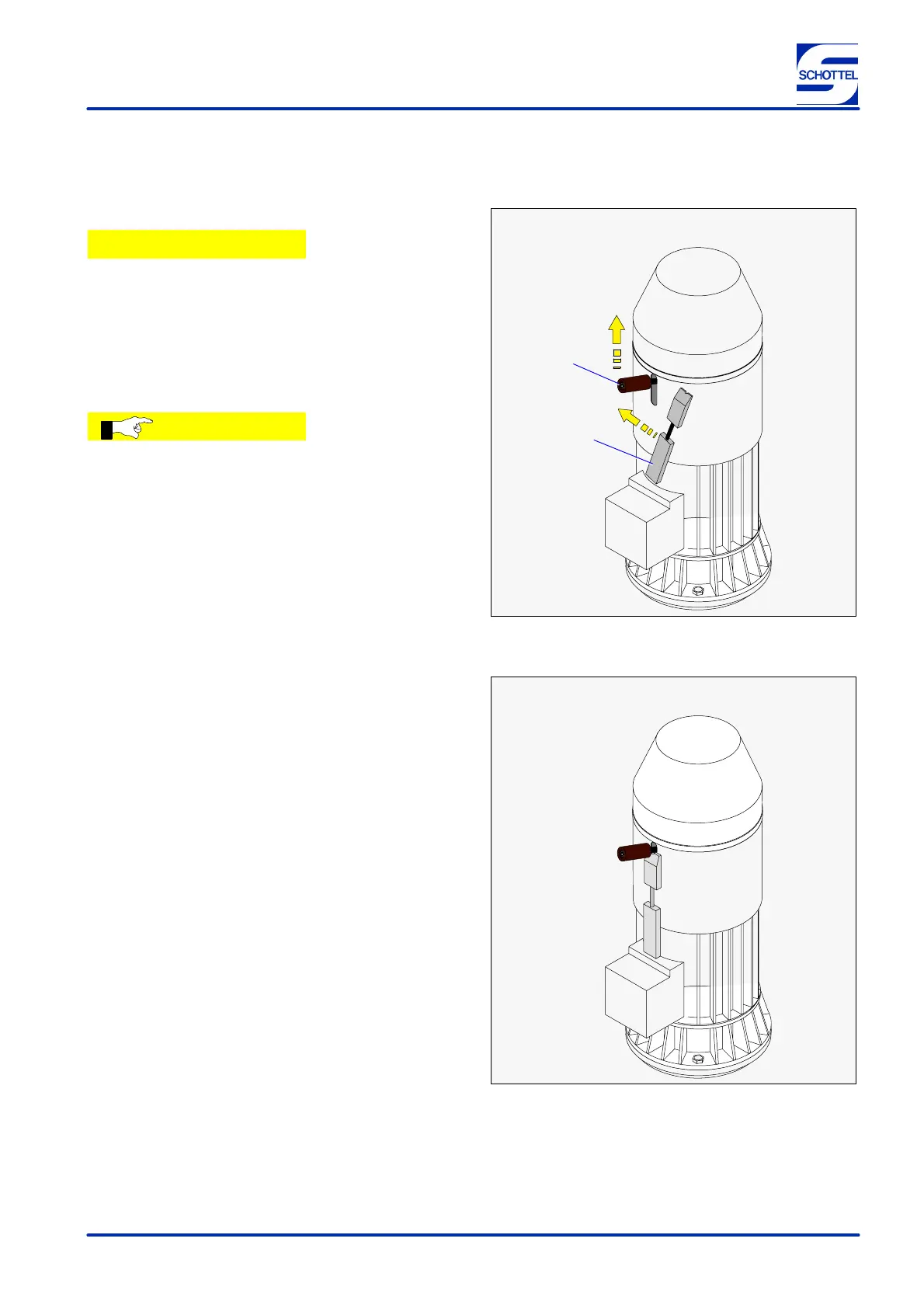

1. Pull the hand lever (54/1) up and fasten it with the
locking bar (54/2) (Figure 55).
1
2
Figure 54
Figure 55
