Control System and Electric System (PX 105)FIT--Wa 1159850Dec./06 en
Turning the system manually
NOTE
With failure of the electric controls, with one of the
steering motors the system can be turned manually by
360°.
Prior to manual turning however, it is require to release
the brakes of all steering motors.
Tools:
Ratchet handle (part of scope of supply)
! CAUTION
Switch the frequency converter off and secure against
unintended switch--on.

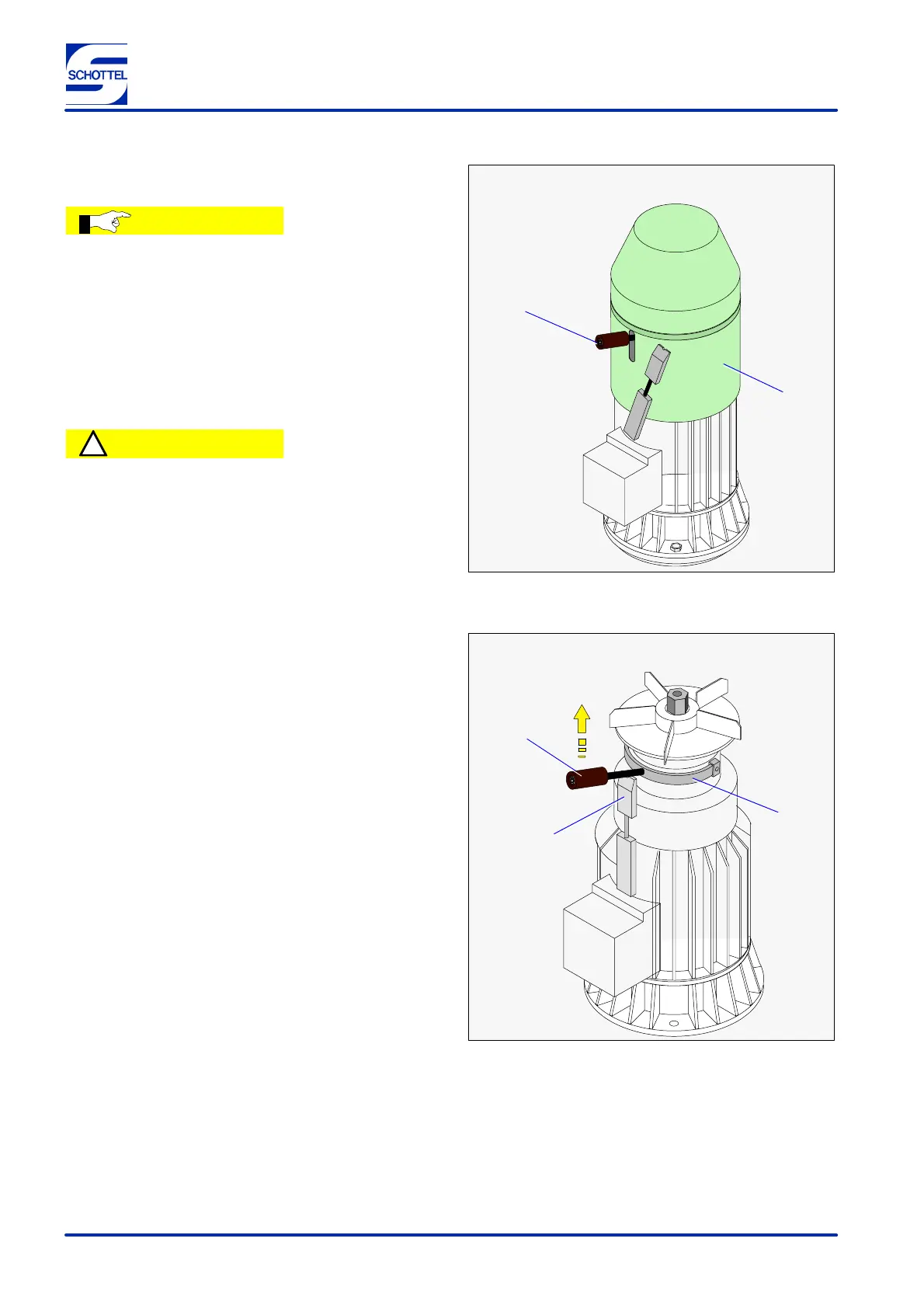

1. Unscrew hand lever (56/1) and dismount
protective hood (56/2).
1
2
Figure 56
2. Screw the hand lever (57/1) back into the hand
lever fork (57/2).
3. Pull the hand lever up and fasten it with the locking
bar (57/3).
1
2
3
Figure 57
