Control System and Electric System (PX 105)FIT--Wa 1159850Dec./06 en
DP system
Activation
The following required conditions are to be met:
D The DP system must be ready for activation and
the switch contact ”DP ON” must be closed.
For further details regarding the DP system, see
manufacturer’s documentation.
D Co--pilot (40/1) or control lever (40/2) must be
active.
Signal lamp ”Presetting thrust direction” (41/3) and
signal lamp RPM (41/2) shine.
After switching the DP system on, signal lamp DP
JOYSTICK IN SERVICE (41/1) signal lamp ”Presetting
thrust direction” and signal lamp RPM go out.
0
0
1
2

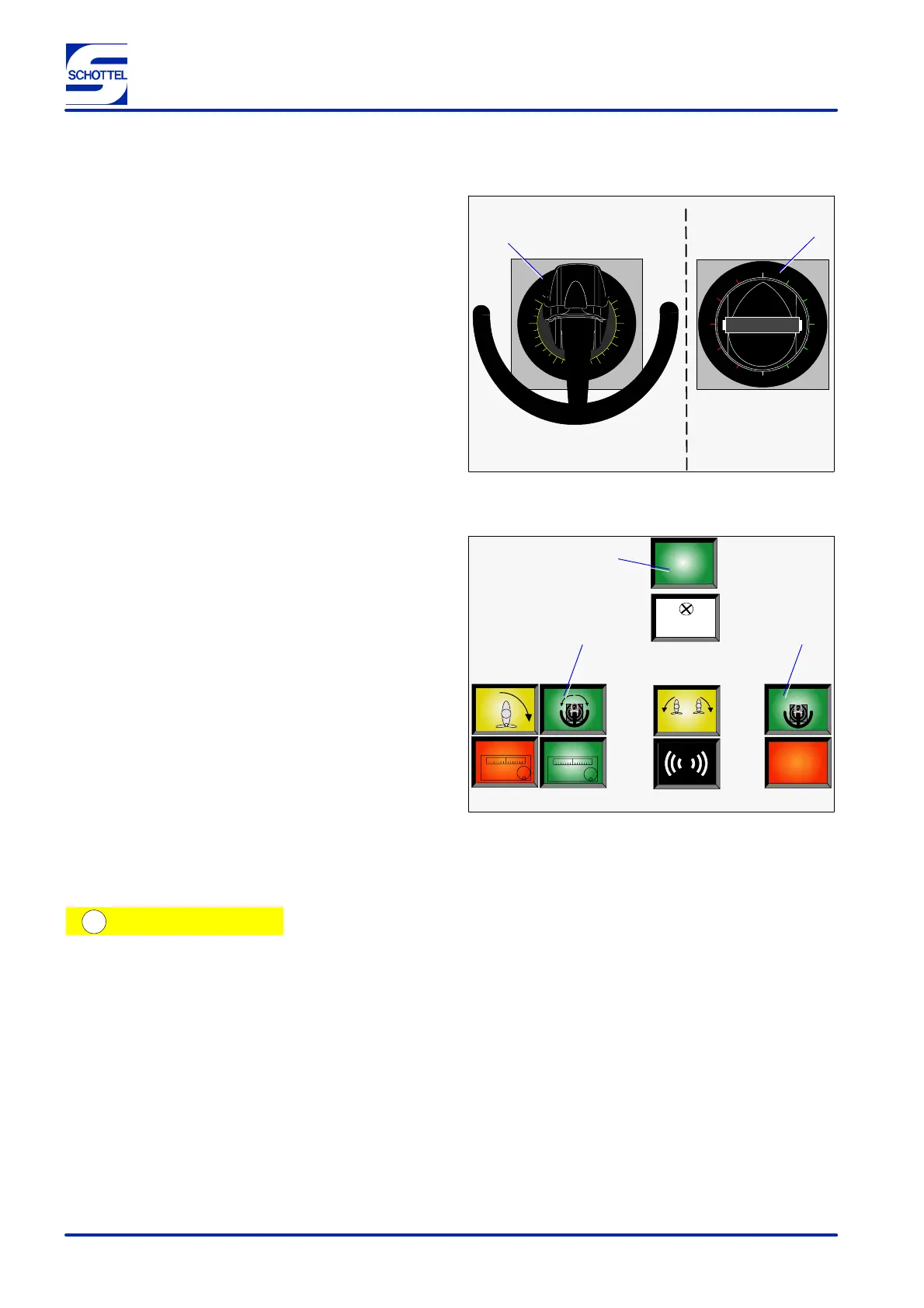

Figure 40
Switch--off
For switch--off it is required to open the switch--contact
”DP ON”.
For further details regarding the DP system, see
manufacturer’s documentation.
Subsequent to setting the Co--pilot or the control lever
to the actual position and speed of the system, the
signal lamp DP JOYSTICK IN SERVICE (41/1) and the
signal lamps ”Presetting thrust direction” (41/3) and
signal lamp RPM (41/2) shine.
RPM
EMERG
STOP
ON
PILOT
OFF
PILOT
ON
1
2
3
TEST
DP
JOYSTICK
IN SERVICE
Figure 41
Joystick system
INFORMATION
i
Switch--on and switch--off of the joystick system is
carried out analogue to switch--on and switch--off of the
DP system.
For further details regarding the joystick system, see
manufacturer’s documentation.
