Control System and Electric System (PX 105)FIT--Wa 1159850Dec./06
48

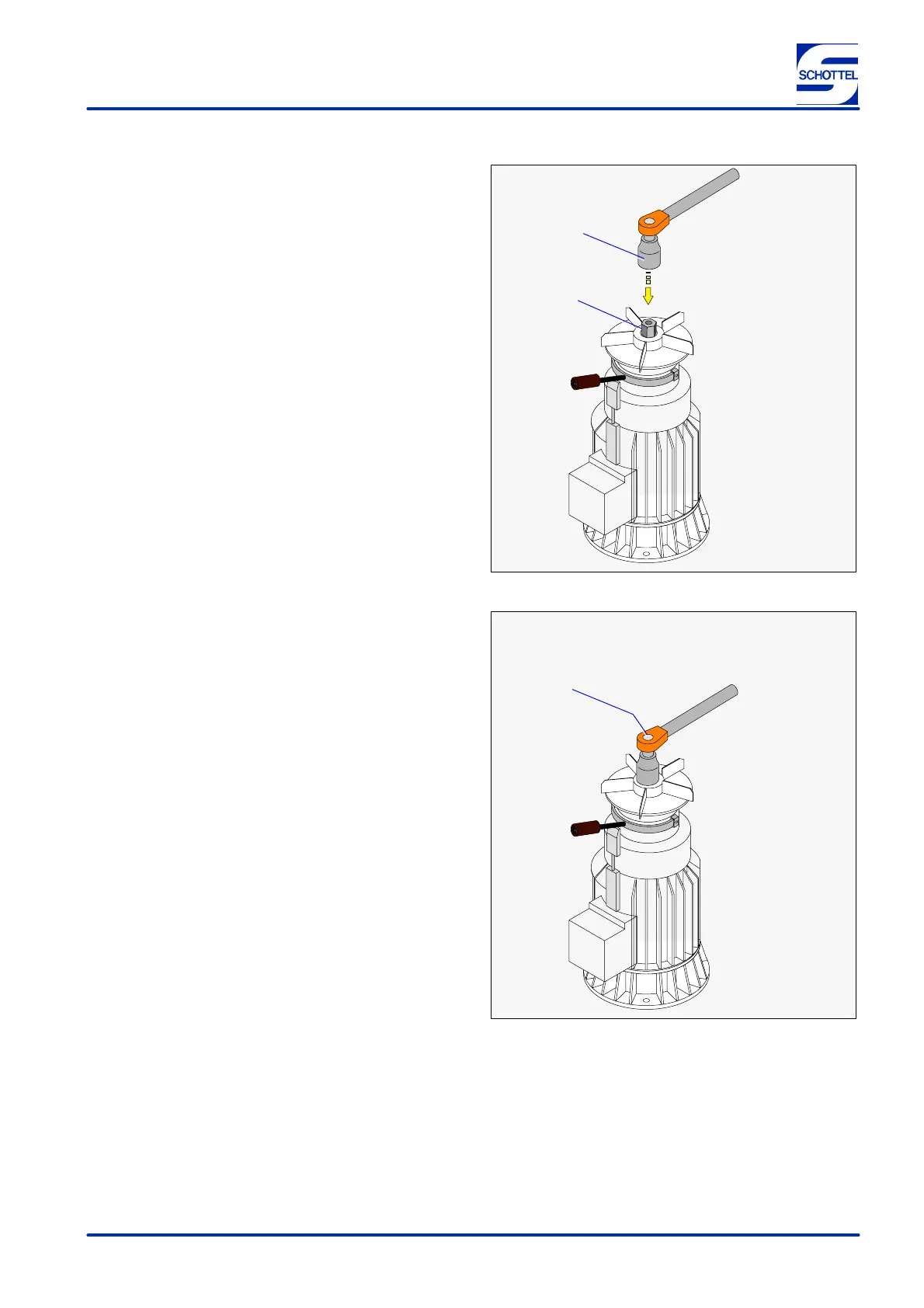

4. Push the ratchet handle (58/1) onto the hexagon
(58/2) of the motor shaft.
1
2
Figure 58
5. Using the ratchet handle (59/1) turn the system
into the desired position.
6. Remove the ratchet handle.
7. Reactivate the brakes on all steering motors.
1
Figure 59
