Assembly
24
02.00 | GWB | Assembly and Operating Manual | en | 389122
Double check valve
Closed
Open
Adapter
O-ring
Gripper
Gripper

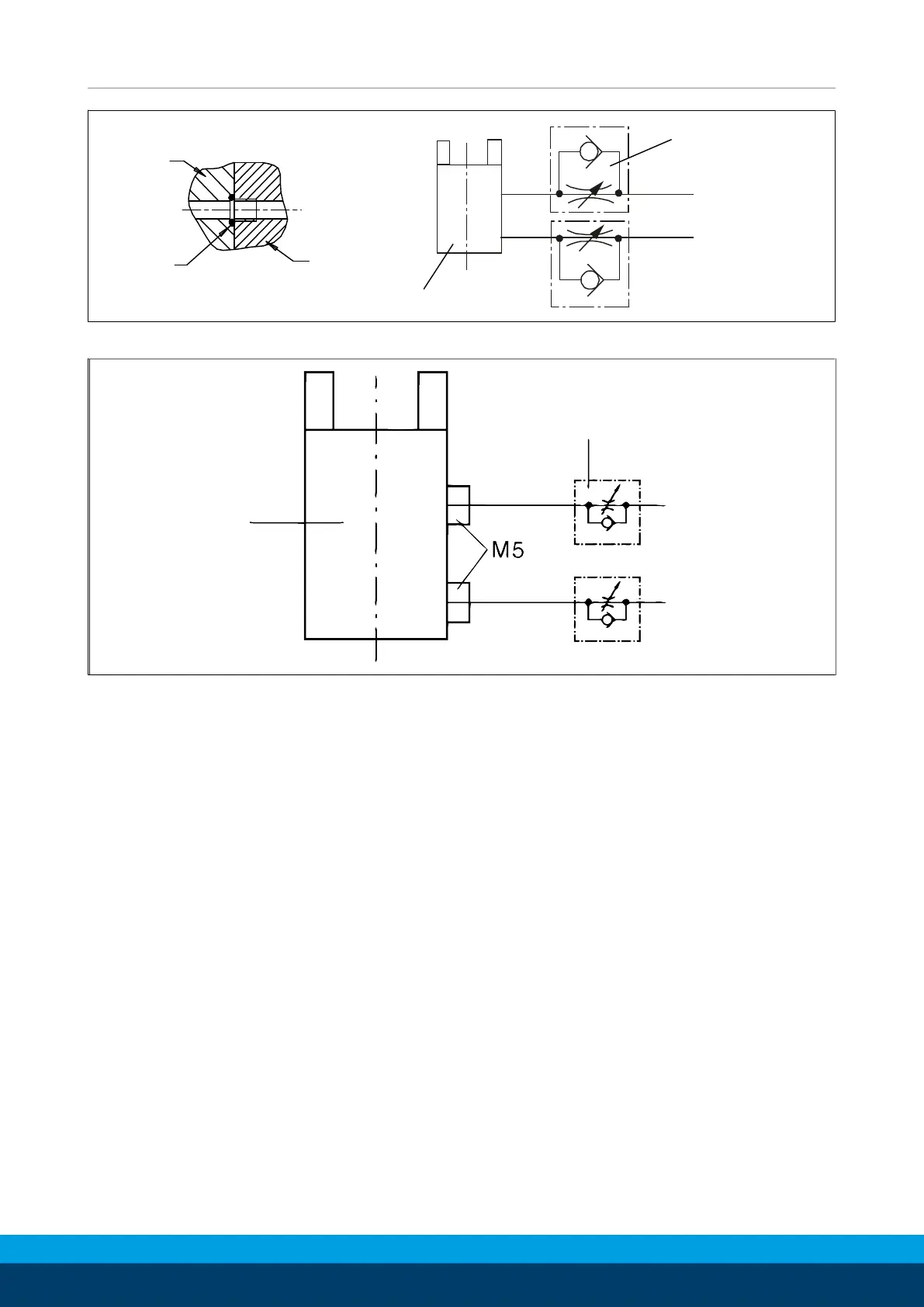

Pneumatic connection GWB 34-80
Gripper
Gripper open
Gripper closed
Double check valve
Pneumatic connection GWB 100
• Open only the air connections that are needed.
• Close unused main air connections using the screw plugs from
the enclosed pack.
• For a hose-free direction connection, use the O-rings from the
enclosed pack.
Further information on the hose-free direct connection contains
the catalog data sheet.
