Assembly
02.00 | GWB | Assembly and Operating Manual | en | 389122
29
4.4 Top jaws
Mounting of jaws:
The top jaws can be fastened to the gripper fingers optionally from
the inside or outside.

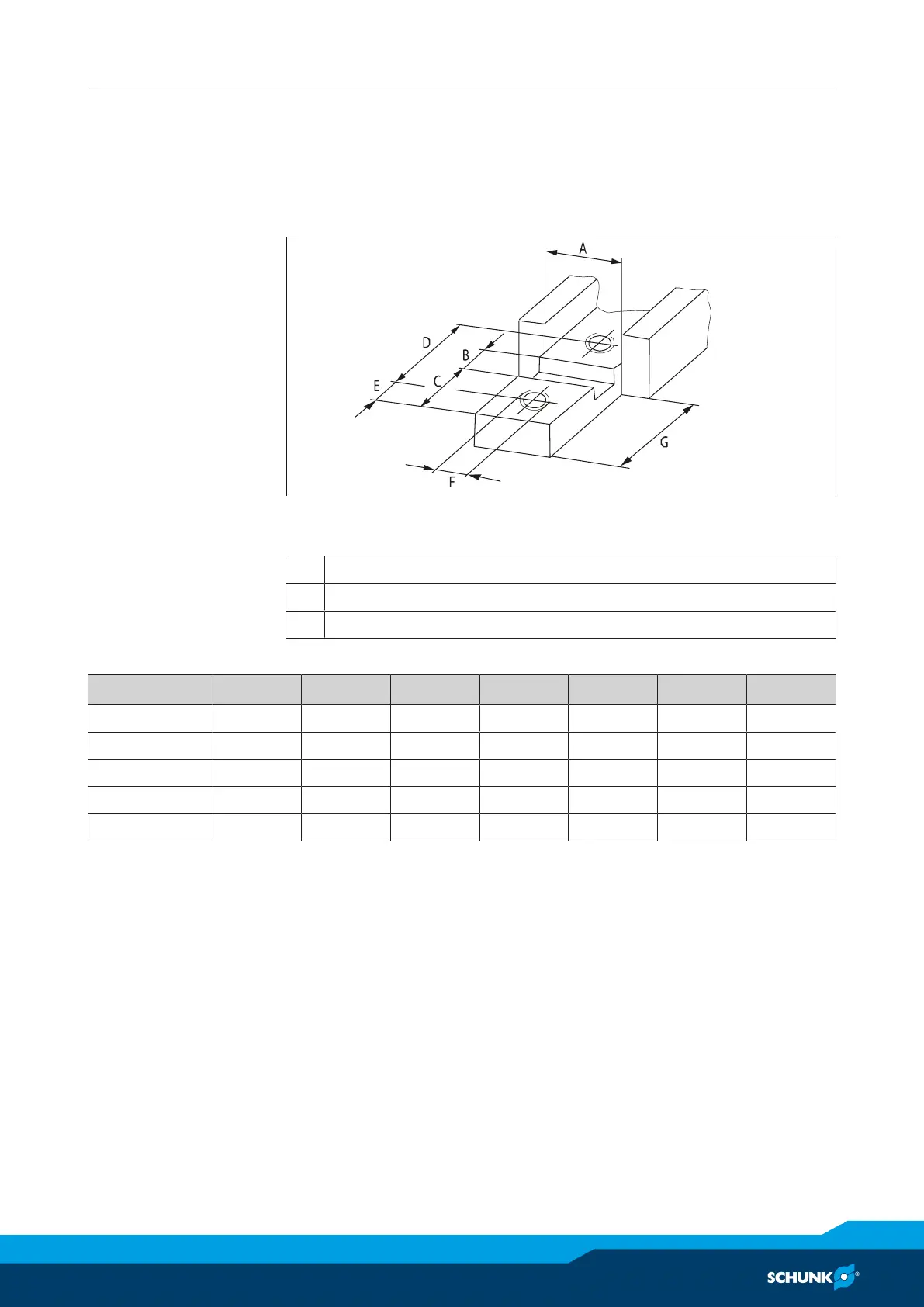

Example of how to
design a top jaw
A Centering for gripper finger
B Groove for cylindrical pin
F Thread for cylindrical screw
Table of dimensions
Type A B C D E F G
GWB 34 10 3 6 9 3 M3 10
GWB 44 12 4 9 14 4 M4 11
GWB 54 14 5 10.5 16 5 M5 17
GWB 64 16 6 12 18 6 M6 19
GWB 80 22 6 13 20 6 M6 20
