SCHUNK GWB Series - Assembly Drawing; GWB 34 - 80 Assembly

Maintenance
02.00 | GWB | Assembly and Operating Manual | en | 389122
39
6.5.1 Screw tightening torques
Position of the item numbers Assembly drawing [
}
39]
Item GWB 34 GWB 44 GWB 54 GWB 64 GWB 80 GWB 100
18 2.7 5.8 5.8 12 21 -
6.6 Assembly drawing
The following figures are example images.
They serve for illustration and assignment of the spare parts.
Variations are possible depending on size and variant.

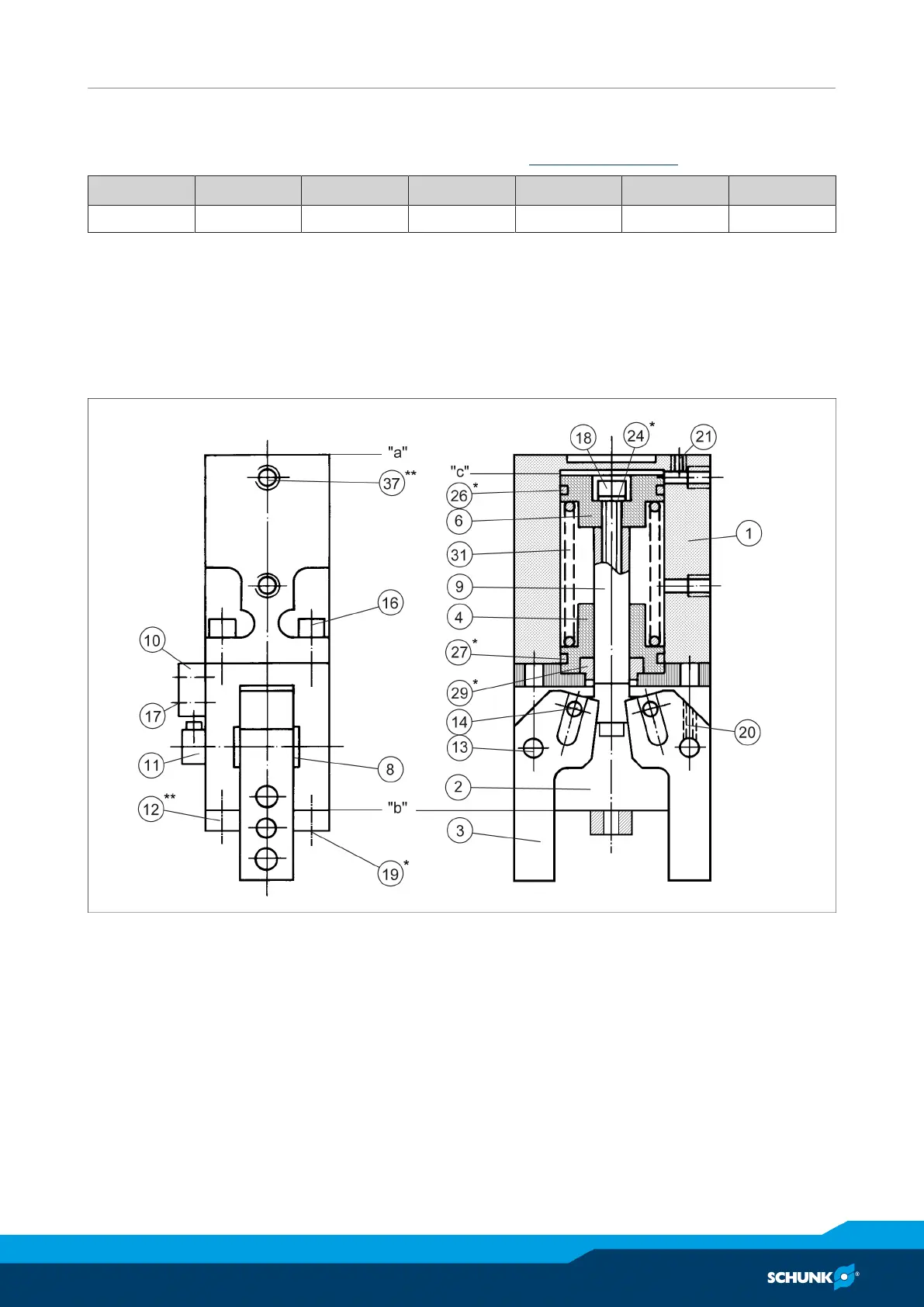

6.6.1 GWB 34 - 80 assembly
GWB 34 - 80 assembly
* Wearing part, replace during maintenance.
Included in the seal kit. Seal kit can only be ordered completely.
** Contained in accessory pack.
