Assembly
02.00 | GWB | Assembly and Operating Manual | en | 389122
25
4.2 Opening angle limitation
Set the desired opening angle using the adjustment screw (3).
GWB 34 - 80: Adjustment range: 10° - 90°. Secure the adjustmenrt
screw with the lock nut after making the setting. To do so, remove
the stop bar and bring the gripper into the open 90° position.
GWB 100: Adjustment range: 0° - 180°. Use a size-6 hexagon
socket wrench.
CAUTION
There is a risk of functional impairment if the adjustment range
is not observed.

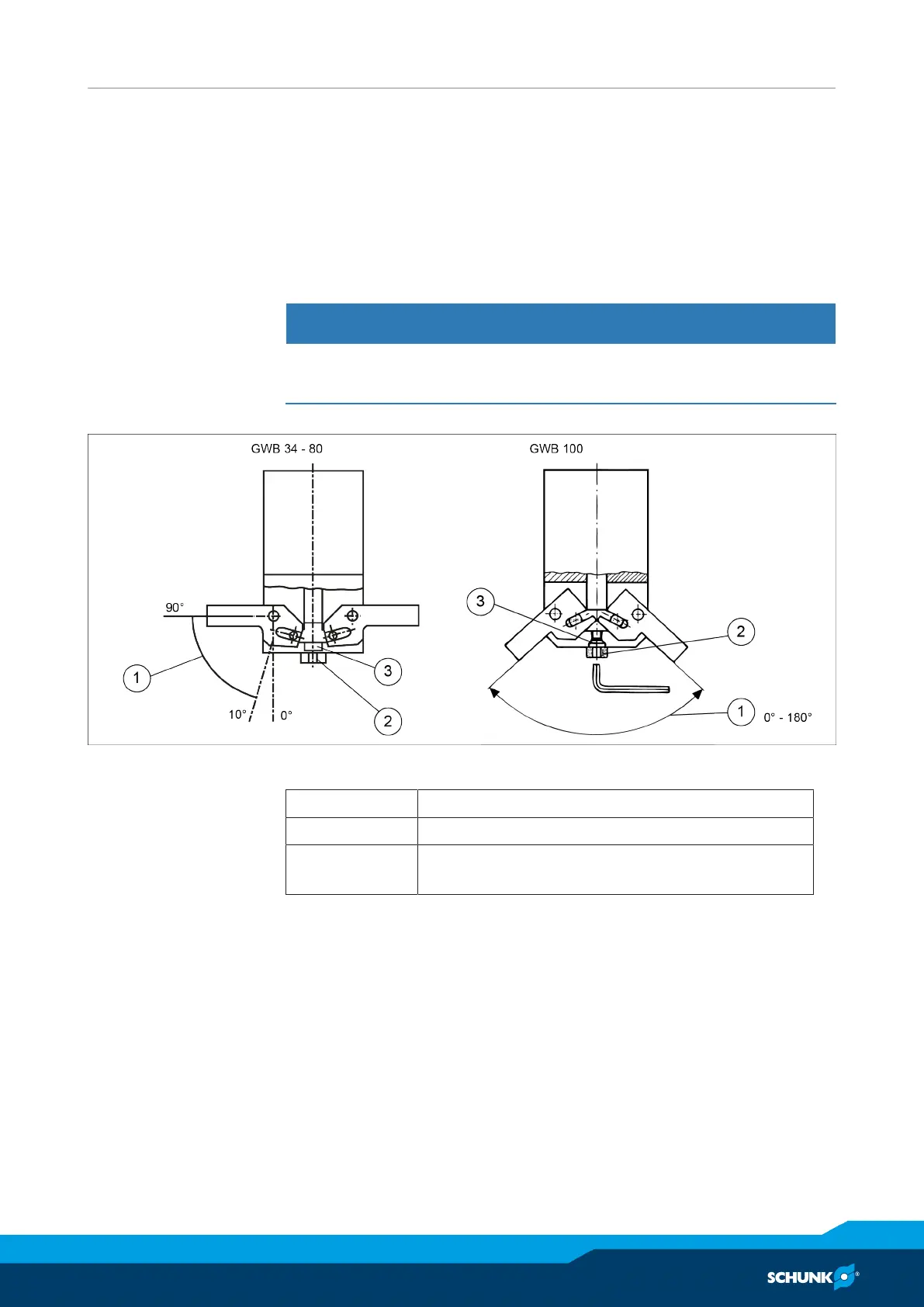

GWB 34 - 100 opening angle limitation
1 Adjustment range
2 Stop bar
3 GWB 34-80
adjustment screw with lock nut
