Assembly
14.00 | JGP | Assembly and Operating Manual | en | 389157
37

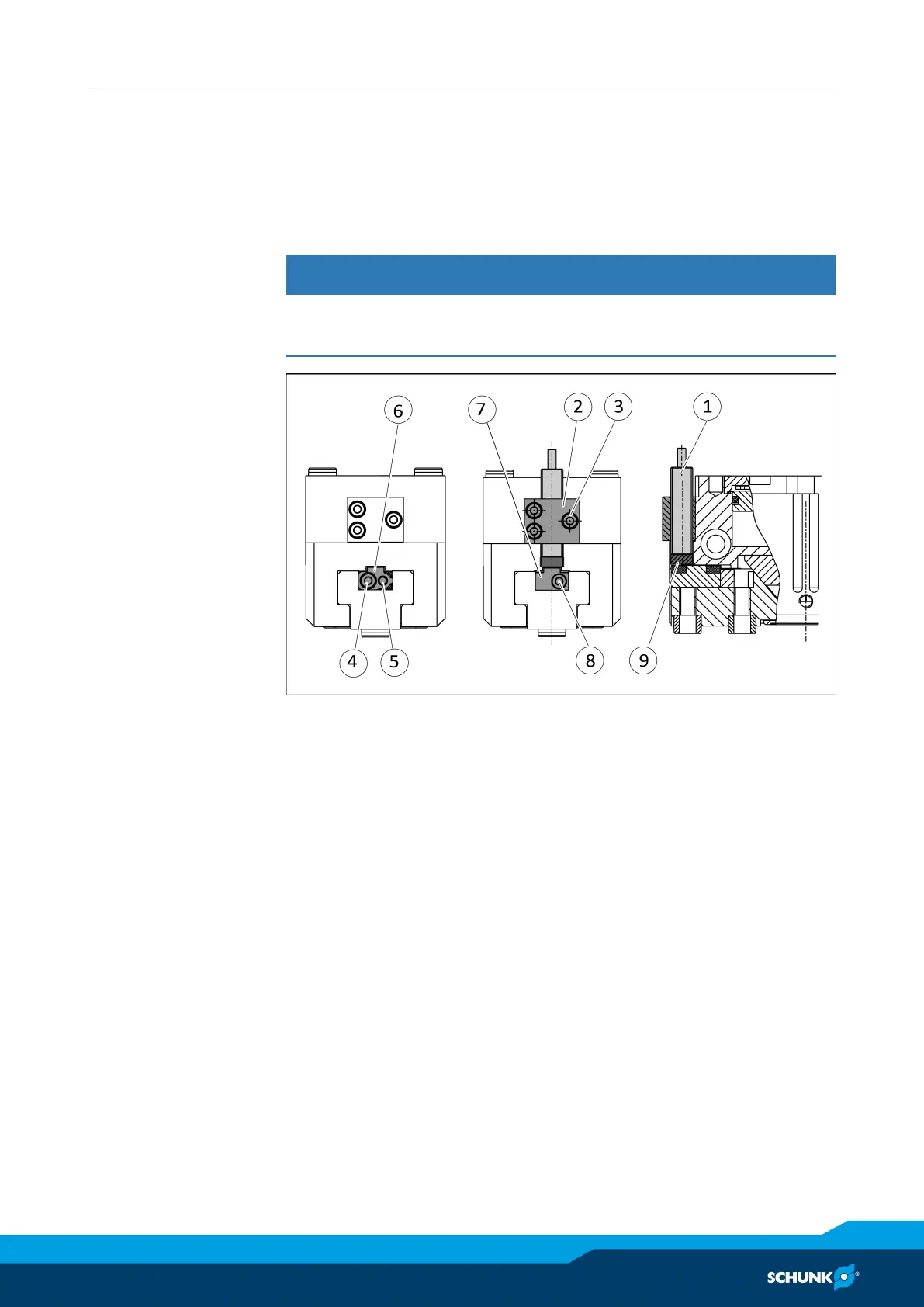

5.3.11 Mounting flexible position sensor FPS
The flexible position sensor FPS consists of a torque sensor system
controller and the sensor FPS-S M8.
To be able to mount the sensor, the gripper has to be retrofitted
with a special mounting kit.
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
Ø Move product to the "gripper open" position.
Ø Loosen screw (4) and remove control cam (6) for the inductive
monitoring from the base jaw.
Ø Remove screw (5) from the base jaw.
Ø Slide control cam (7) from the mounting kit with the recess at
the front into the base jaw.
Ø Screw the control cam (7) to the base jaw using the screw (8).
Ø Slide spacer shim (9) into the bracket (2) to the stop.
Ø Slide the sensor (1) to the stop into the bracket (2).
Ø Tighten the screw (3) on the bracket (2).
Tightening torque: 0.2 Nm
Ø Adjust sensor (1), see assembly and operating manual of the
sensor.
