5.3.14 Mounting optical distance sensor OAS
CAUTION
Risk of damage to the sensor!
• The cable must be aligned to the side of the gripper on which
the two grooves for assembly of the sensor are located.
The other side can be used for mounting the gripper.

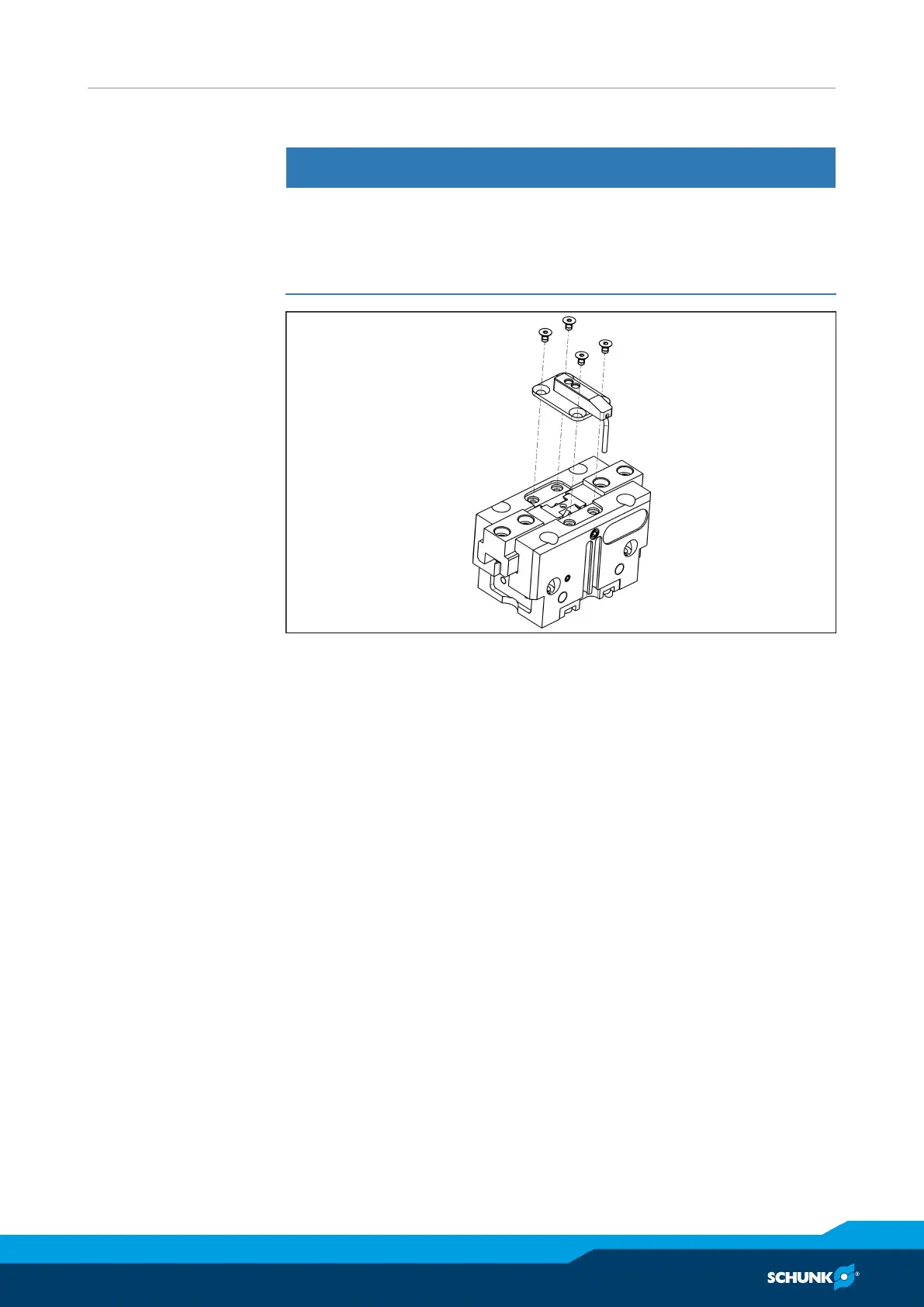

Ø Remove the gripper's cover plate.
Ø Assemble the sensor in place of the cover plate. To do this, use
the cover plate screws.
Ø Connect the sensor to the evaluation unit, see Translation of
Sensor Assembly and Operating Instructions.
