SCHUNK JGP User Manual

Assembly
14.00 | JGP | Assembly and Operating Manual | en | 389157
25

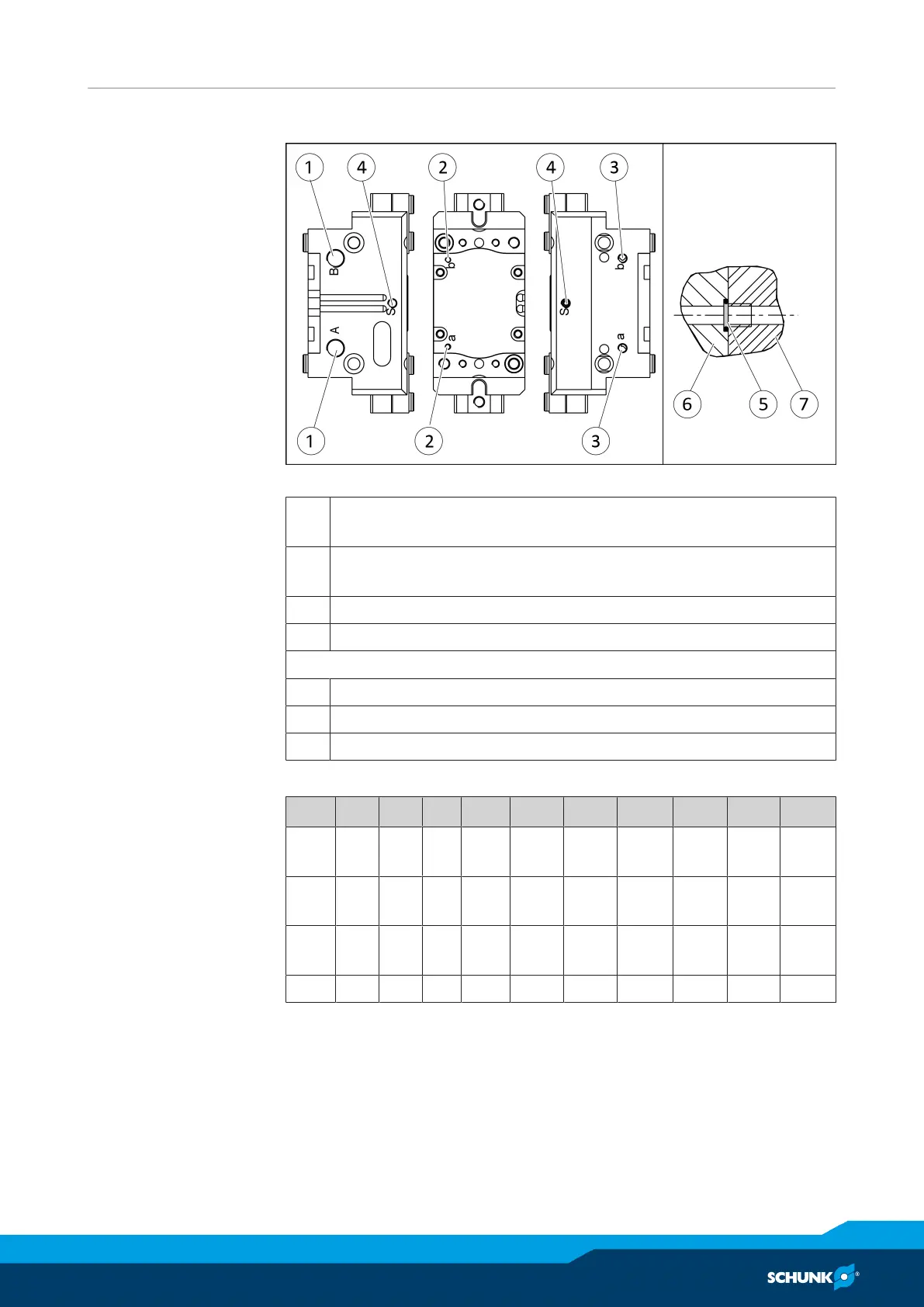

5.2.2 Pneumatic connection
Air connections
1 Main connections (Hose connection)
(A = open, B = close)
2 Hose-free direct connection at the base
(a = open, b = close)
3 Hose-free direct connection
4 Air purge connection
Hose-free direct connection
5 O-ring
6 Attachment
7 Product
Thread diameter of the air connections
Item 40 50 64 80 100 125 160 200 240 300
1 2 x
M3
2 x
M5
2 x
M5
2 x
M5
2 x
R1/8"
2 x
R1/8"
2 x
R1/8"
2 x
R1/8"
2 x
R1/4"
2 x
R1/4"
2 2 x
M2
2 x
M3
2 x
M3
2 x
M3
2 x
M3
2 x
M5
2 x
M5
2 x
M5
2 x
M5
2 x
M5
3 2 x
M3
2 x
M5
2 x
M5
2 x
M5
2 x
M5
2 x
M5
2 x
M5
2 x
M5
2 x
M5
2 x
M5
4 M3 M5 M5 M5 M5 M5 M5 M5 M5 M5
