SCHUNK JGP - Mounting the radio system RSS-R1;T2; Mounting force-measuring jaw FMS

Assembly
42
14.00 | JGP | Assembly and Operating Manual | en | 389157
5.3.15 Mounting the radio system RSS-R1/T2
The radio system RSS-R1/T2 can be used with the following
sensors:
• Reed switch RMS 80
Assembly
Ø Install the sensor, Mounting reed switch RMS 80 [
}
35].
Ø Adjust the sensor, see the assembly and operating manual for
the sensor.
Ø Connect the radio system, see the assembly and operating
manual for the radio system.

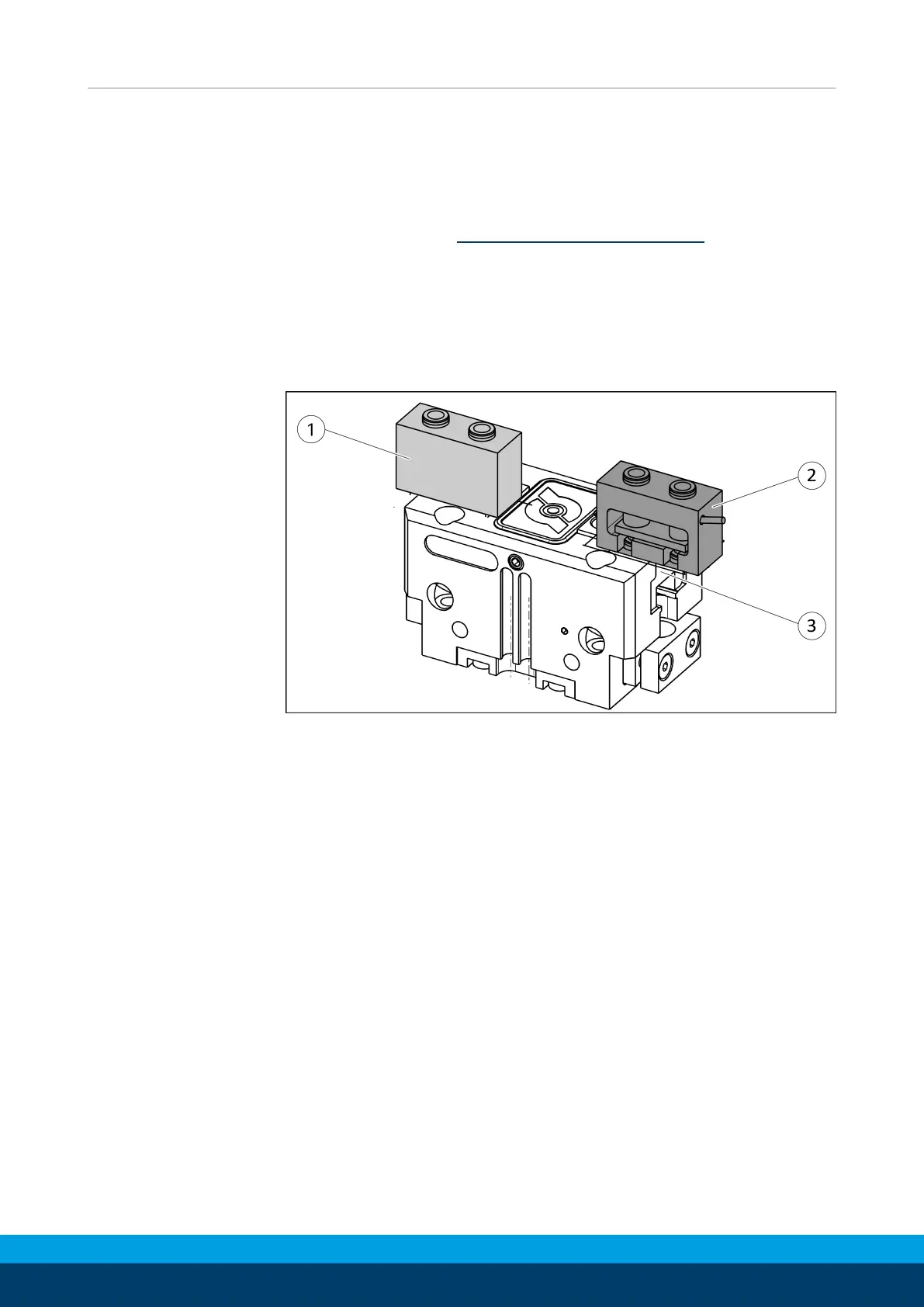

5.3.16 Mounting force-measuring jaw FMS
Ø Screw intermediate jaws (2) onto the base jaws (4).
✓ Use centering sleeves between base jaw and intermediate
jaw.
Ø Screw passive force-measuring jaw (1) and active force-
measuring jaw (3) onto the intermediate jaws.
✓ Use centering sleeves between force-measuring jaw and
intermediate jaw.
Ø Screw gripper fingers onto the force-measuring jaws (1, 3).
✓ Use centering sleeves between force-measuring jaw and
gripper finger.
Ø Connect the evaluation unit, see Sensor Assembly and
Operating Instructions.
