Maintenance
14.00 | JGP | Assembly and Operating Manual | en | 389157
53
Sizes 160-300
d
5
d
6
d
9
d
8
d
7
l
2
l
3
A
D – D
D
D
C – C
d
4
d
3
d
2
l
3
d
1
C
C
1
2

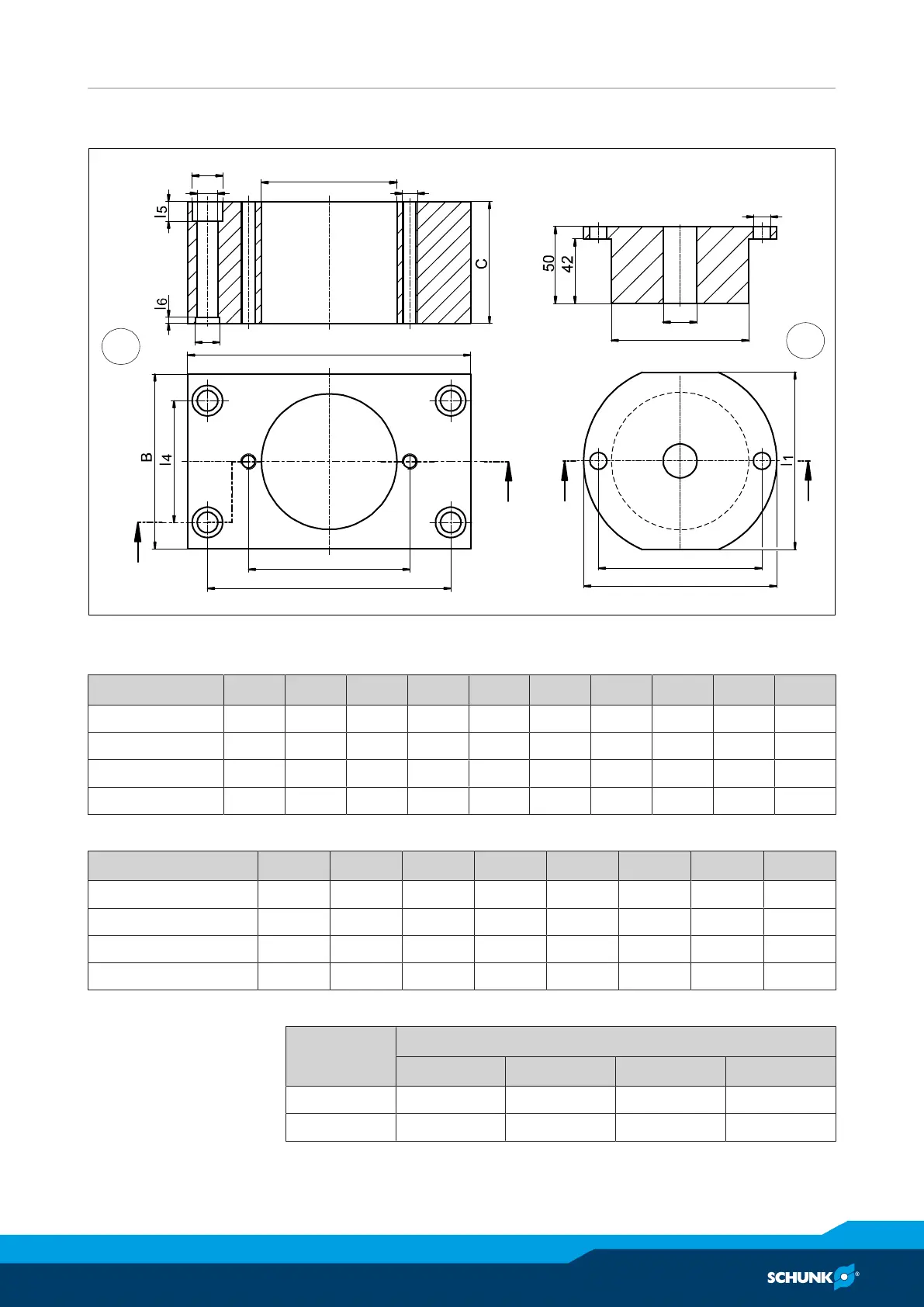

Assembly device for maintaining the gripping force
Cylinder piston assembly device - dimensions in mm
Type A B C d1 d2 d3 d4 d5 d6 d7
JGP 160 125 72 50 90.5 9 18 57.5 15 9 12
JGP 200 154 100 65 110 9 20 78 18 11 14
JGP 240 186 115 80 125 11 22 88 20 13.5 16
JGP 300 210 140 95 149 11 30 114.3 26 17.5 22
Cylinder piston assembly device - dimensions in mm
Size d8 d9 l1 l2 l3 l4 l5 l6
JGP 160 M8 58.5 72 100 74.5 56 9 3
JGP 200 M8 79 100 130 95 70 11 4
JGP 240 M10 89 115 160 106 80 13 4
JGP 300 M10 115.3 139 180 130 96 17 6
Screws for cylinder piston assembly device
Item
JGP
160 200 240 300
1 M8 x 60 M10 x 80 M12 x 90 M16 x 110
2 M8 x 65 M8 x 80 M10 x 95 M10 x 110
