Assembly and connection
18
02.00 | KSP3, KSP3-LH, KSP3-F | Assembly and Operating Manual | en |
1463318
5 Assembly and connection
The numbers shown for individual components refer to the
illustrations for assembly or connections of the clamping force
block and to the "Assembly Drawings" chapter.
}
9 [
/
42]
WARNING
Danger of crushing due to the product approaching the machine
table during assembly.
Do not reach between the product and machine table during
assembly
CAUTION
Danger of abrasions due to rough components of the product
and its accessories, which may slip out of your hands during
assembly.
Wear protective equipment (protective gloves) when working
on the product and when handling its accessories

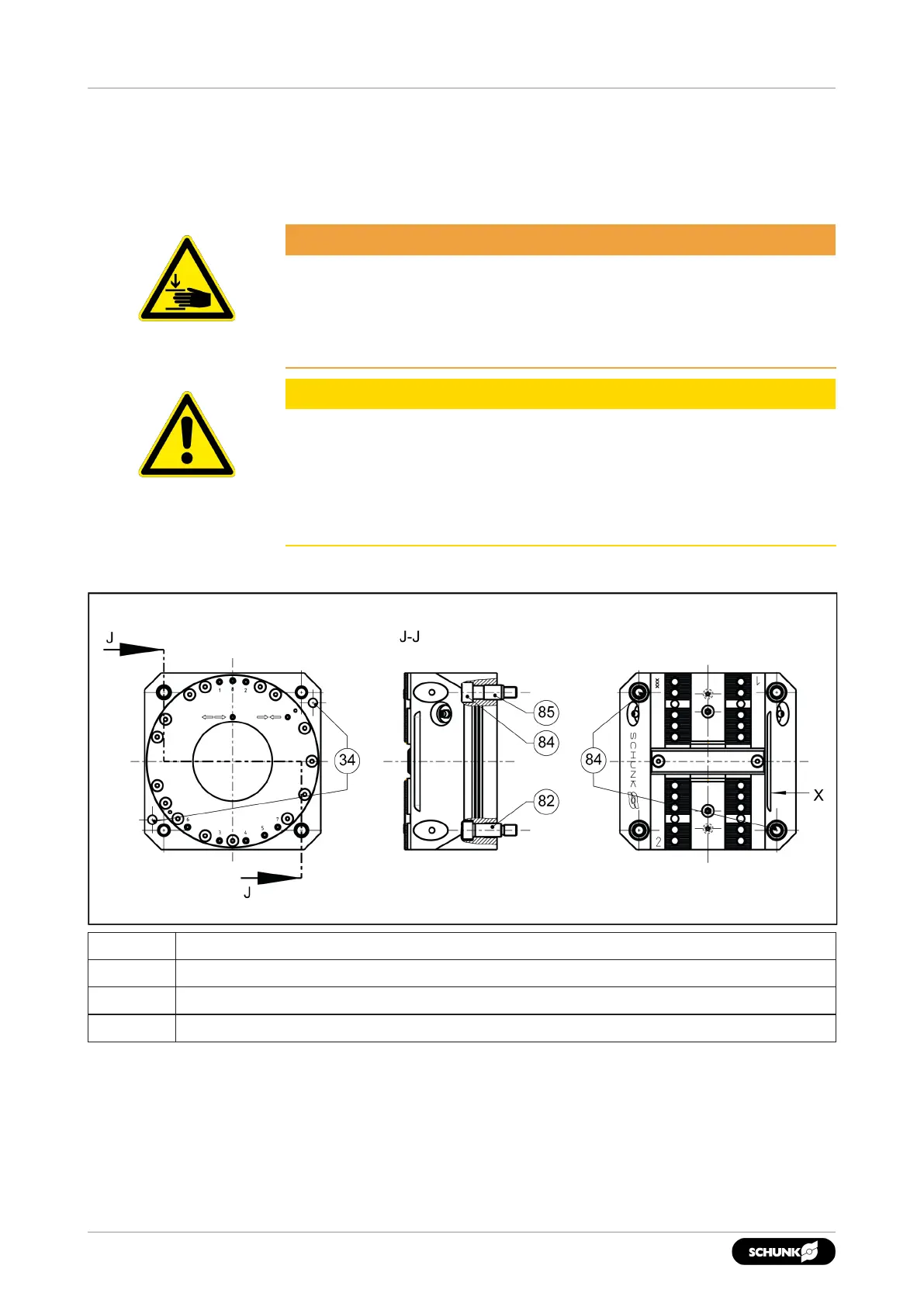

5.1 Assembly of the Clamping Block on the machine table
34
Cylindrical pins Ø m6(see parts lists [
/
000] )
82
Fitting screw Ø f7 (see parts lists [
/
000])
84
Screw DIN EN ISO 4762
85
Clamping sleeve DIN EN ISO 13337
