Assembly and connection
02.00 | KSP3, KSP3-LH, KSP3-F | Assembly and Operating Manual | en |
1463318
21
The clamping force block has two more base connections (6/7) for
direct lubrication through the machine table. These connections
come sealed on delivery with set-screws (item 62).

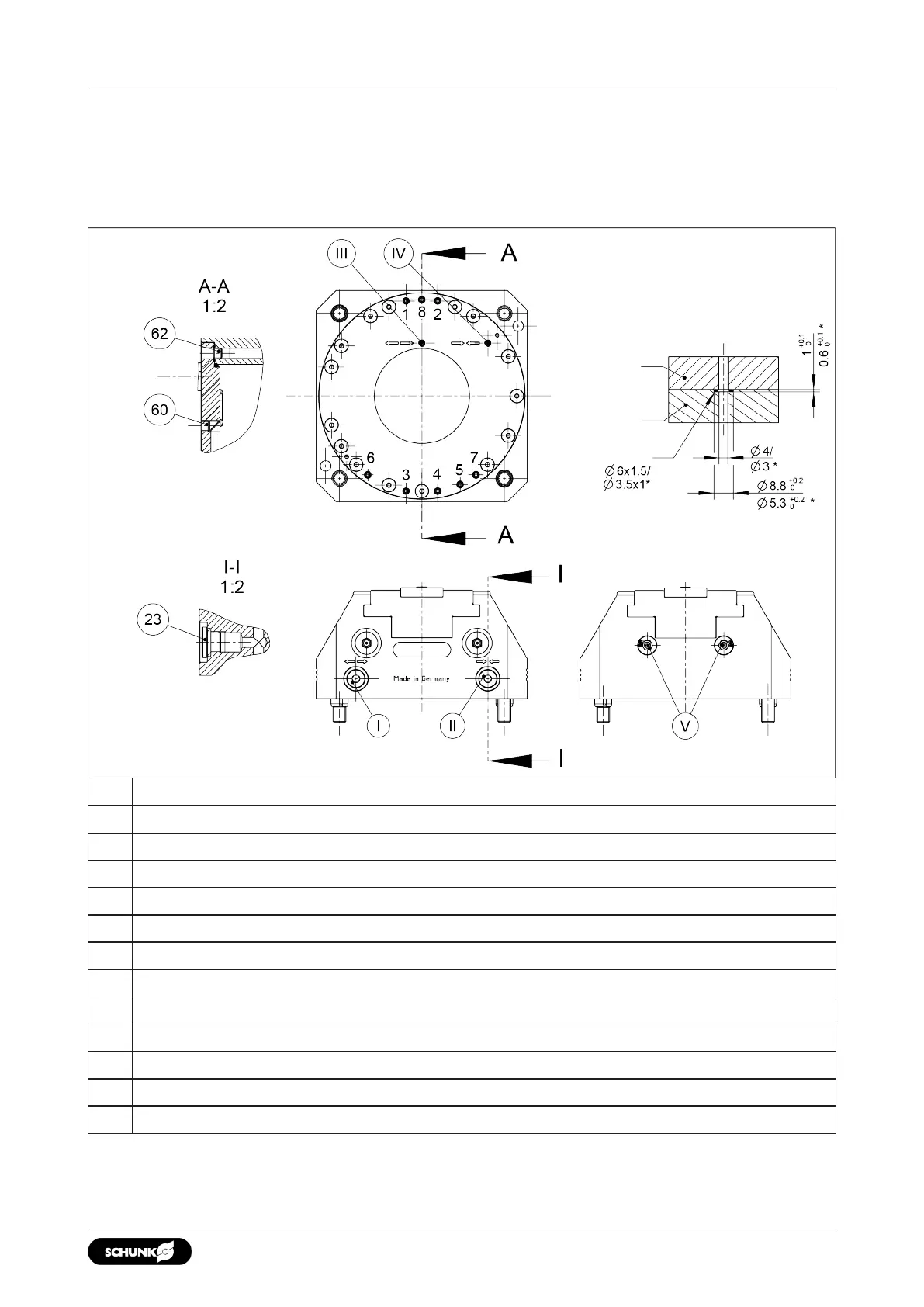

5.3 Connecting the clamping force block
I
OPEN (front)
II
CLOSED (front)
III
OPEN (bottom)
IV
CLOSED (bottom)
V
Coolant drainage / connection for air purge (front)
1
Dynamic pressure monitoring for jaw end position "open"
2
Air coupling in top jaw 1
3
Air coupling in top jaw 2
4
Dynamic pressure monitoring for jaw end position "closed"
5
Bottom connection for coolant drain or use for air purge
6
Bottom connection for lubrication (one-sided supply, left)
7
Bottom connection for lubrication (one-sided supply, right)
8
No use
Hose-free
direct connection
Clamping
system
Adapter
O-ring
