SCHUNK KSP3 User Manual

Maintenance and care
30
02.00 | KSP3, KSP3-LH, KSP3-F | Assembly and Operating Manual | en |
1463318
Central lubrication

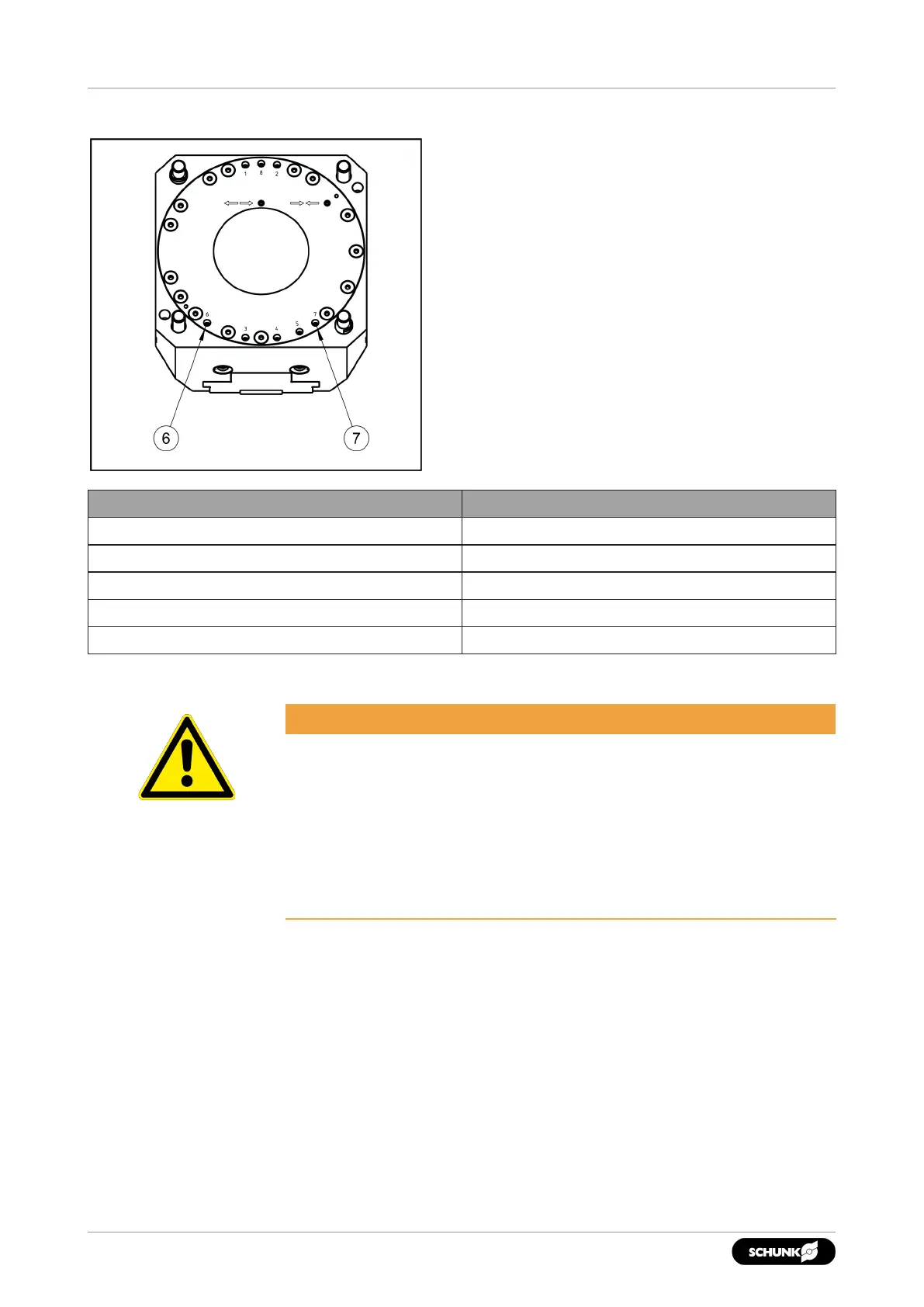

• To use central lubrication, the set-screws of
the factory sealed connections (6.7) must be
removed.
• For proper lubrication, both supply lines
must be connected.
• The central lubrication system must be
suitable for greases of NLGI 2 classification.
• Only lubricate in the open position.
• After greasing, run through the complete
stroke several times.
•
Grease to be used and lubrication
intervals, } 7.3 [ / 29]
Size
Grease quantity (per connection) [cm³]
64
2
100
4
140
4
160
4
250
4
7.4.2 Basic cleaning
WARNING
Risk of injury during disassembly of the product because of the
high spring pressure in the cover and the cylinder pistons (AS
variant).
• Only trained specialist personnel may disassemble the
clamping force block!
• The cover may only be removed with the aid of a suitable
disassembly device!
For basic cleaning, the product must be disassembled, cleaned and
reassembled. With the "PM" variant, the pneumatic jaw end
position control must also be set.
Disassembly Before disassembling the product, switch off the machine and
secure it against being switched on again. Then remove all
compressed air lines. No residual energy may be left in the
product.
