02.00 | KSP3, KSP3-LH, KSP3-F | Assembly and Operating Manual | en |
1463318

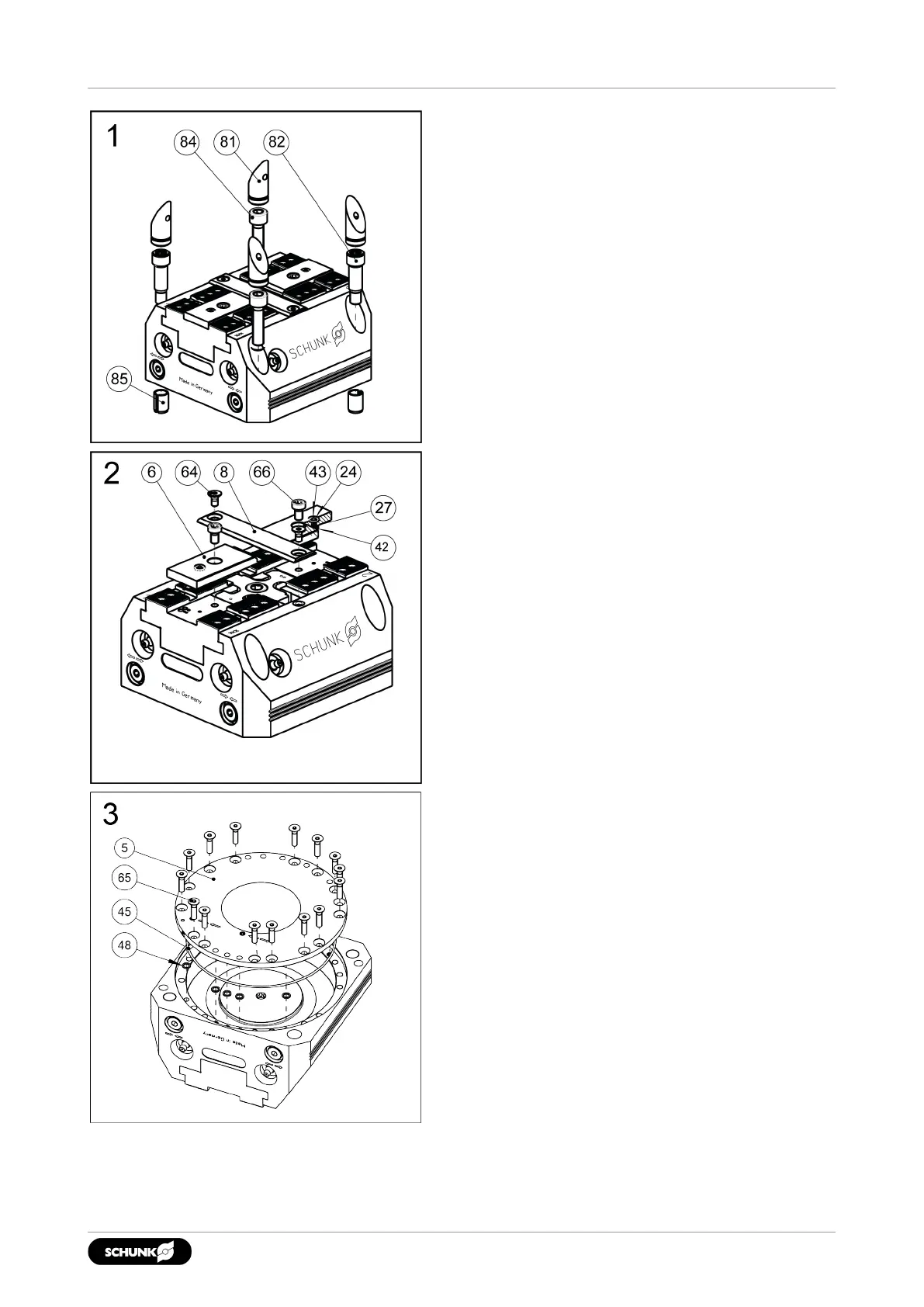

• Pull out the plug (81).
• Unscrew the screws (84) and the fitting
screws (82) and disassemble the clamping
system from the machine table.
• If using adapter sleeves (85), remove them
from the housing.
• Remove screws (64) and take off the cover
strip (8).
• Remove screws (66) and take off the guide
strip (6).
• Variant "PM" also includes a compression
spring (27), O-ring (43), sphere (24) and O-
ring (42).
Remove screws (65) and pull out cover (5)
together with O-ring (45) and Flat seals (48)
out of the housing. To do this, screw two
screws into the threaded holes as an
extraction tool
for size 64: M3 x L >25
for size 100: M3 x L >25
for size 140: M4 x L >25
for size 160: M3 x L >25
for size 250: M5 x L >25
