Maintenance and care

02.00 | KSP3, KSP3-LH, KSP3-F | Assembly and Operating Manual | en |

1463318

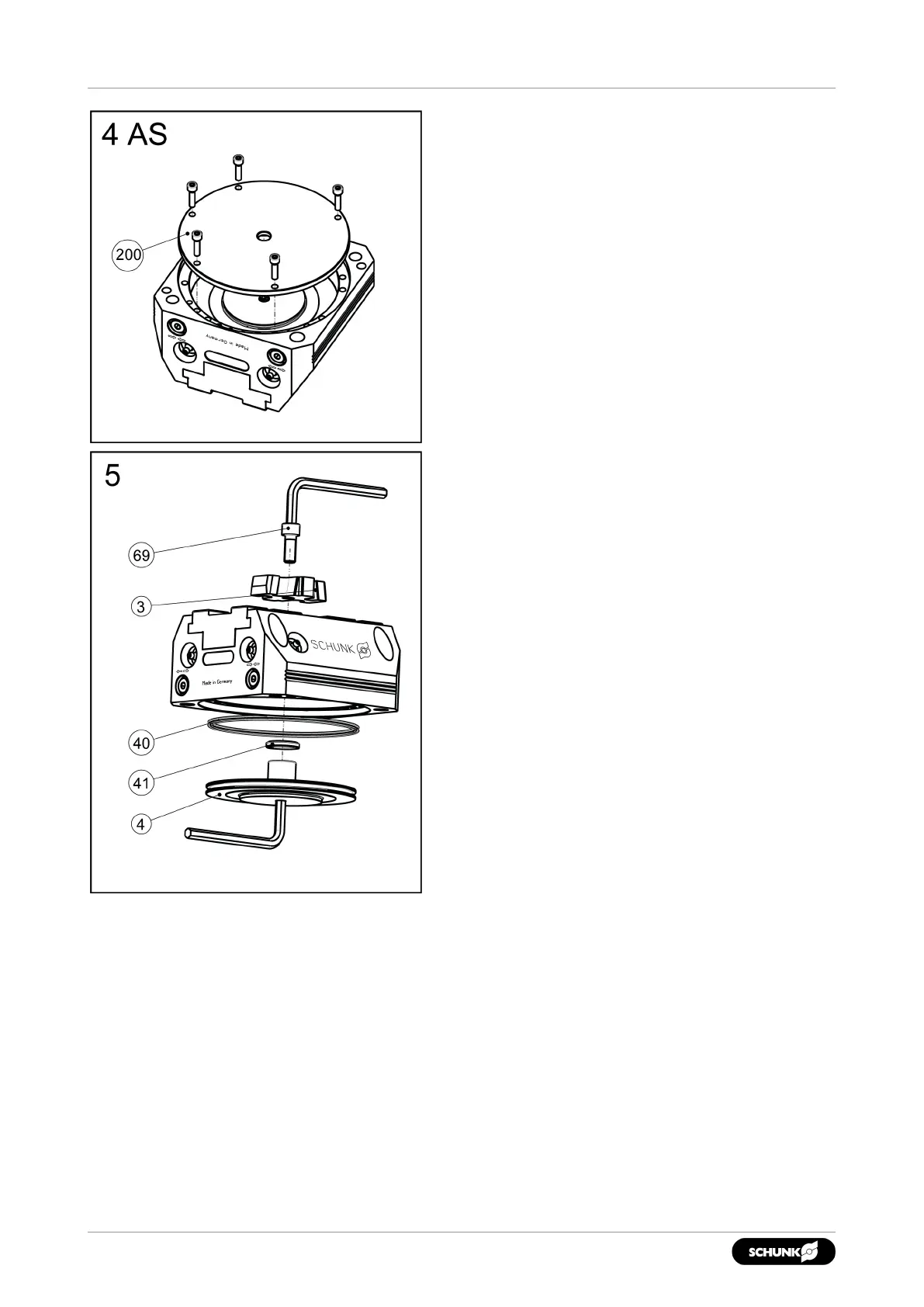

Variant with clamping force maintenance (AS)

Fasten mounting cover (200) with cheese-head

screws DIN EN ISO 4762. Mounting

cover

}

7.4.4 [

000]

for size 64: M3 x 12

for size 100: M5 x 8 -14

for size 140: M5 x 12 - 16

for size 160: M5 x 16 - 20

for size 250: M6 x 20 - 25

Variant without clamping force maintenance

Unscrew the screw (69) by holding it against

the cylinder piston (4).

Then pull the chuck piston (3) out of the

housing via its extraction thread. Then push the

cylinder piston together with the quad ring (40)

out of the housing. Remove the combination

sealing ring (41) from the housing.
