02.00 | KSP3, KSP3-LH, KSP3-F | Assembly and Operating Manual | en |
1463318

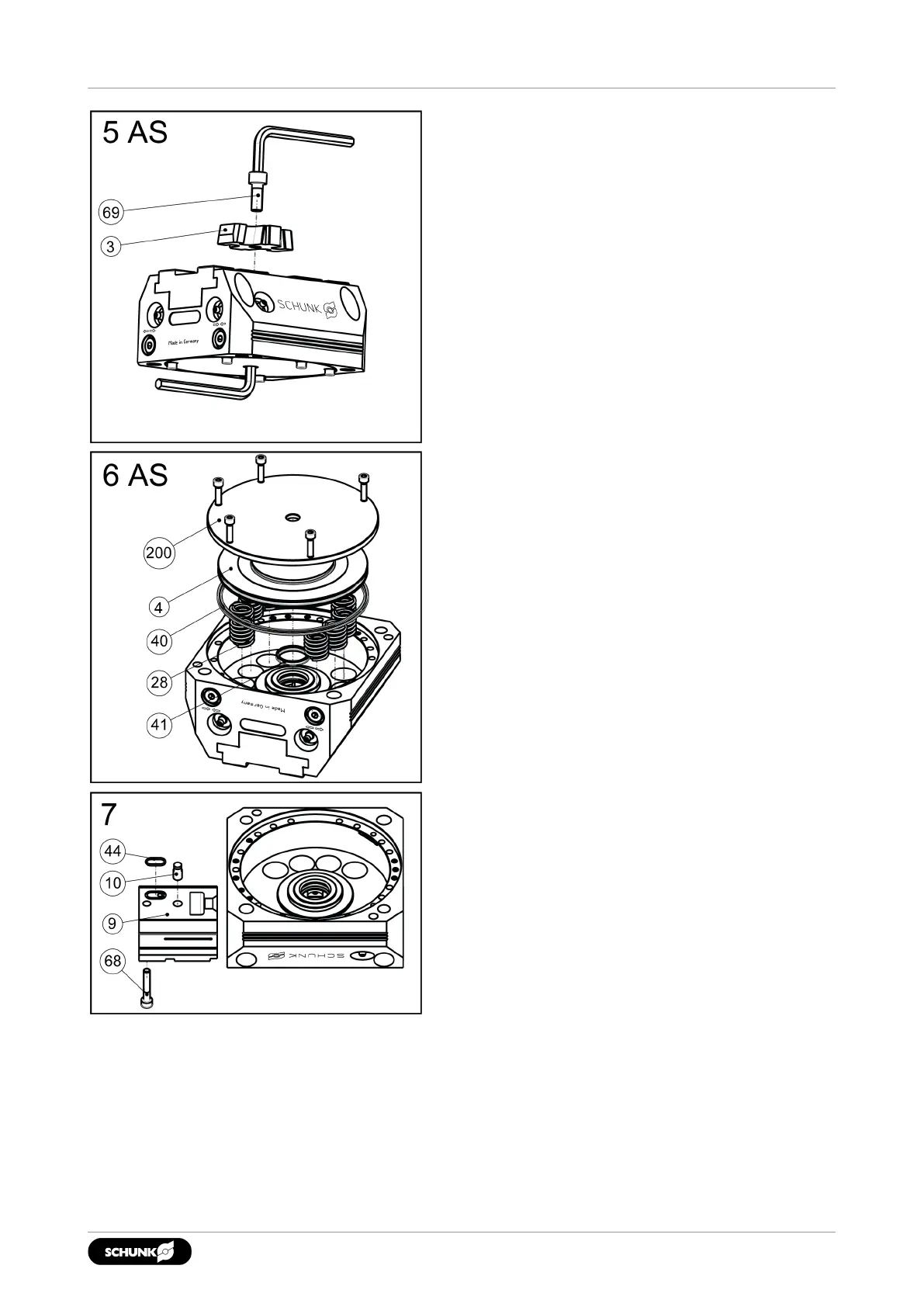

Variant with clamping force maintenance (AS)
Unscrew the screw (69) by holding it against
the cylinder piston (4).
Then pull the chuck piston (3) out of the
housing via its extraction thread.
Variant with clamping force maintenance (AS)
Warning! Risk of injury due to spring forces!
The cylinder piston and cover are under spring
tension!
Clamp the product between the base jaws (2)
and the mounting cover (200) using a suitable
device (e.g. press, vise) so that the screws in
the cover can still be removed.
Remove screws (65) and slowly open device
until compression springs are released.
Remove the mounting cover (200),
compression springs (28), combination sealing
ring (41) and cylinder piston (4) together with
the quad ring (40) from the housing.
Additionally for the KSP3-F variant:
Remove screw (68). Pull out the positioning
bolt (10) via its extraction thread with a screw
as far as the stop.
Pull the base jaw (9) out of the housing.
Variant "PM" also includes the O-ring (44).
