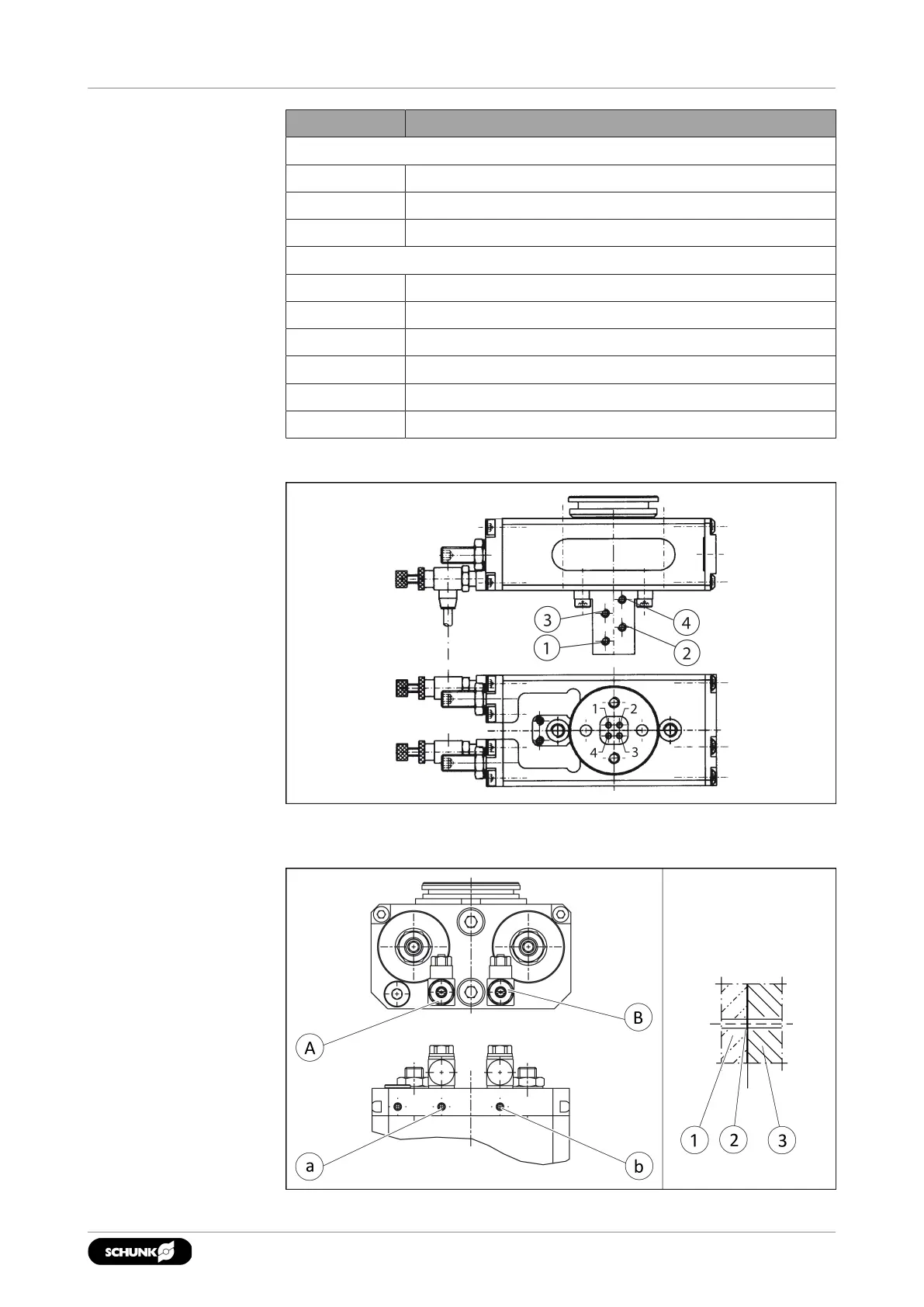

Assembly and settings
Designation Function
Main connections (Hose connection)
A swivel 0°/180° end position
B swivel end position with restricted swivel angle
C swivel 90° intermediate position
Hose-free direct connection
a swivel 0°/180° end position
b swivel end position with restricted swivel angle
c swivel 90° intermediate position
1 Attachment
2 O-ring
3 Product
• Use one-way-restrictors for connection.
Rotary transmission
lead through
Pinion-view with swivel unit on back stop counterclockwise, connections on the left side.
4.2.2 OSE 22 - 57
air connections
2103.00 | OSE | Assembly and Operating Manual | en | 1373804
