Assembly and settings
4.2.3 OSE 63
air connections

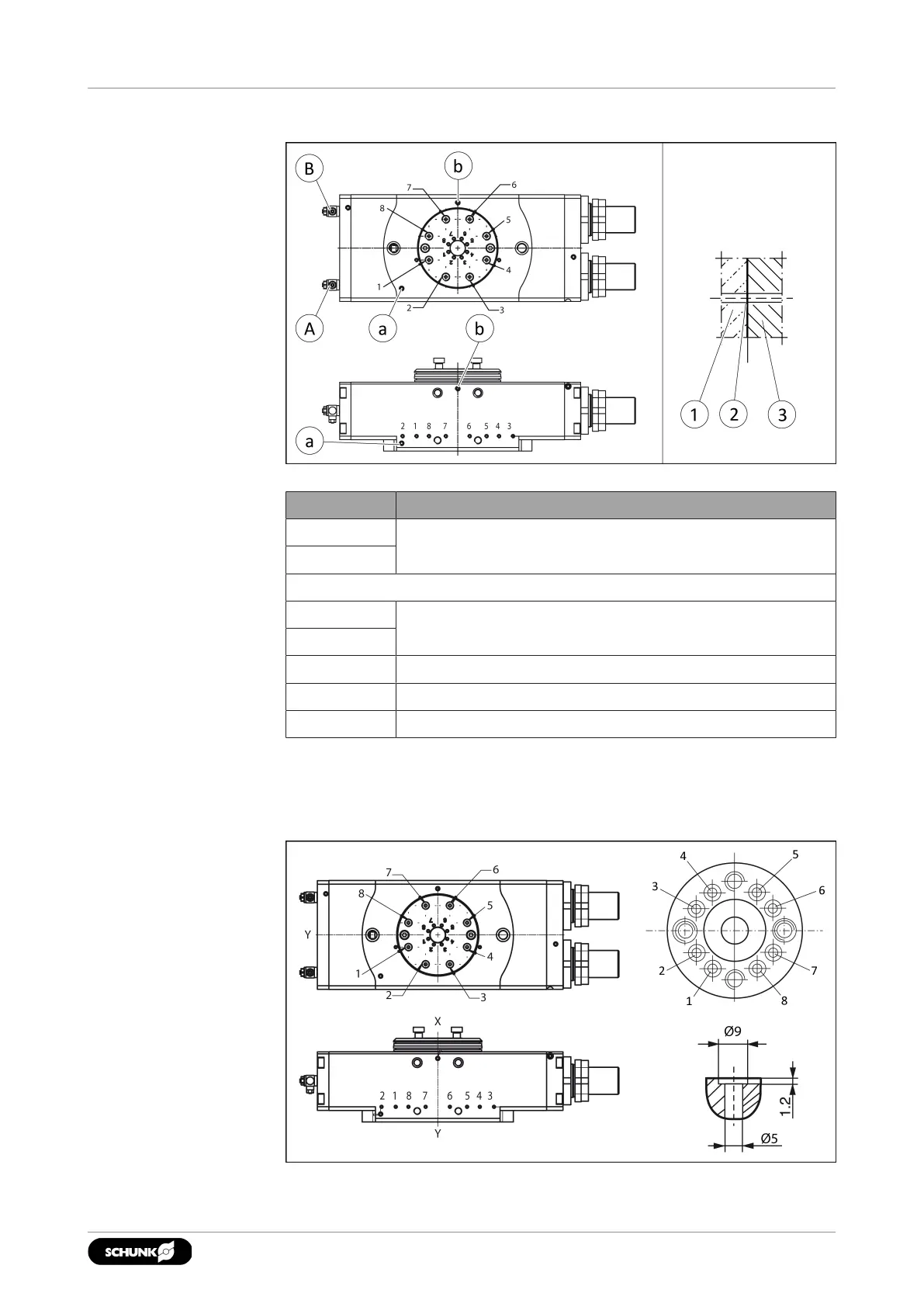

air connections A, B
Designation Function
A Main connections (Hose connection)
B
Hose-free direct connection
a
Hose-free direct connection at the base, Hose-free
direct connection at the side
b
1 Attachment
2 O-ring
3 Product
1. Use one-way-restrictors for connection.
2. With direct connection on both sides R 1/4" Seal thread with
screw plugs from accessory pack.
Rotary transmission
lead through
Pinion-view with swivel unit on back stop counterclockwise, connections on the left side.
