Maintenance
12.00 | SWS | Assembly and Operating Manual | en | 389456
127
7.10.11 SWS 041
Variant with external
piston stroke control
Variant without
piston stroke control

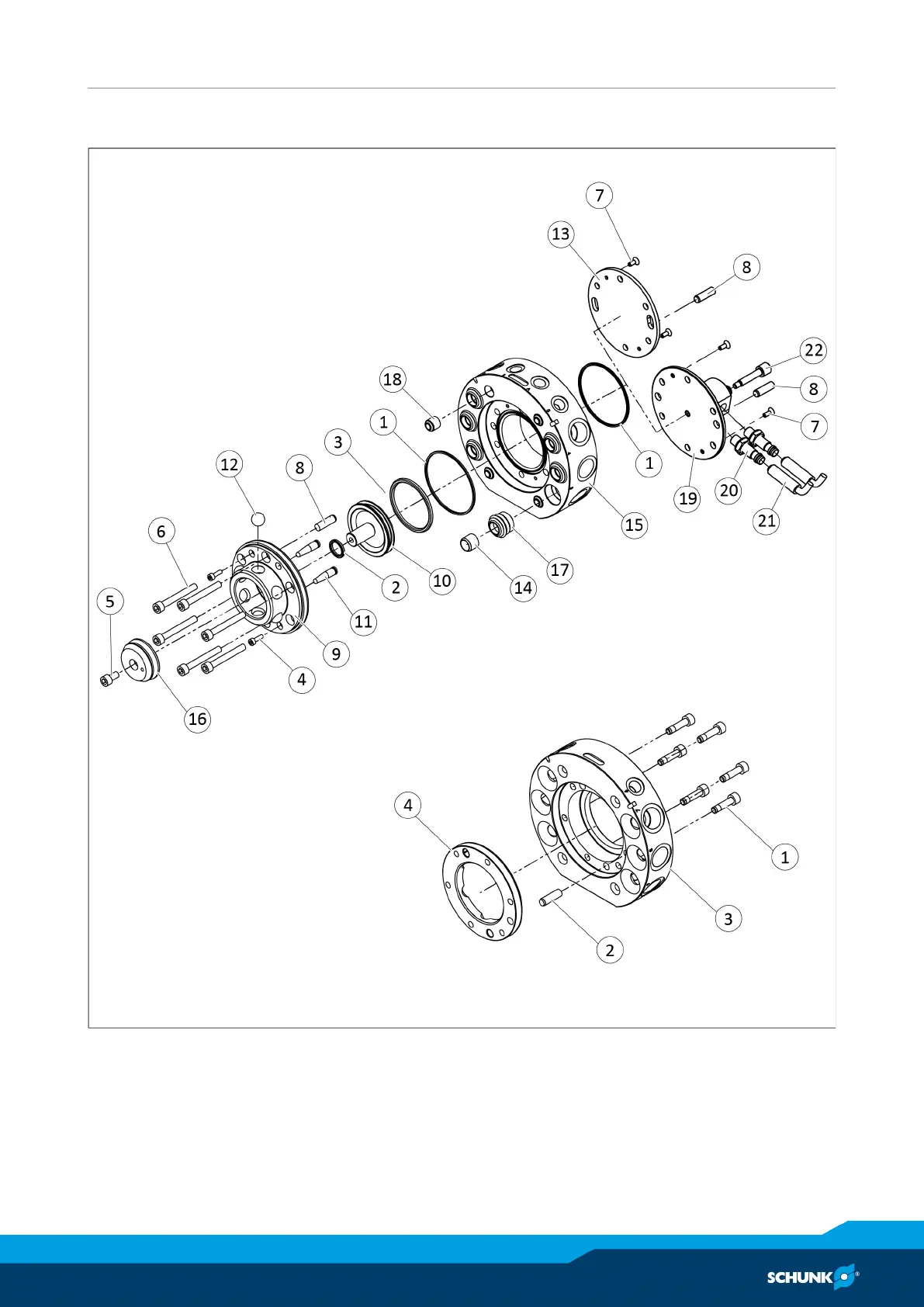

Assembly of SWK 041 (top) and SWA 041 (bottom)
