Design and description
12.00 | SWS | Assembly and Operating Manual | en | 389456
23
4.2.2 SWS 005
SWK

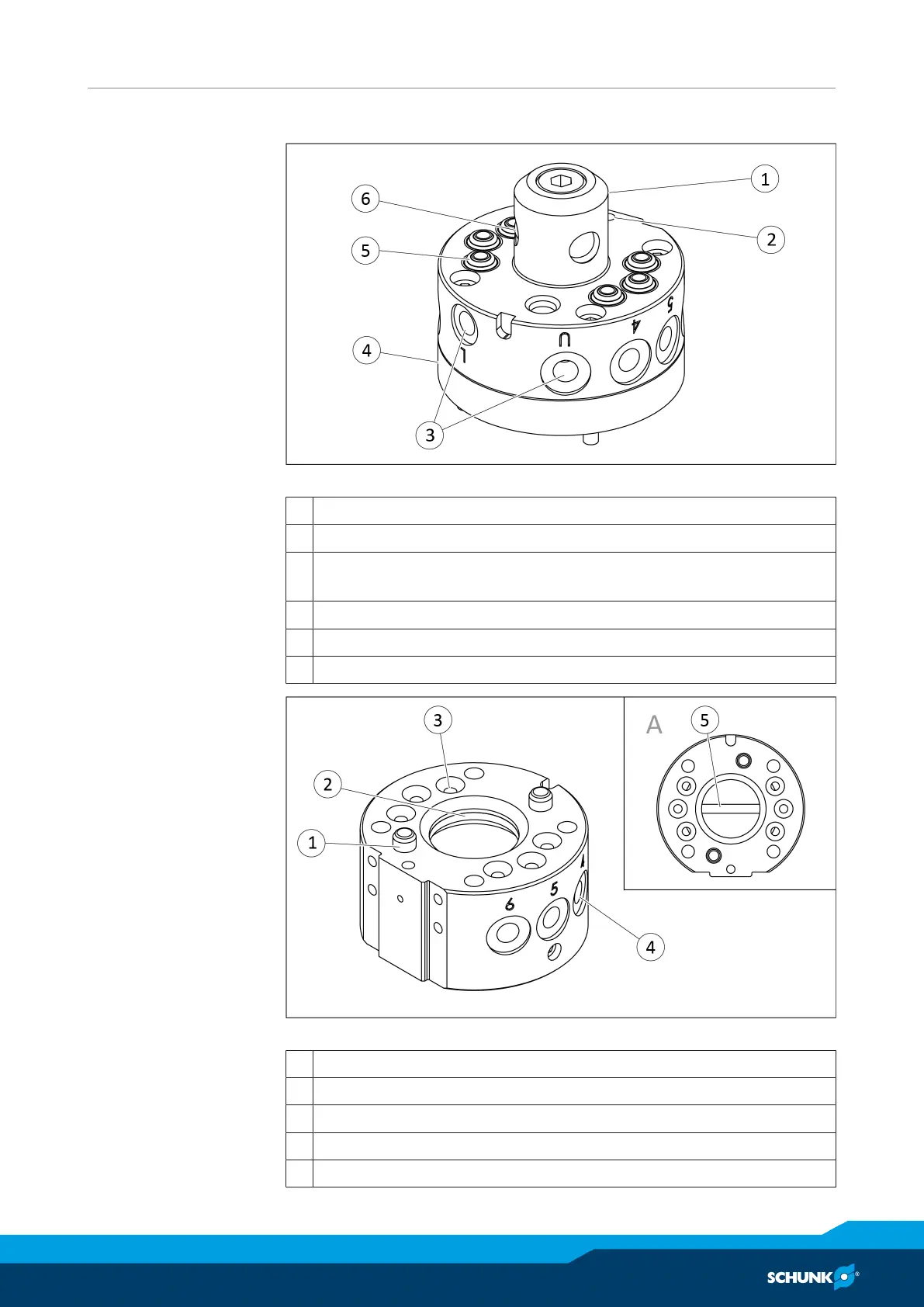

Design SWK005
1 Locking mechanism
2 Alignment pin bushing
3 Air supply lock and unlock
(observe reverse piston direction)
4 Cover plate
5 Pneumatic feed-through with rubber bushing
6 Locking ball
SWA
Design SWA005, A = view from above
1 Alignment pin
2 Bearing race
3 Pneumatic feed-through
4 Port for pneumatic feed-through
5 Release bolts
