Assembly
12.00 | SWS | Assembly and Operating Manual | en | 389456
65
5.3.7 SWS 020 / 021 / 041 / 060
Dimensions of the compressed air connections
SWS Pneumatic feed-throughs Air supply lock and unlock
020 12x M5 M5
021 8x G1/8" M5
041 6x G3/8", 4x G1/8" G1/8"
060 8x G1/8" G1/8"
NOTE
The rubber bushings are located at the SWS020 in SWA and not,
as shown here, in SWK.

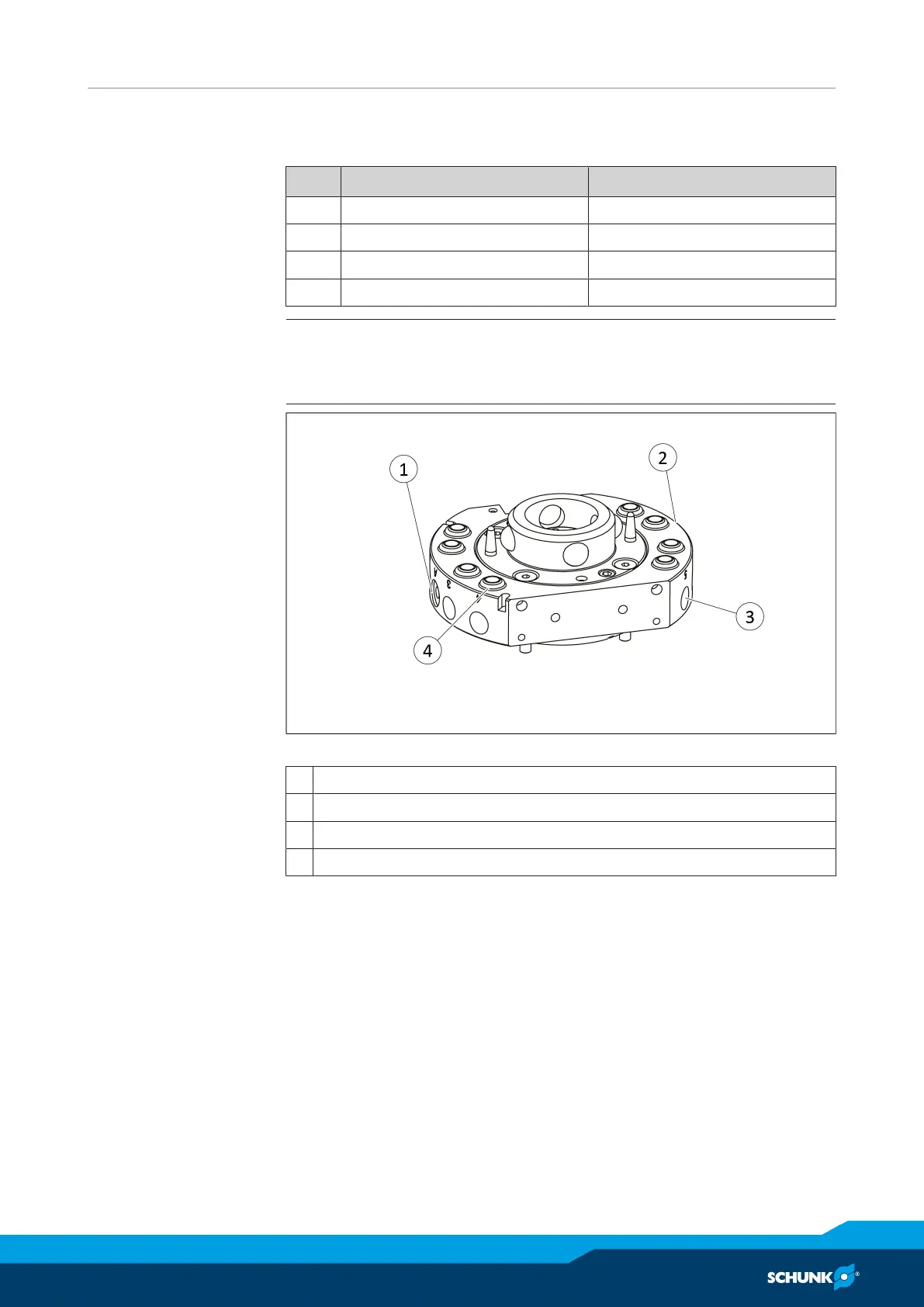

Pneumatic connection, shown as an example on SWK021
1 Air supply lock
2 Air supply unlock
3 Port for pneumatic feed-through
4 Pneumatic feed-through with rubber bushing
