SCHUNK SWS 005 - Replace Seals; Overview of the Seals

Maintenance
96
12.00 | SWS | Assembly and Operating Manual | en | 389456
7.6 Replace seals
7.6.1 Overview of the seals
NOTE
Information on the available seal kits in chapter Accessories [
}
8].

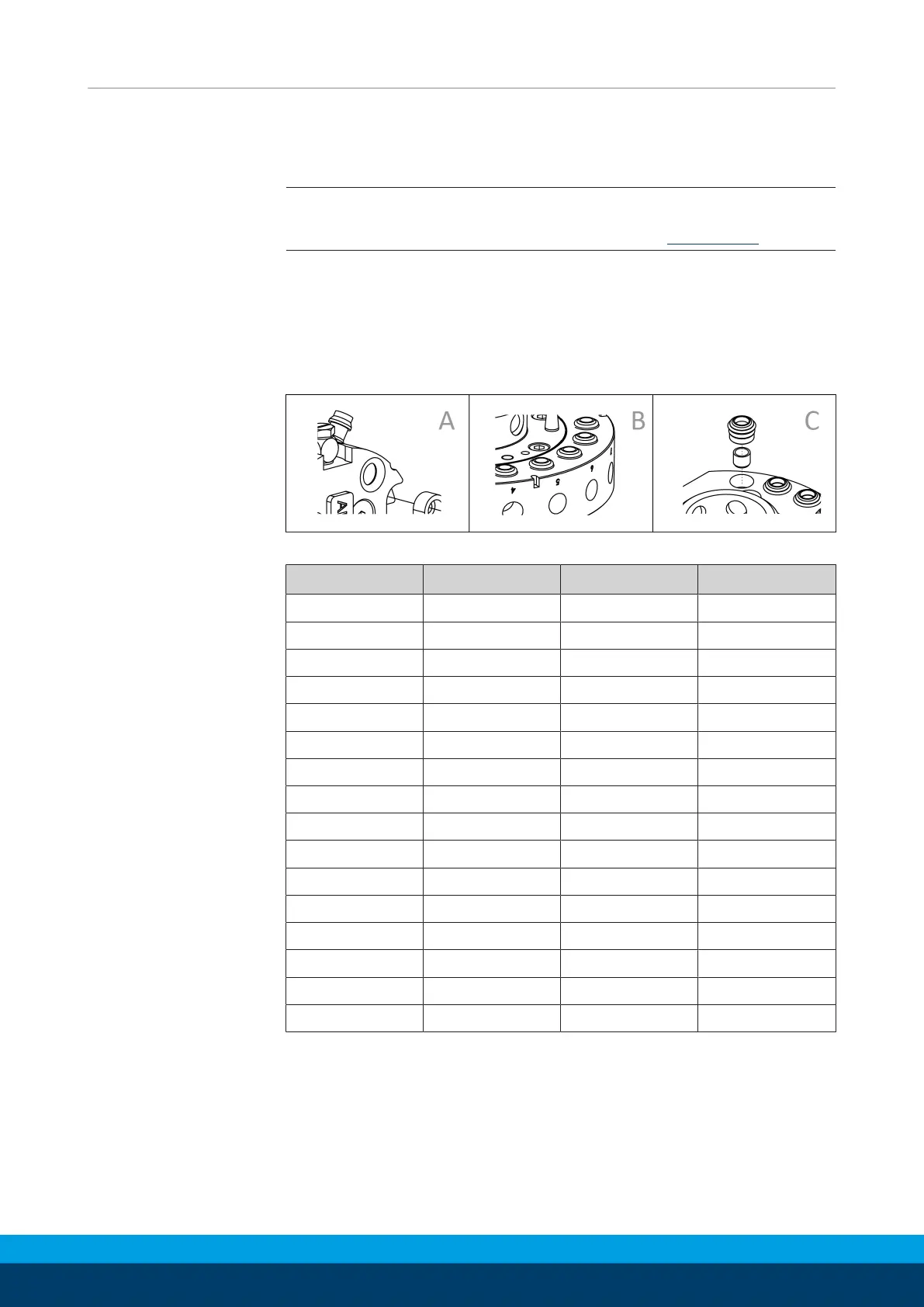

The seals on the pneumatic feed-throughs in the SWK may look as
follows:
• O‑ring(A)
• Rubber bushings(B)
• Rubber bushings with sleeve(C)
Seals on the pneumatic feed-throughs
SWS A B C
001 X
005 X
007 X
011 X
011HM X
020 X
020HM X
021 X
021HM X
040Q X
041 X X
046 X
071 X
076 X
110 X
160 X
