Assembly
12.00 | SWS | Assembly and Operating Manual | en | 389456
63
5.3.5
SWS 011

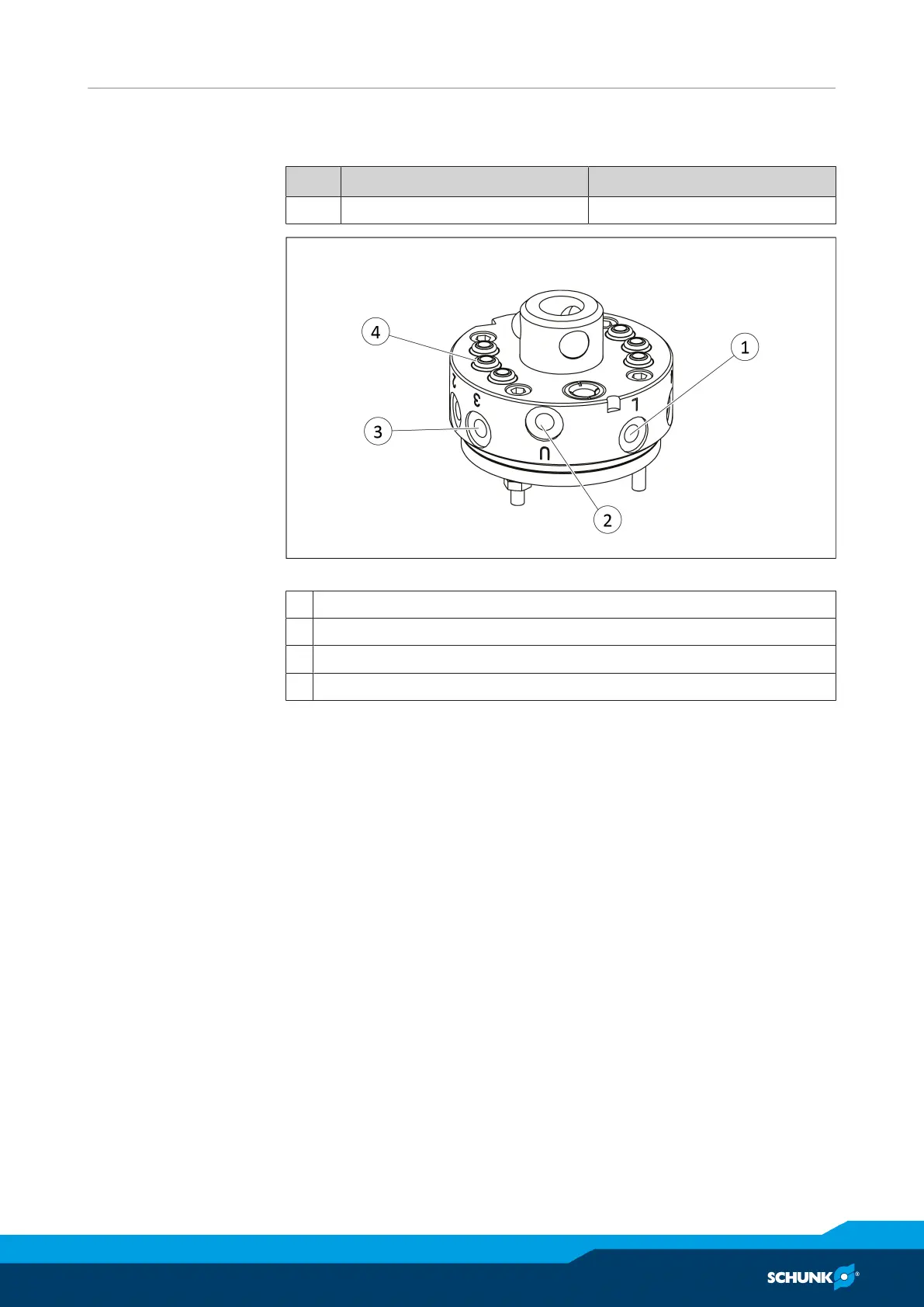

Dimensions of the compressed air connections
SWS
Pneumatic feed-throughs
Air supply lock and unlock
011
6x M5
M5
Pneumatic connection SWK011
1
Air supply lock
2
Air supply unlock
3
Port for pneumatic feed-through
4
Pneumatic feed-through with rubber bushing
62
64
