Maintenance
92
12.00 | SWS | Assembly and Operating Manual | en | 389456
SWS005
SWS011
Ø Place the SWA in the storage rack, secure and uncouple it.
Ø Switch off the power supply and ensure that there is no residual
energy in the system.
Ø Remove the compressed air hose.
Ø Disassemble the SWK from the robot and safely set the SWK
aside, Removing the product from the robot arm [
}
90].

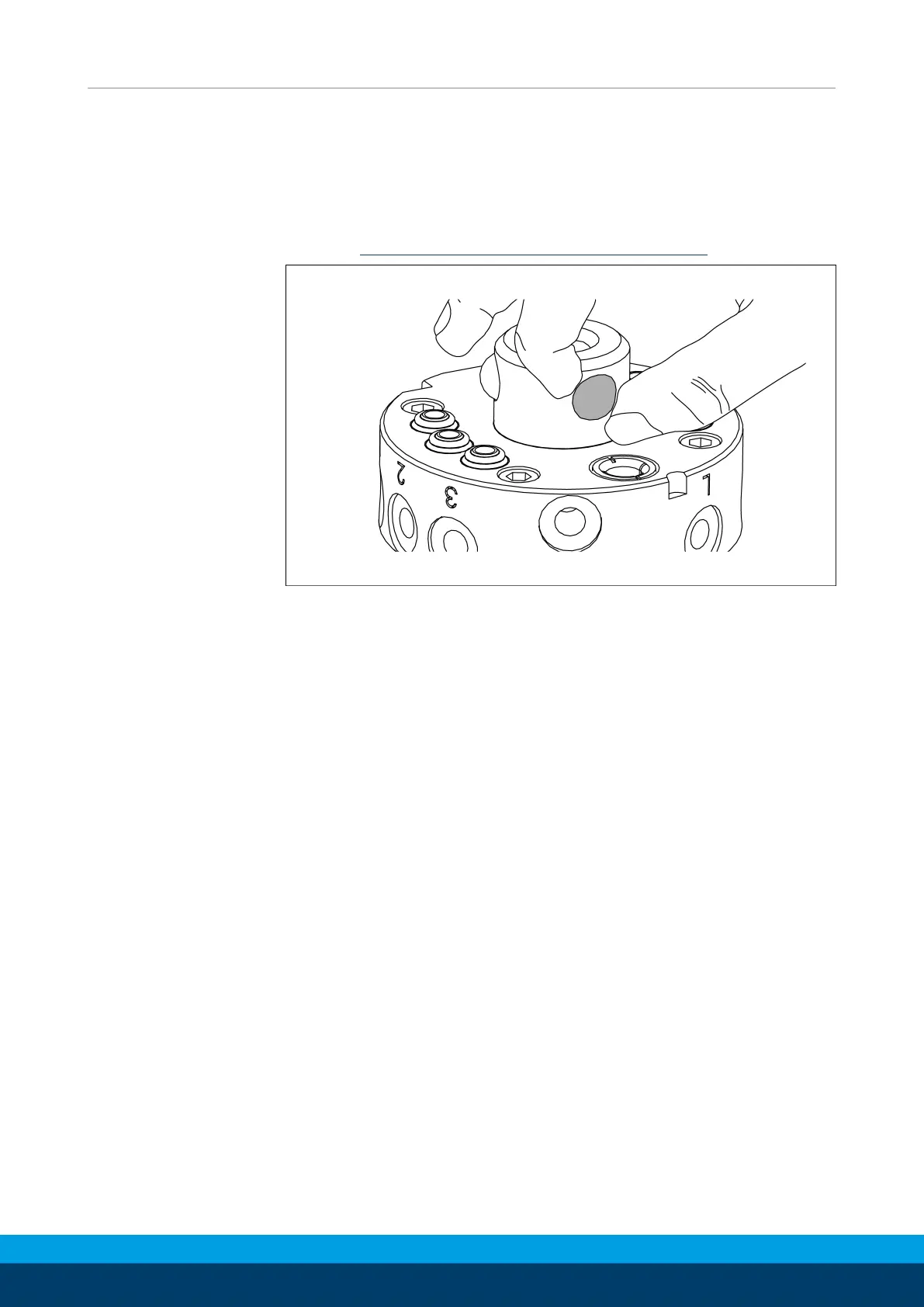

Check that the locking balls on the SWK can move
Ø Check locking balls. Each ball must move freely in the ball
bearing.
Ø Loosen stuck balls and clean with a clean cloth.
