- 13 -
1.6. Cables
1.6.1 Power cable
Power cable is the 7-core butyl sheath shield cable with a 7-core hole-plug end connected to
the controller and each core at the other end of the cable is crimped with binding terminal to
connect to the bending machine. The number, color and function of the cores are shown as
follows:

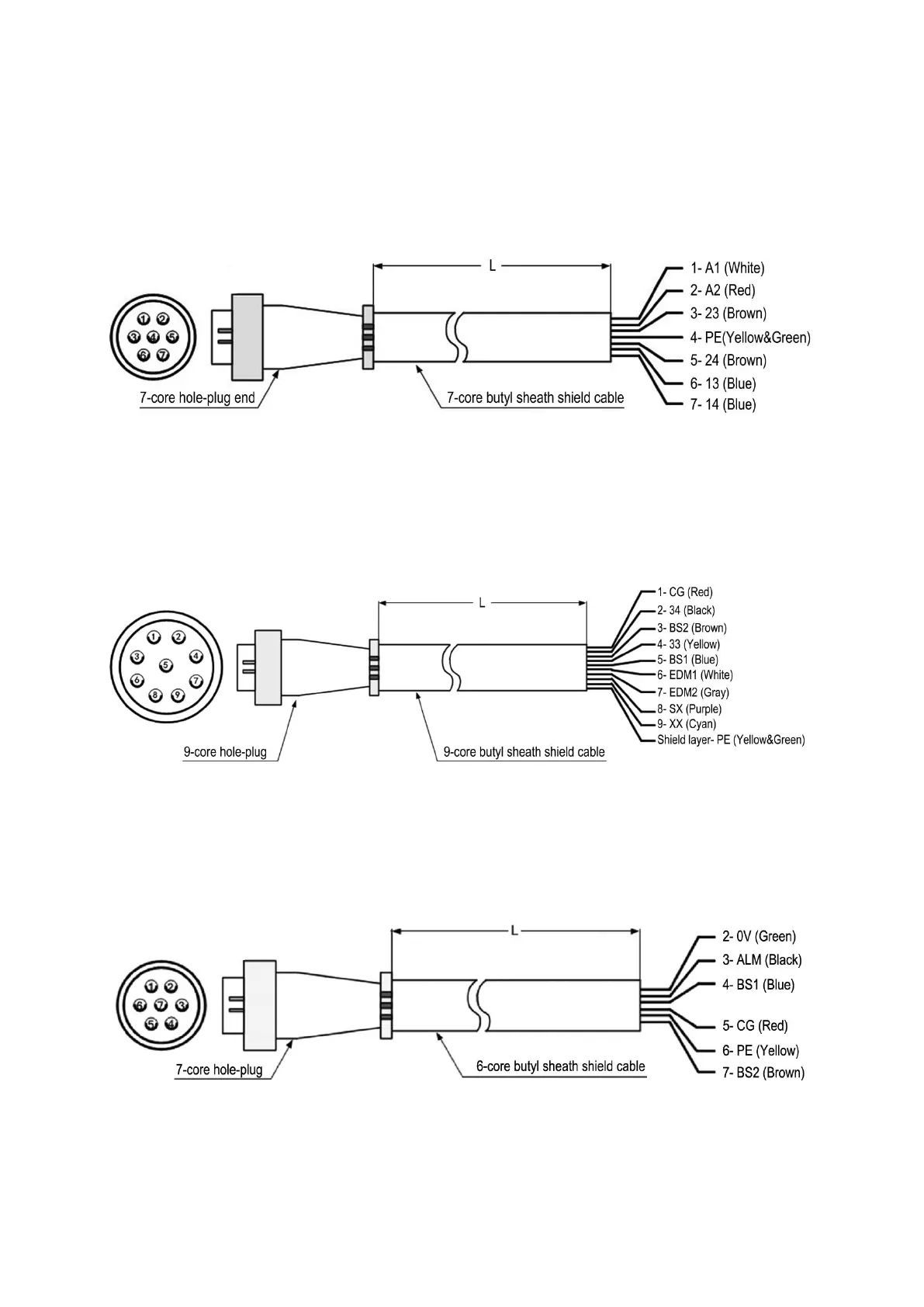

Fig.1.10 Power cable
1.6.2 Signal cable
Equipped with signal cable for SR/SP controller
The signal line with SR / SP controller adopts 9-core butyl sheath shield cable, one end is
9-core hole-plug, which is connected with the controller, and the other end is connected with
each wire core crimping terminal, which is connected with the bending machine. The serial
number, color and function of each core are shown in the figure below:
Fig.1.11 Signal cable for SR/SP controller
Equipped with signal cable for ST controller
The signal line for ST controller is a 6-core shielded cable, one end is a 7-core aviation plug,
which is connected with the controller, and the other end is connected to the bending machine
by crimping terminals. The serial number, color and function of each core are shown in the
figure below:
Fig.1.12 Signal cable for ST controller
