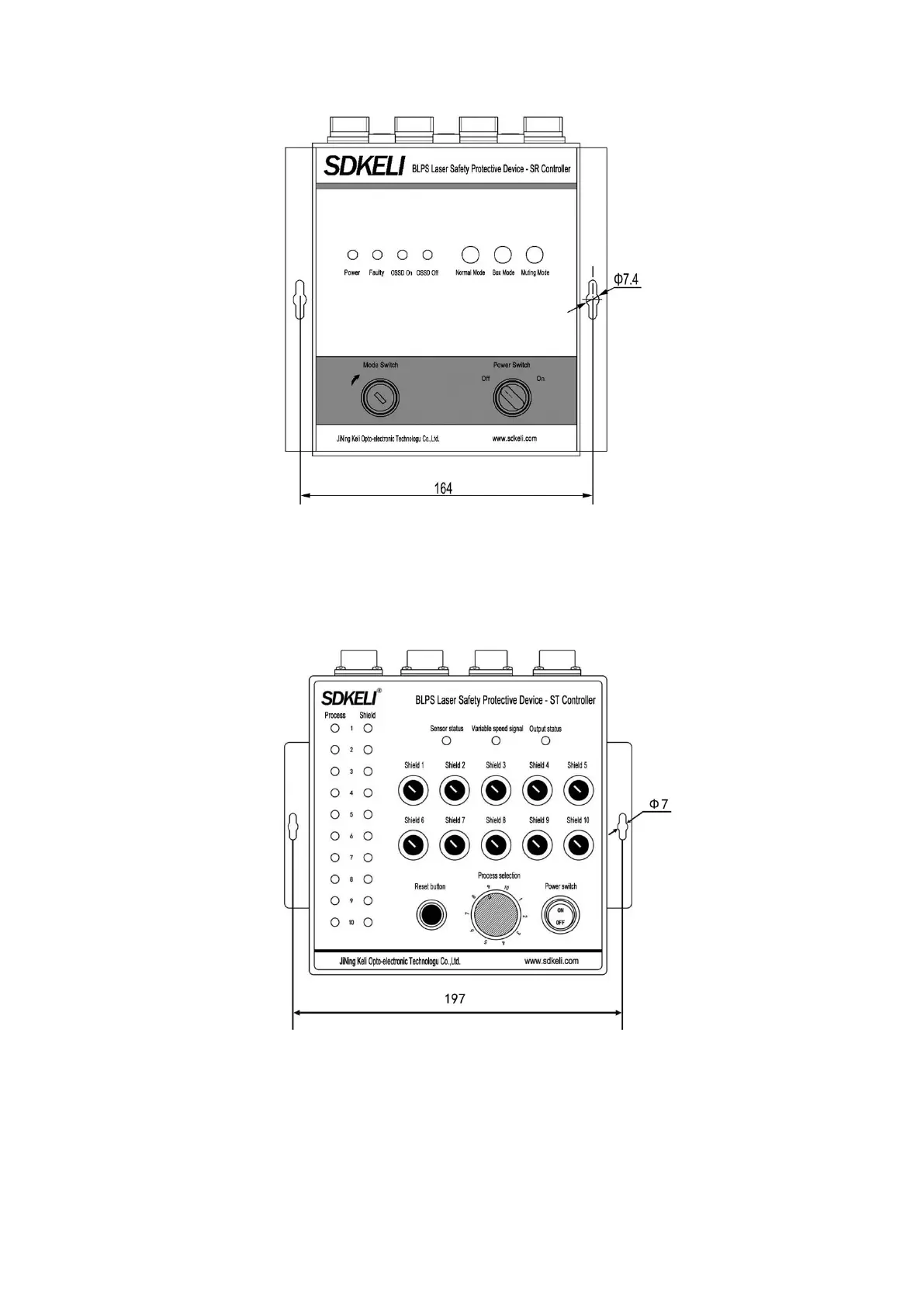

Fig.3.15 Mounting dimensions of SR/SP controller
3.3.2 Installation of ST controller
The ST controller is installed on the front of the upper die slider of the bending machine,
where it is convenient for workers to operate, using two M6 × 12 screws to fix.
Fig.3.16 Mounting dimensions of ST controller
3.4 Installation of optional accessories
If the bender can not provide muting point signal, it is can be provided by optional accessories
(limit switch or approach switch).
