- 36 -

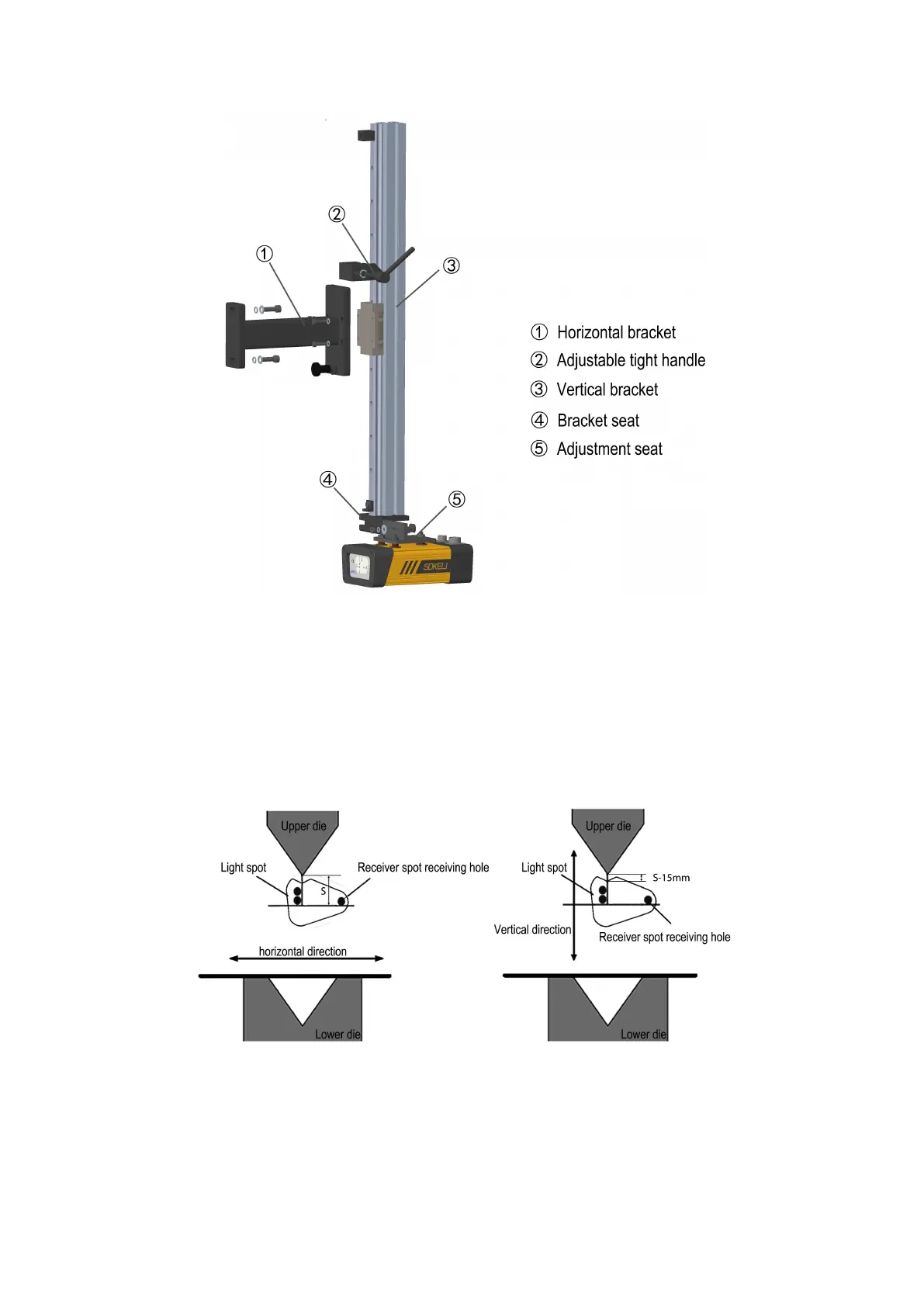

Fig.3.10 Installation diagram
3.2.4 Light debugging
When BLPS is installed on site, the positional relationship between the laser spot and the die
tip of the bending machine is very important. The correct position setting can effectively
protect the personal safety of the operator, and the wrong position setting may make the laser
safety protection device lose its protective effect. Or affect the production efficiency of the
equipment.
BLPS spot position setting includes horizontal and vertical directions.
Fig.3.11 Detecting beam position
Check the position of the beam
Aiming aid is attached to both ends of the upper die, and move the alignment aid to the tip of
the upper die within the 5mm light-passing strip.
