1.6.3 Transmission cable
 Single-end cable

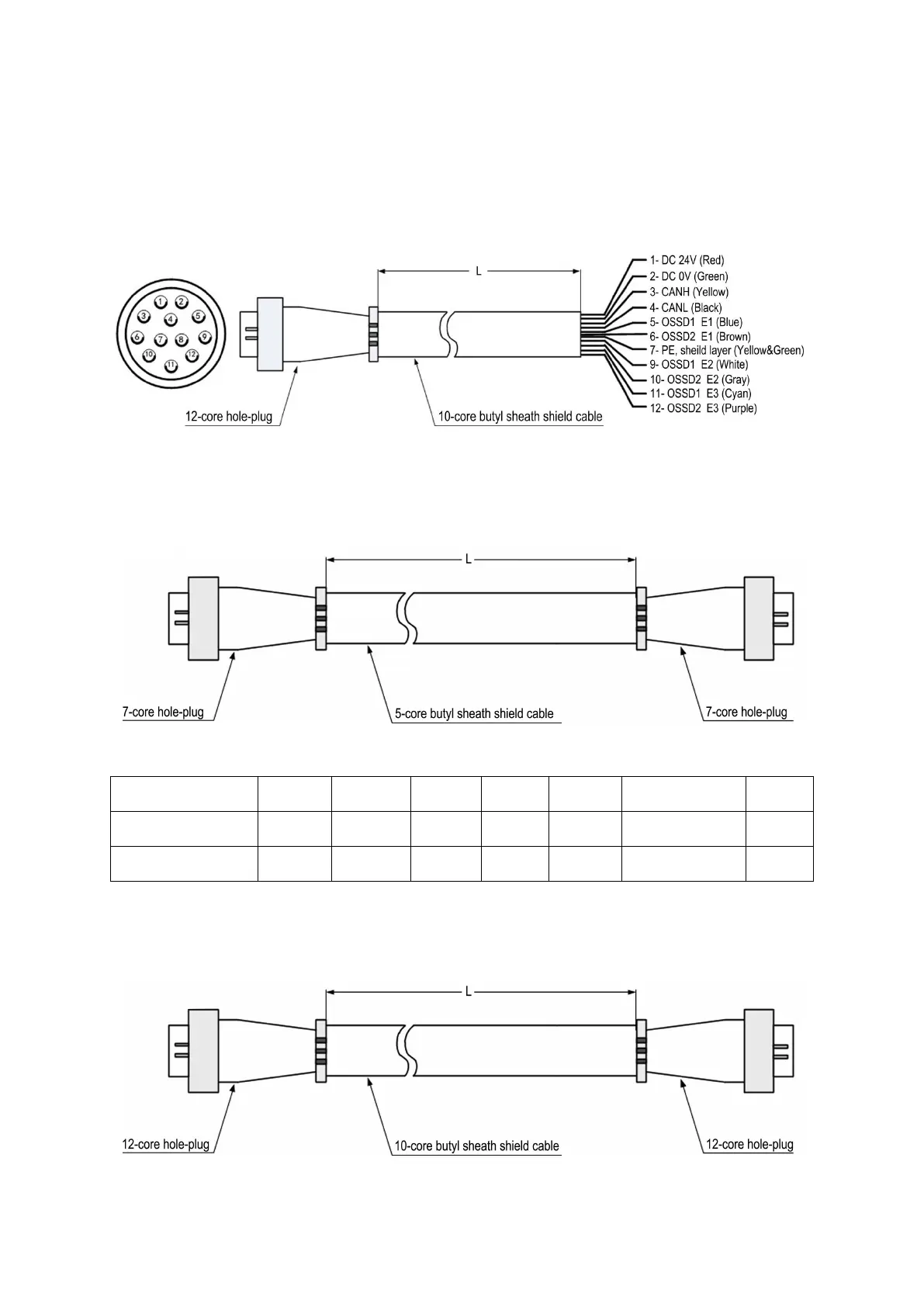

The single-ended transmission line uses a 10-core butyl sheath shield cable, one end is a
12-core hole-plug, which is connected to the sensor, and the other end is crimped to the
terminal with each core and connected to the bending machine. The serial number, color and
function of each core are as shown in the figure below:
Fig.1.13 Single-end cable
 Double-end cable(Emitter to Receiver)
The transmission cable is a 5-core butyl sheath shield cable with 7-core hole-plugs at both
ends, which is connected with the sensor. The serial number, color and function of each core
are shown in the figure below:
Fig.1.14 Double-end cable(Emitter to Receiver)
Socket pin
1
2
3
4
5
6
7
Signal definition
Q
GND
-
-
VCC
PE
-
Wire color
Yellow
Green
-
-
Red
Yellow&Green
-
 Double-end cable(Receiver to Controller)
The transmission cable is a 7-core butyl sheath shield cable with 12-core hole-plugs at both
ends, which is connected with the sensor. The serial number, color and function of each core
are shown in the figure below:
Fig.1.15 Double-end cable(Receiver to Controller)
