SDKELI BLPS-D3L - Installation of ST Controller; Installation of Optional Accessories

- 29 -

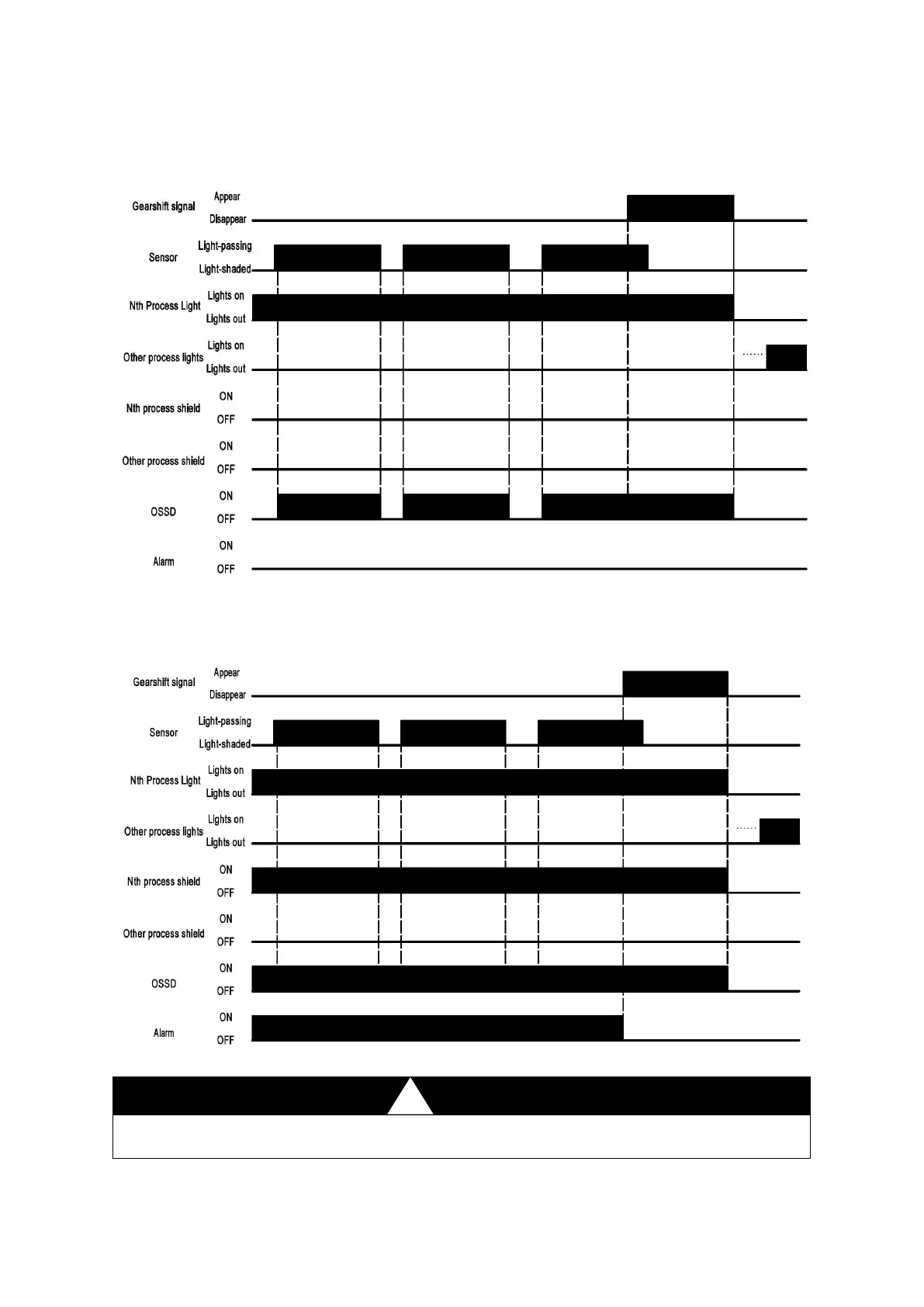

 St type normal function timing diagram:
The front protective area laser (L1) of the normal mode sensor is shielded, and the middle
protective area laser (L2, L3) plays a protective role.
Fig.2.11 ST-type controller normal function timing diagram
 ST type shielding function timing diagram:
Rejection mode: All lasers (L1, L2, L3) are shielded.
Fig. 2.13 ST-type controller shielding function timing diagram
!
WARNING
The muting mode may be selected when the bender processes complex shape workpiece.
Other protection measures should be taken to protect the operator under this mode.
