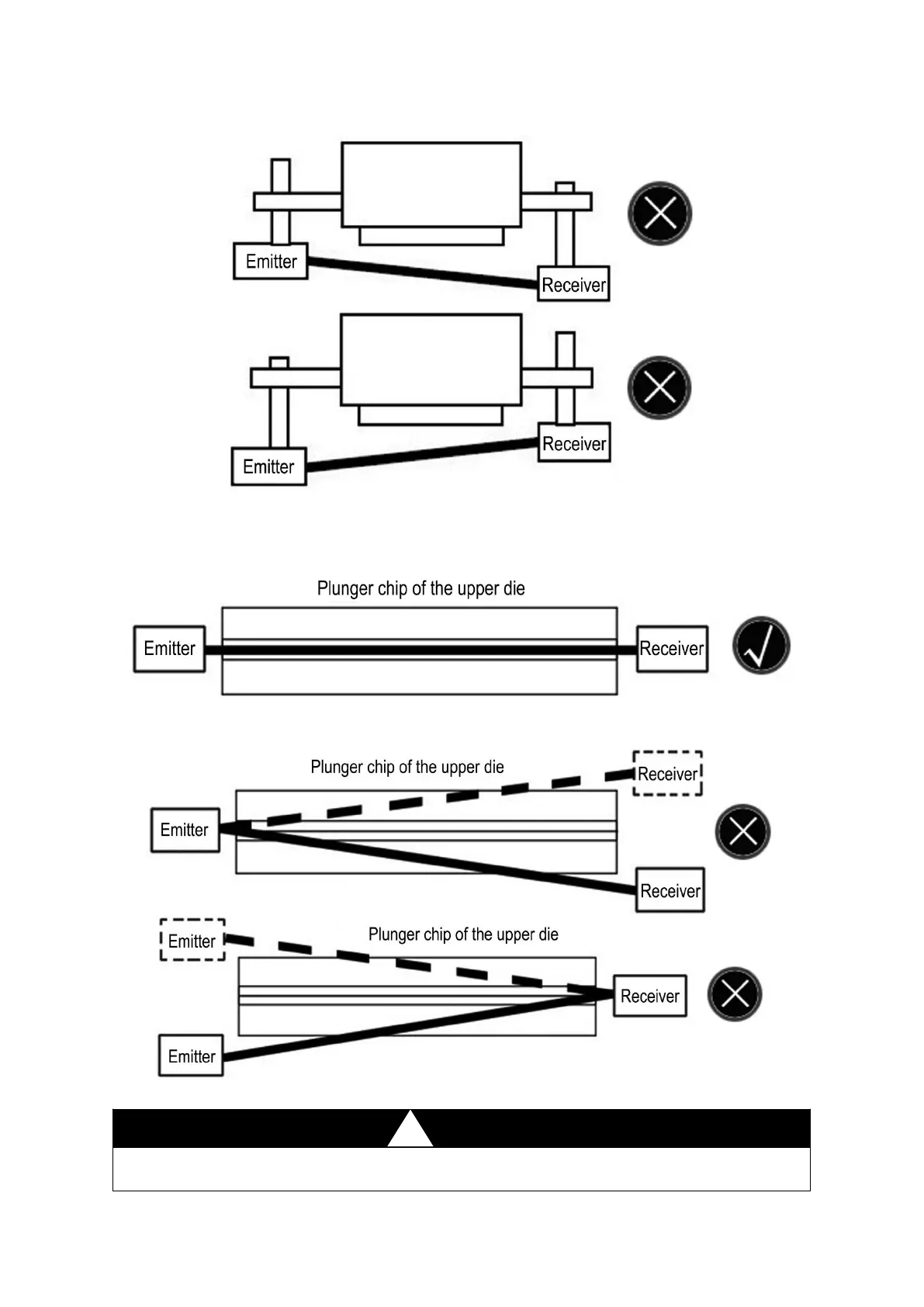

Wrong mounting diagram
The height of the emitter is not the same as the receiver
 The horizontal mounting diagram of the detecting sensor of BLPS.
Right mounting diagram
The emitter and receiver are aligned right, the detecting beam parallels the upper die tip
Wrong mounting diagram
The emitter and receiver are not aligned right, the detecting beam does not parallel the upper die tip
!
WARNING
BLPS must be installed in the right way, otherwise, it will lose the protective function,
resulting in serious injury.
