9.3 Getting data
Press the M button.

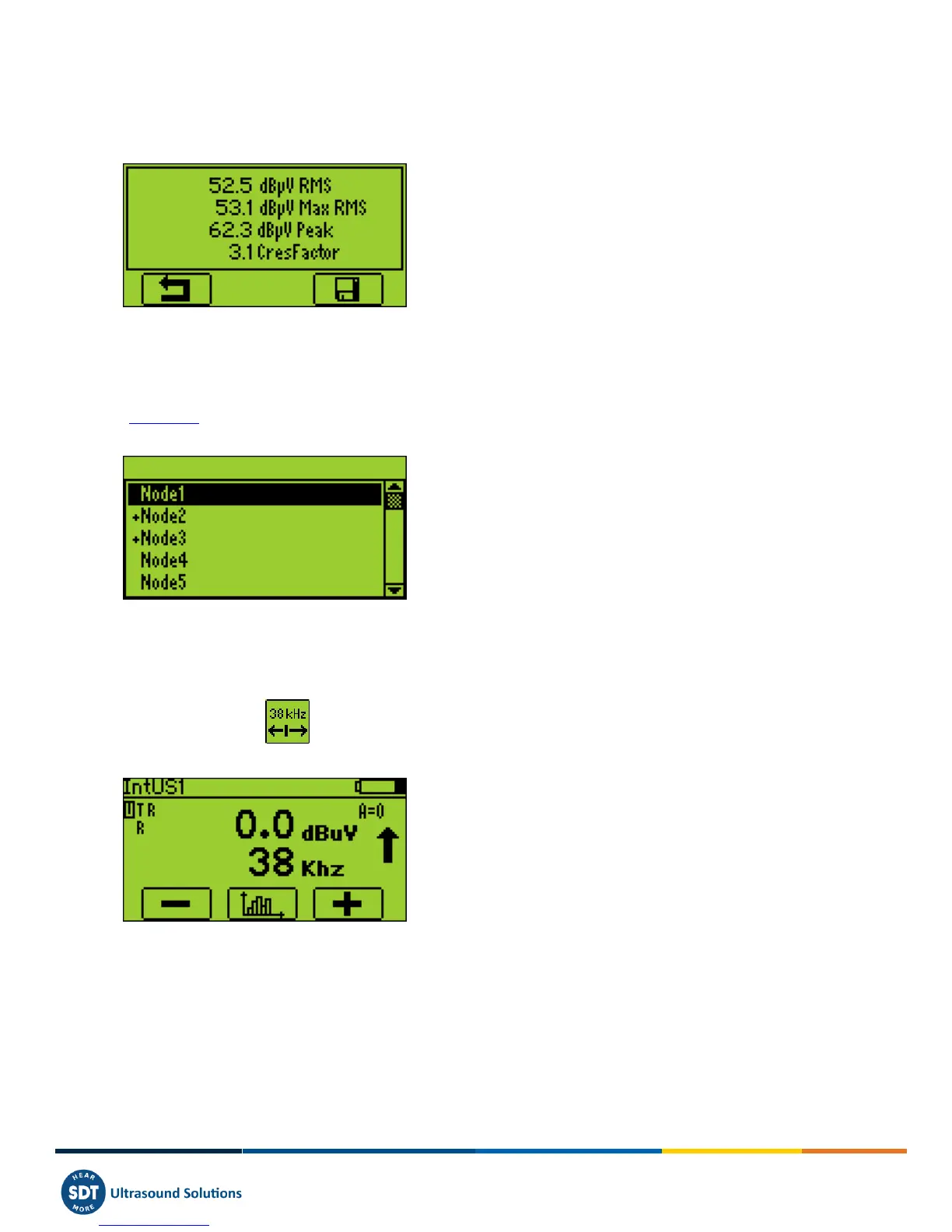

At the end of the computation time, a screen detailing RMS, Max RMS, Peak and Crest factor values, is displayed:
Press the F1 button to come back to the measurement screen without saving.
9.4 Saving Data
This feature is not available on the SDT270 SB version. To check your SDT270 version, please refer to the chapter
"System Info".
At the end of the computation time, press the Store button to save the data.
Then choose the desired memory location using the Up and Down arrow buttons and confirm by pressing the Enter
button.
9.5 Modify the mixer frequency
Press F2,select the icon then press Enter.
The mixer frequency is adjustable from 10 kHz to 128 kHz by using F1 to decrease the frequency and F3 to increase it.
