Seca 452 - For Service Technicians: Servicing and Repairing the System; Retrofitting seca 703 column scale

84 • secaconnect 103/seca 452
17-10-01-266-002a/07-2018B
FOR SERVICE TECHNICIANS: SERVICING AND REPAIRING THE
SYSTEM
English
1. ABOUT THIS DOCUMENT
NOTE
• The topics described in this part of the user documentation are
exclusively intended for seca trained service technicians.
• Observe the information for administrators ➔ For administrators:
Setting up and operating the system.
2. RETROFITTING SECA 703 COLUMN SCALE
You need the following parts from set no. 4520050009:
➔ Retrofitting seca 703 column scale ➔ For administrators: Setting up and
operating the system
➔ Preparing the scale
➔ Installing the seca 452 interface module
➔ Installing the scanner bracket
➔ Connecting a seca 452 interface module
➔ Performing final work

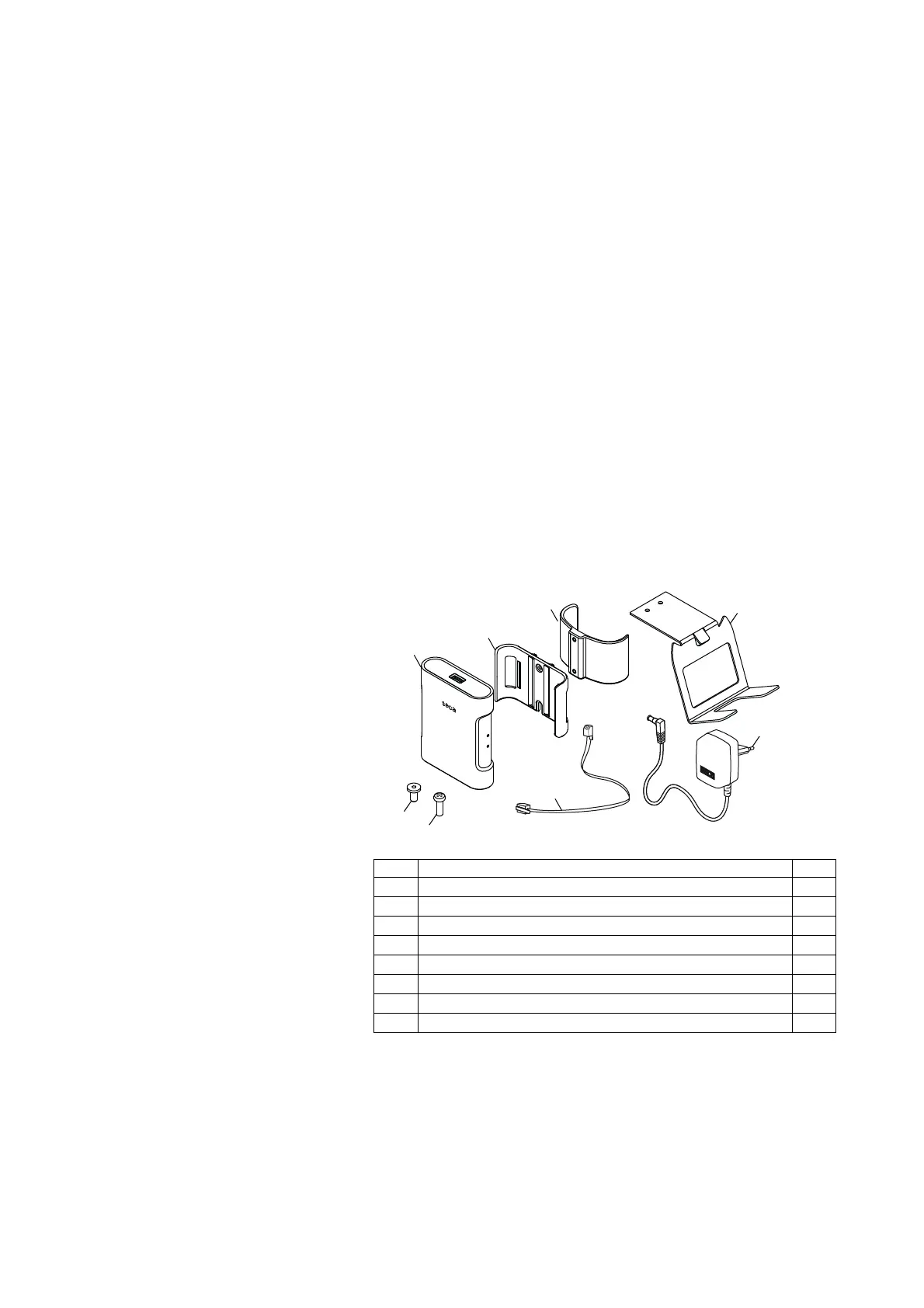

Pos. Component Pcs.
a
seca 452 interface module 1
b
Bracket 1
c
Column bracket 1
d
Scanner bracket 1
e
Power supply unit 1
f
Connecting cable, short 1
g
Cross-head screw 2
h
Hex head socket screw 2
a
b
c
d
e
f
g
h
