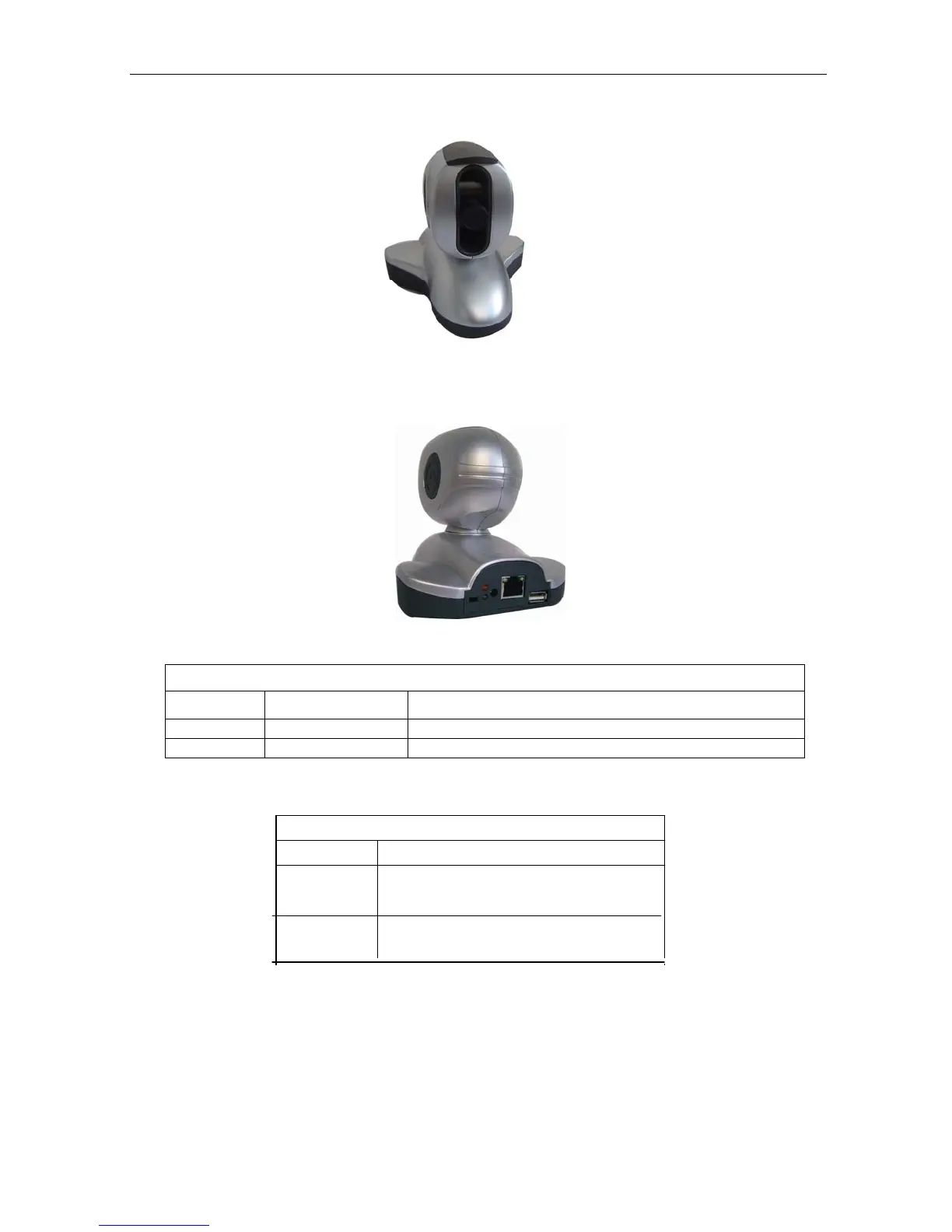

Fig.2 IP Camera Front View
Fig.3 IP Camera Back View
Light Indictors on IP Camera
Light color Signal definition Condition description
Green Power state On: Normal power
Orange Logon state
On: When a user is logged on and receiving images.
Fig.4 IP Camera Status LED Indicator
Light indicators on IP Camera LAN Port LED
Light color Condition description
Green
On: Connection speed is 100M
Flash: Data transmitting/receiving
On: Connection speed is 10M
Yellow
Flash: Data transmitting/receiving
Fig.5 IP Camera LAN LED Indicators
IP Camera Manual 6
