OmniHub CMP201– User Manual
Page 10 of 103
1.1 Product Overview
OmniHub CMP201 is a new generation of Compact Media Platform in Modular design which
focuses on cost-effective commercial TV market and traditional DTV market. This is a 1RU
chassis with single or dual power supply unit and six hot modules at the back of the unit. Thanks
to the benefit of high-density, strong-performance and large-flexibility, OmniHub CMP201
product can meet all the major video delivery requirements or signal receiving, descrambling,
encoding, multiplexing, modulation and IP processing depending on variety of model.
With powerful embedded Gigabit switch, optional commercial/broadcast encoder and multi-
mode receiver and modulator modules, it can be configured flexibly to meet any video delivery
requirements .Due to its compact design and powerful function, it can be widely used at hotel,
hospital, community, club, campus and DTV headend room where massive programs are
required to be processed in a cost-effective way. CMP201 also provides a straight-forward web
interface accessible via all major browsers and complete control of the unit. Every CMP201
ships with the software suite pre-loaded on appropriate hardware. The physical connectors
available on the back of the chassis will be depending on the optional input/output configuration.
1.2 Front Panel Overview

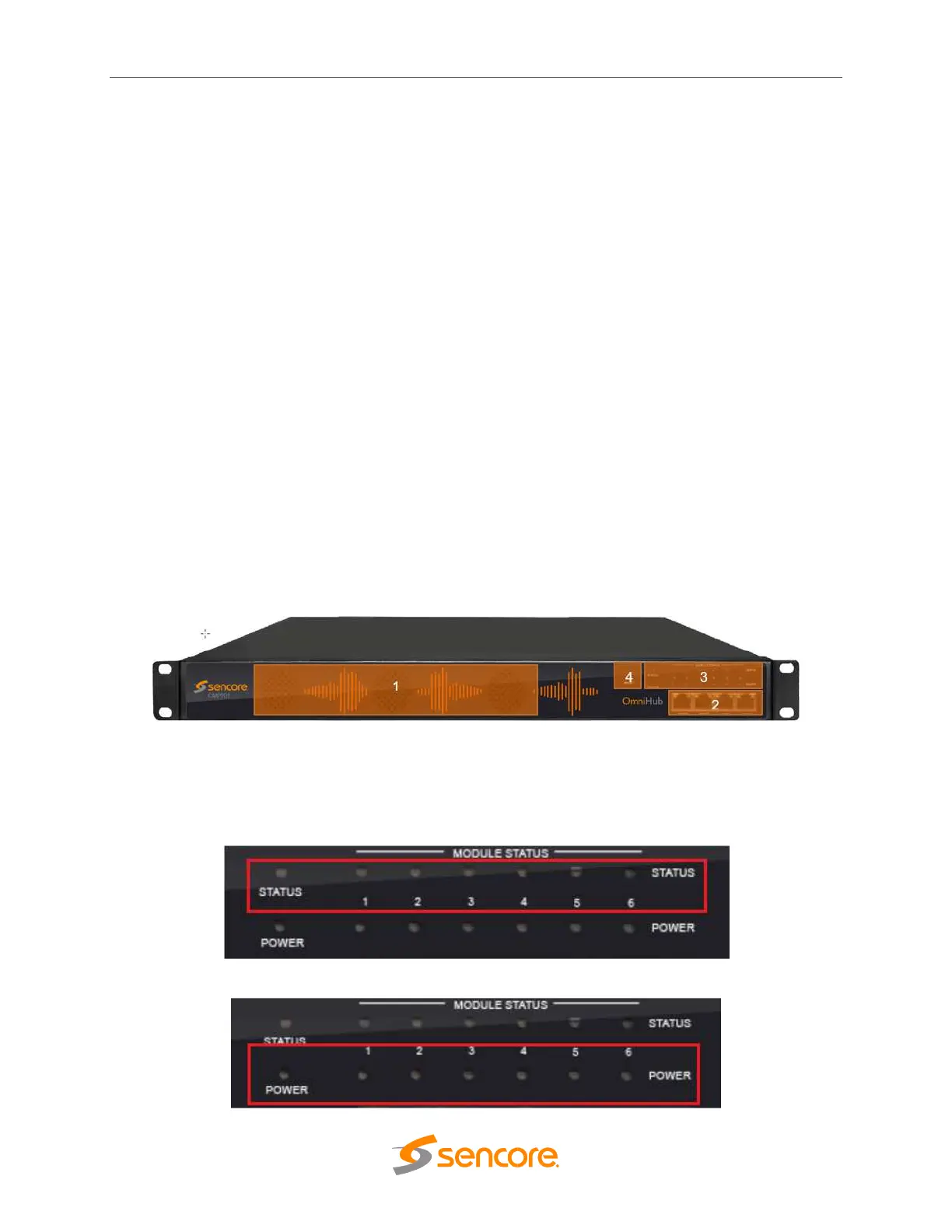

OmniHub CMP201 is a 1RU unit with exhaust fan on the front, Data ang
management port, and LED for the status of the unit. See image below for
the Front panel of CMP201 for reference.
1. Cooling Air Intake
2. Four 1Gbe RJ45 ports: two for management and two for MPEG over IP purposes
3. Status indicators of chassis and modules
4. Reset Button
Power indicators of chassis and modules
