OmniHub CMP201– User Manual
Page 53 of 103

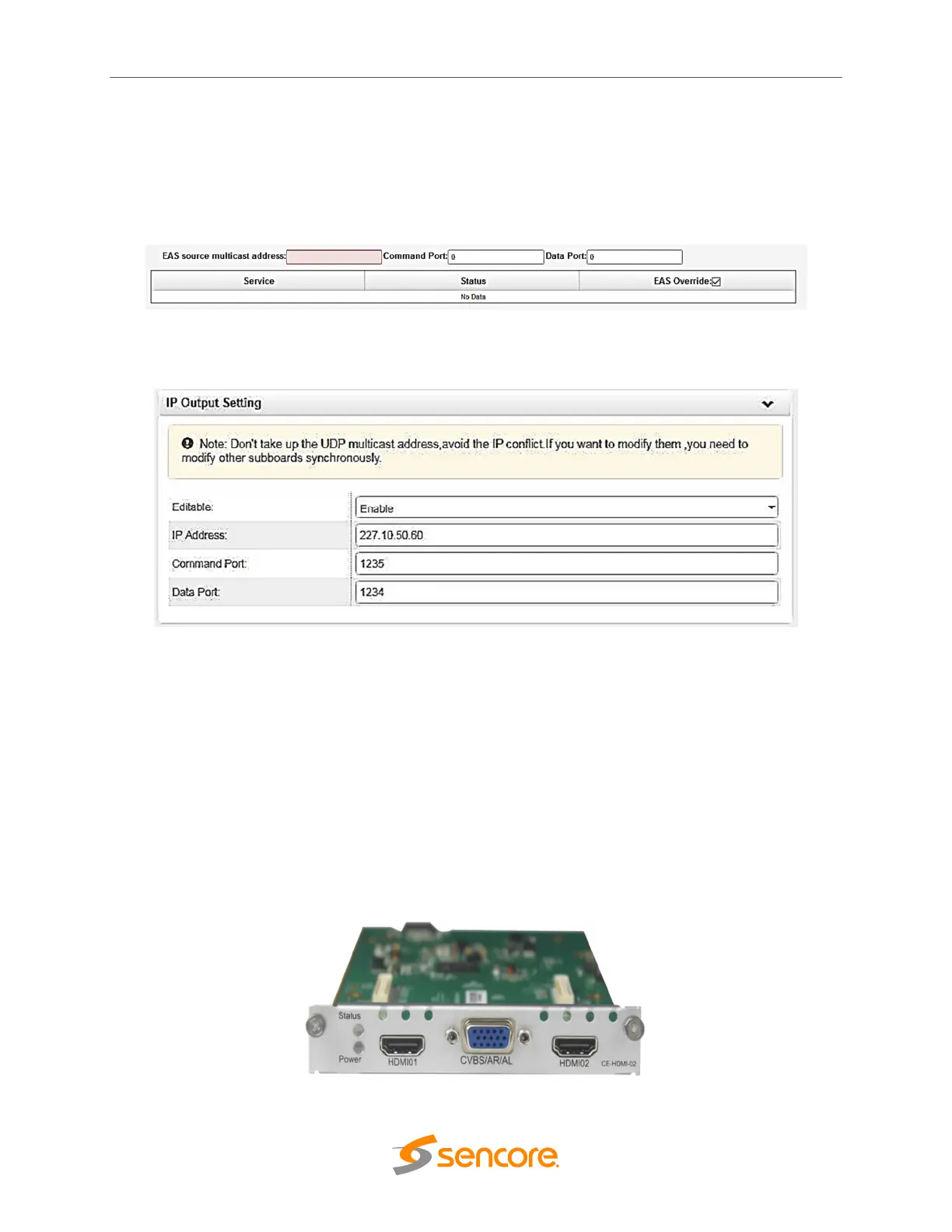

Settings for the EAS feature need to be made on the encoder module so that when the EAS
source is triggered, the Audio and Video from the encoder will be replace by the Audio and Video
from AES module.
EAS will ask you the Source Multicast Address, Command port and Data port. This information
can be seen in the EAS page
HDMI encoder EAS setting
EAS module settings
3.3.8.5 Service Configuration and System Operation
Service Configuration and System Operation please refer to CR2-DVBC-00 at page 34 to 35.
3.3.9 CE2-HDMI-02C
CE2-HDMI-02C is a 2-channel HDMI or component HD encoder, supports H.264 / MPEG-2
HD/SD, MPEG1L2, AAC , AC3 audio, support CC subtitle and analog audio input.
