2.1 Rack Installation
The OmniHub CMP201 is designed to be mounted in a standard 19” rack. It takes 1RU of rack
space. To install it into a rack, please use the following steps:

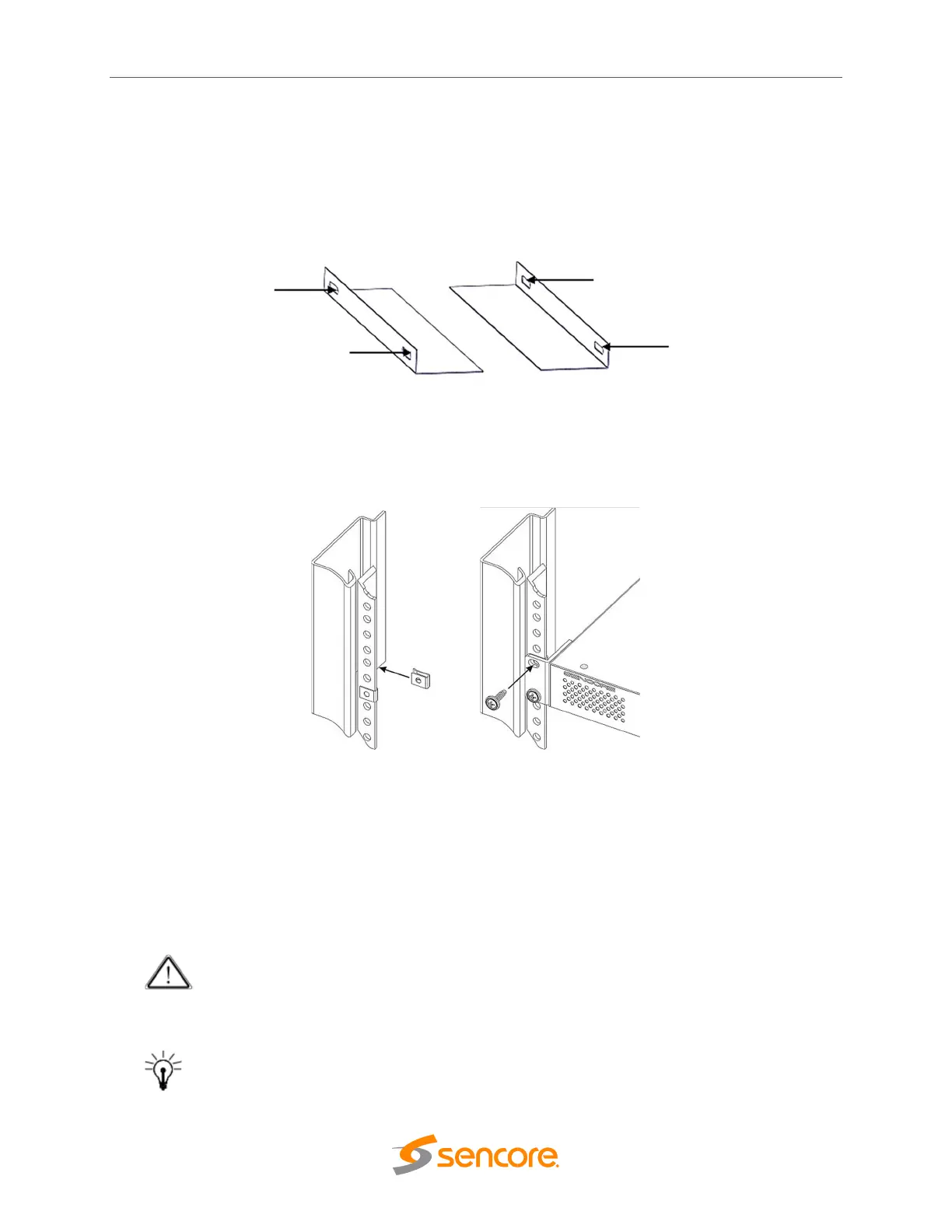

• Determine the desired position in the rack for the CMP201. Make sure that the air intake
on the front of the unit and the exhausts on the back of the unit will not be blocked.
• Install the brackets at desired position if there’s no supporting plate in the rack.
• Insert the rack mount clips into place over the mounting holes in the rack.
• Slide the CMP201 into the position in the rack.
• Secure the chassis to the rack by installing the four supplied screws through the front
mounting holes and tightening.
2.2 AC Power Connection
The Dual Redundant option allows the OmniHub CMP201 to be powered by two separate
supplies either operating 110V or 220V systems. The power supply will automatically detect the
system it is connected to. To hook up the power use the following steps:
• Locate the power cords that are included. Please only use the supplied 3-prong power
connector or one with equal specifications. NEVER tamper with or remove the grounding
pin. This could cause damage to CMP201, personnel, or property.
• Plug the female end of the power cords into the front of the unit.
• Locate a protected outlet to plug the male ends of the power cables into.
When you take the equipment from a cold condition into a much warmer and humid
condition, the equipment should be acclimated to the warm and humidity condition for at least
30 minutes. Powering up a non-acclimated unit may lead to shortcut or other damage to
electronic components.
A professional UPS system is recommended for better performance of your content
distribution system.
