OmniHub CMP201– User Manual
Page 64 of 103

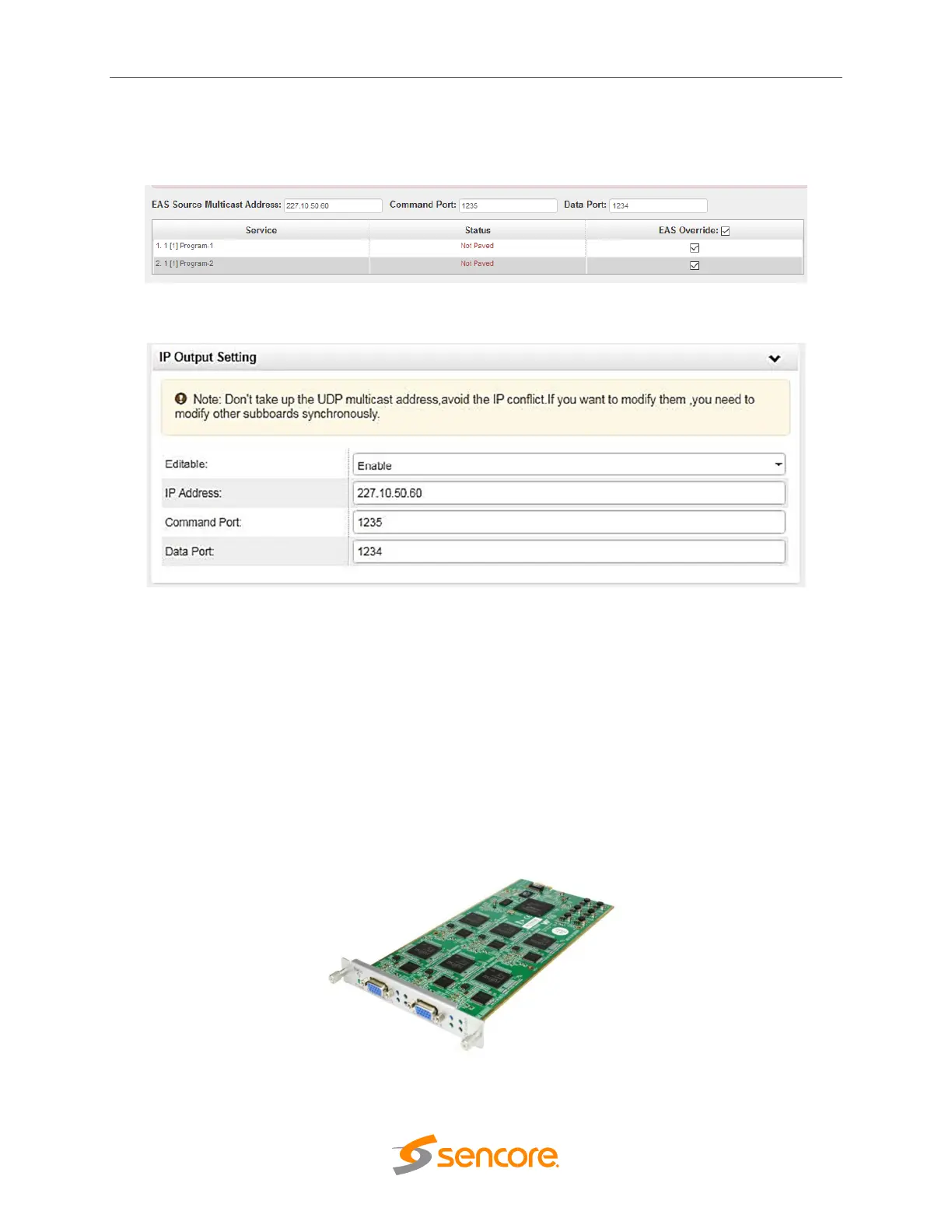

SDI Encoder EAS setting
EAS Module settings
3.3.11.5 Service Configuration and System Operation
Please see CR2-DVBC-00 module at page 34 to 35 for the reference.
3.3.12 CE2-CVBS-00/R01/R01A
CE2-CVBS-00/R01/R01A is the 6/8/16-channel CVBS encoder with 2/2/4 DB15 connectors
each for 3/4/4 channels. It supports H.264/MPEG-2 SD encoding and MPEG1-L2 audio.
CE2-CVBS-00/R01(6/8 CH)
