OmniHub CMP201– User Manual
Page 50 of 103

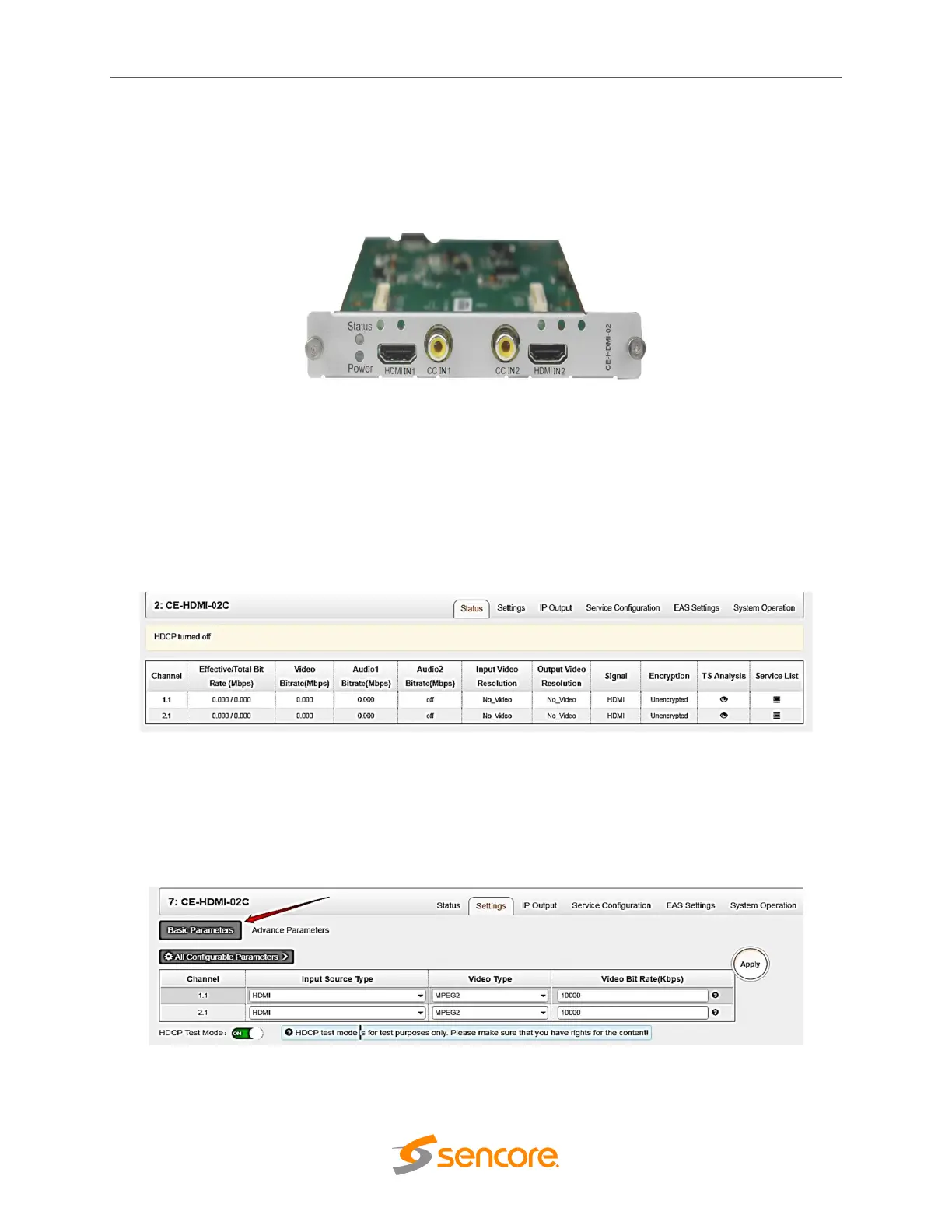

3.3.8 CE2-HDMI-02
CE2-HDMI-02 is a 2-channel HDMI encoder which supports H.264 HD/SD or MPEG-2 HD/SD
encoding with 2-channel RCA for CC input. The module supports MPEG1-L2, AAC and AC3
audio encoding.
3.3.8.1 Module Status
Module Status for HDMI encoder show the Bitrate on each port when HDMI source is
connected. The Status for CE-HDMI-02 is same with CE-HDMI-00. The diferece are the number
of channel shown in the status and some other parameters not in CE-HDMI-00 like Audio2
Bitrate and the input/output video resolution.
3.3.8.2 Module Settings
Click All Configurable Parameters to see all parameters you can modify and check what
specific parameters you want to set and see. Click the Apply button in the right side to make
the change take effect.
