OmniHub CMP201– User Manual
Page 67 of 103
Name
Range
Name
Range
Video Type
H.264
Service Name
Length is 1~16
Video Bitrate (Kbps)
600~6000
Service Provider
Name
Length is 1~16
Video Mode
CBR
Brightness
0~255
GOP Size
1~99
Contrast
0~255
Profile
Main/High
Saturation
0~255
Video PID
32~8190
Chrominance
0~100
Video Format
AUTO/NTSC/PAL
PMT PID
32~8190
Audio Encoder Details
Range
Audio Encoder
Details
Range
Encoding Type
MPEG1_Layer2
Audio Sampling Bit
rate (KHz)
48
Audio Mode
Stereo
Audio PID
32~8190
Encoding Bitrate
(Kbps)
32~192
Volume (dB)
-20~20
Delay (ms)
-2000~2000
3.3.12.2 Service Configuration and System Operation
Please see CR2-DVBC-00 module at page 34 to 35 for the reference.
Modulation Modules

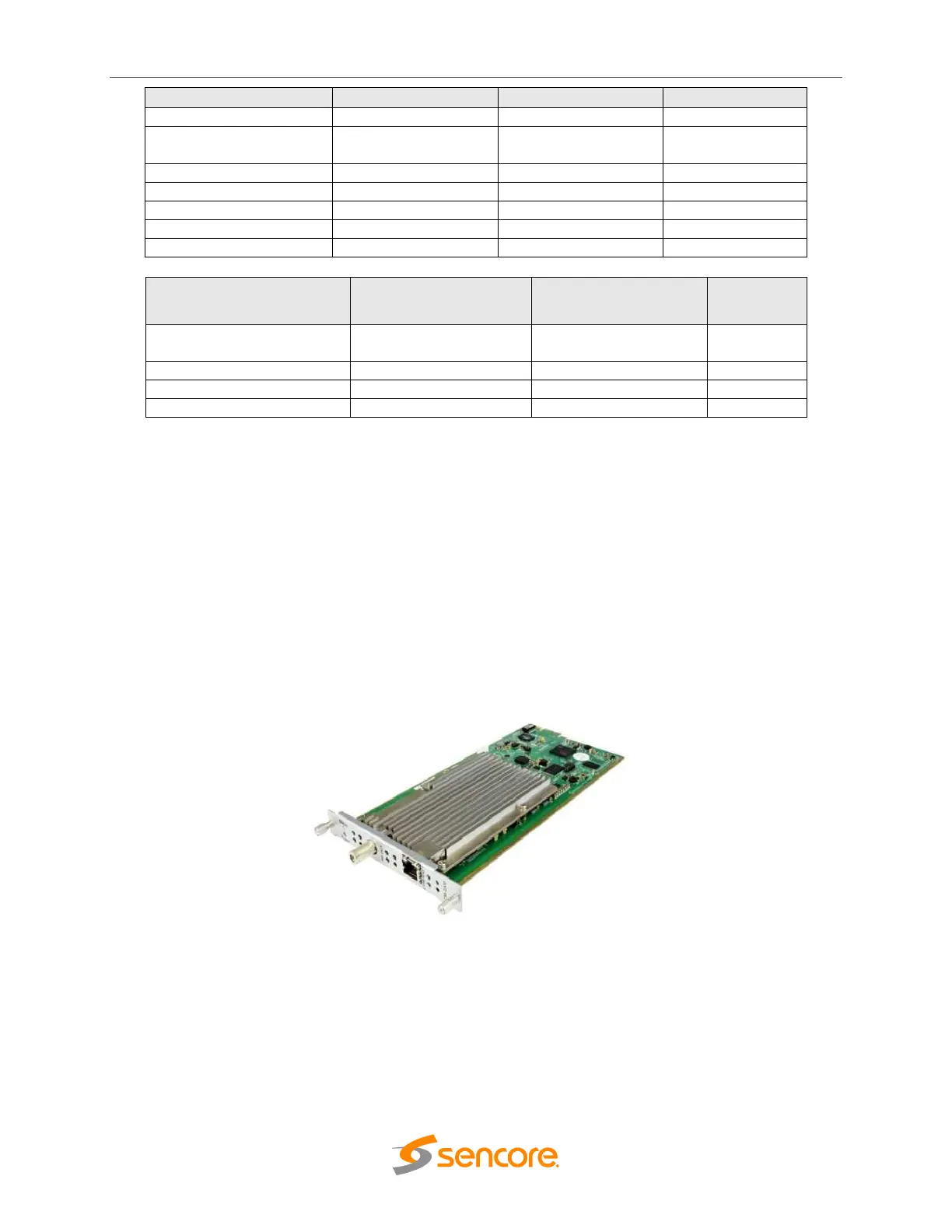

3.3.13 CM2-QAMA-00/R00
CM2-QAM-00 / R00 / R01 / R01A module supports modulating 16 non-adjacent channels with 1
RF port and 1 RJ45 network port that is reserved for future use. QAM A and B share the same
Hardware but Different Software. If you need to change the Module from A to B. Please contact
your local support for assistance.
3.3.13.1 Module Status
For the Status of QAMA-00. This show the Total Bitrate of a TS and the Effective bitrate, with
this, you can monitor if the output programs will overflow on a certain TS. Since the Modulator
produce a lot of heat, the Module is also designed to automatically power off when the
temperature is higher than 74 degree Celsius (165.2-degree Fahrenheit).
